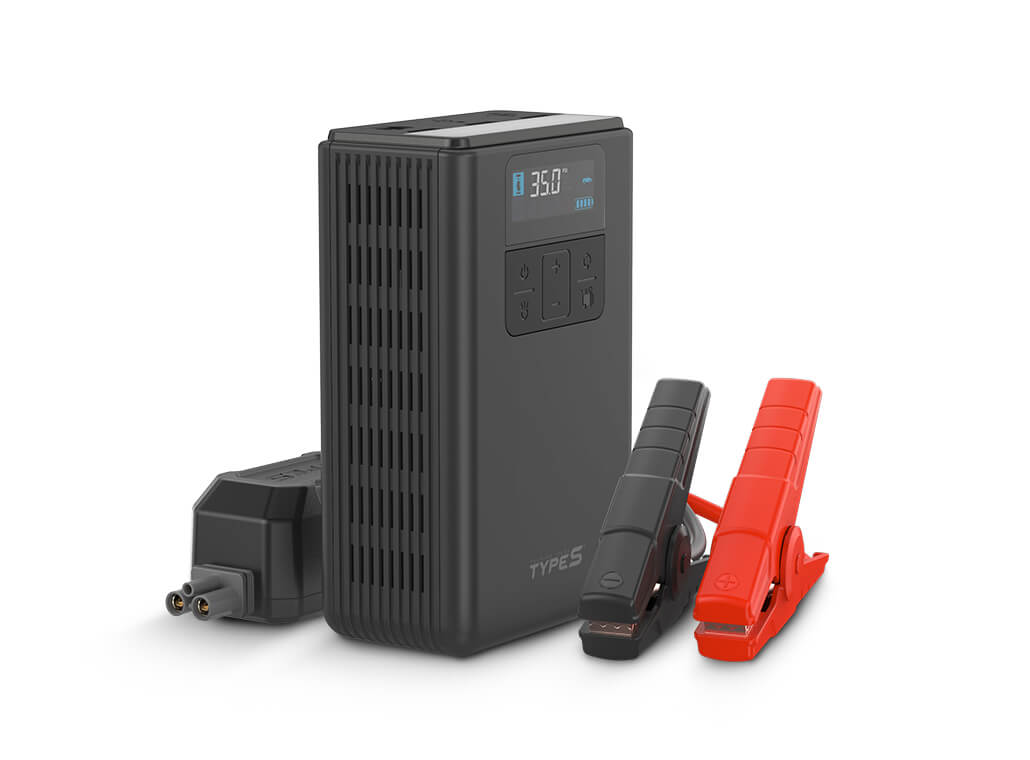

Dynamic Flex Series - DF20
Don't let a dead battery or a flat tire put a dent in your plans. With the TYPE S Dynamic Flex Series - DF20 - 12V TYPE S Tire Inflator and Jump Starter combo by your side, you're in control of your journey. It can save your day (or night) in more ways than one. Equipped with an ultra-safe and powerful 8,000mAh LiFePO4 (lithium-iron-phosphate) built-in battery, this tire inflator/jump starter combo can not only jump start your car, but it can also inflate your flat to get you quickly back on the road. Jump starting has never been easier; follow the step-by-step instructions on the Intelli-Step LCD Jump Guide screen. The integrated dual-color LED floodlight feature strobe and hazard modes in 2 colors, bright white or emergency red. This portable power bank will also fast-charge USB-C and USB-A mobile devices. TYPE S jump starters are the ultimate roadside assistant.

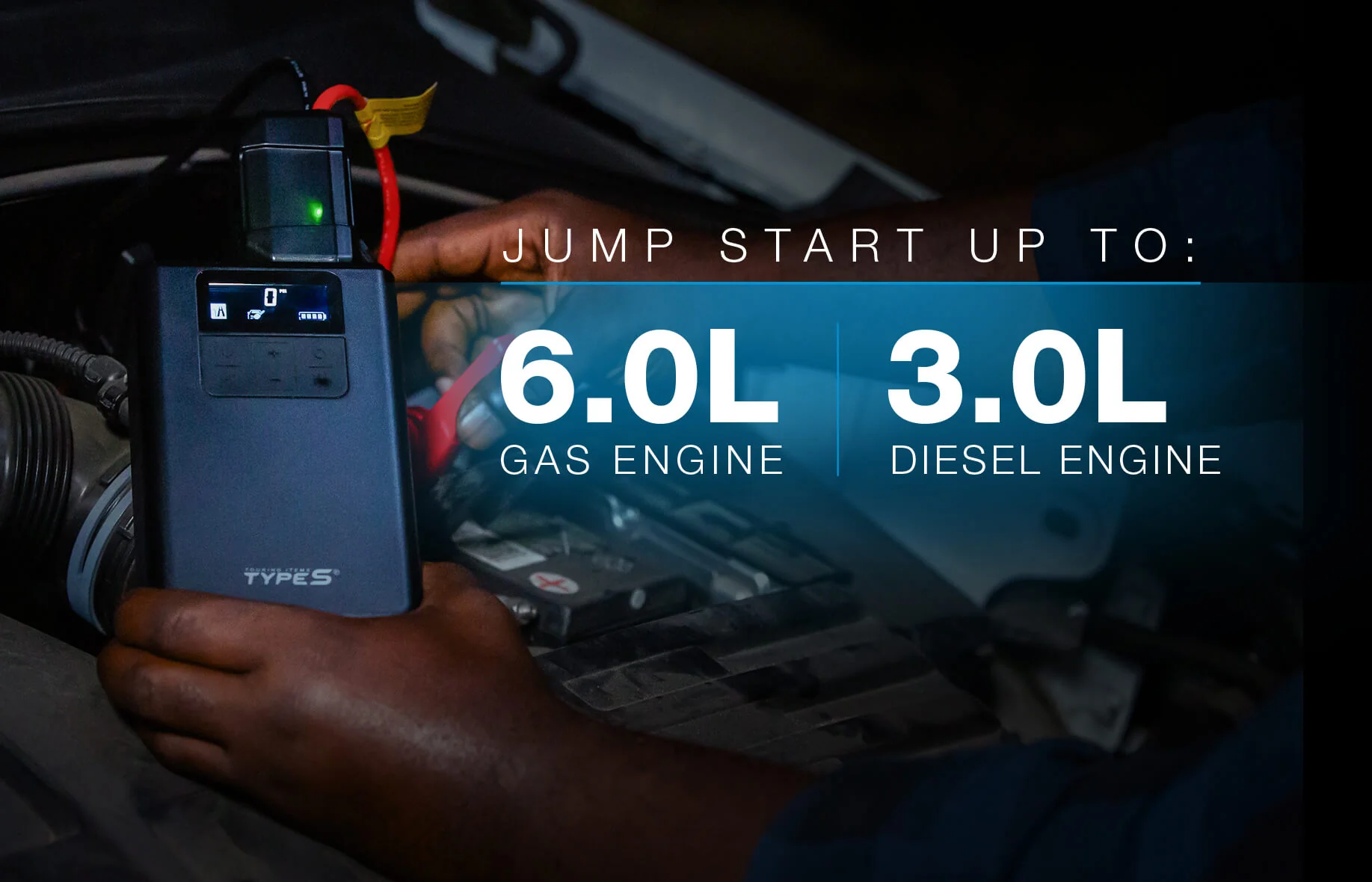

Jump start up to 6.0L gas or 3.0L diesel engines.

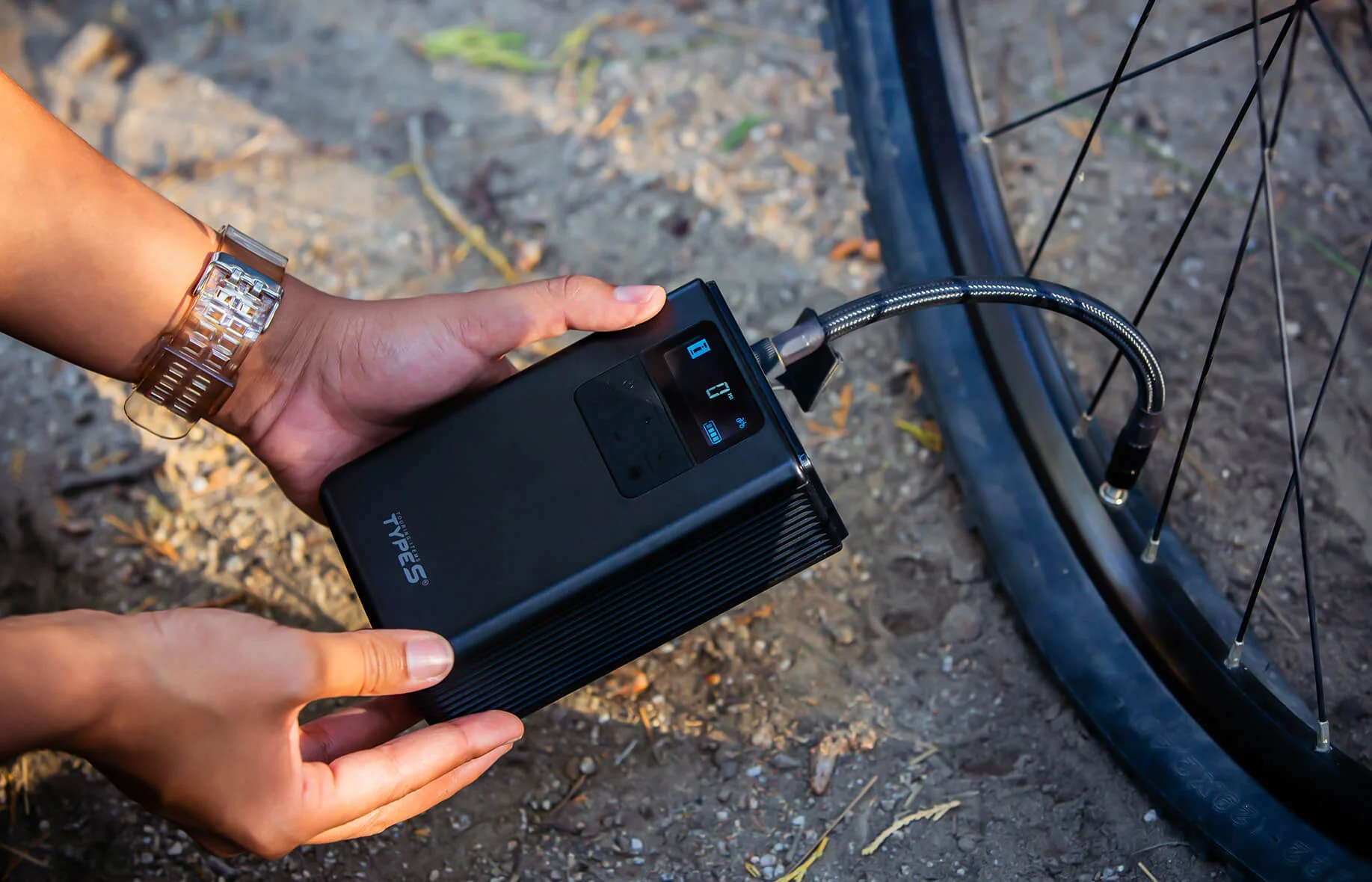

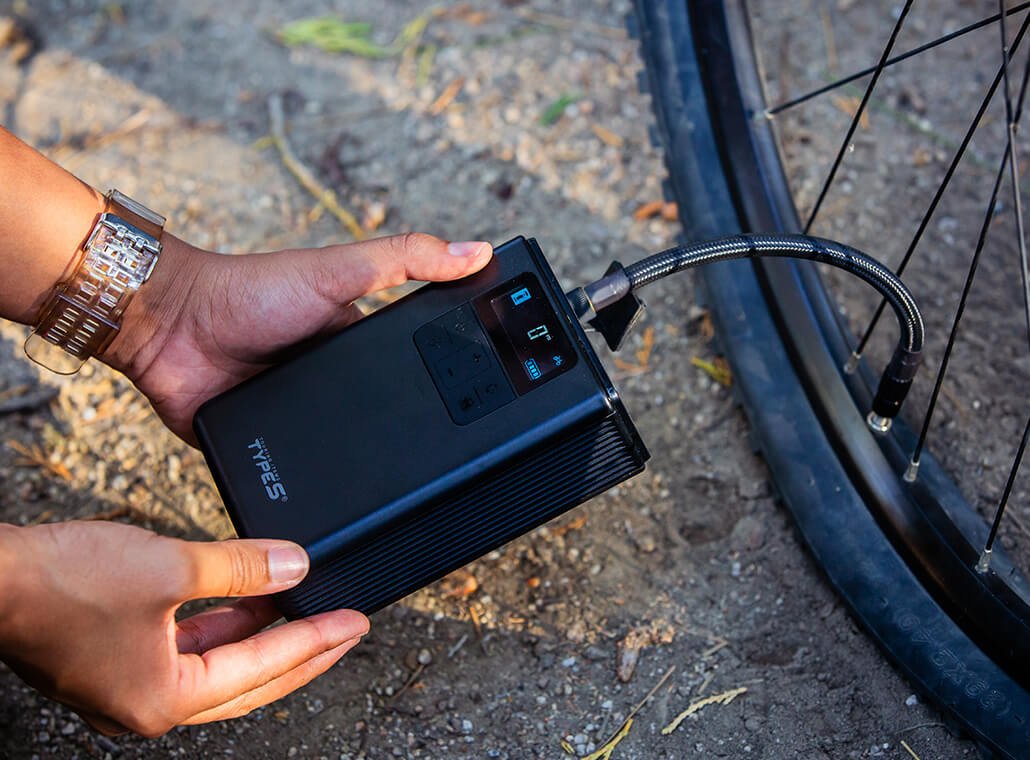

Inflate vehicle tires, bike tires, balls, and other inflatables like mattresses and toys. Includes air hose, ball needle, inflatables nozzle/adapter, and presta bike valve adapter.
Jump start up to 6.0L gas or 3.0L diesel engines.
Inflate vehicle tires, bike tires, balls, and other inflatables like mattresses and toys. Includes air hose, ball needle, inflatables nozzle/adapter, and presta bike valve adapter.
See real-time step-by-step jump-starting instructions and safety notifications on the integrated LCD screen. Multiple languages available.
See real-time step-by-step jump-starting instructions and safety notifications on the integrated LCD screen. Multiple languages available.

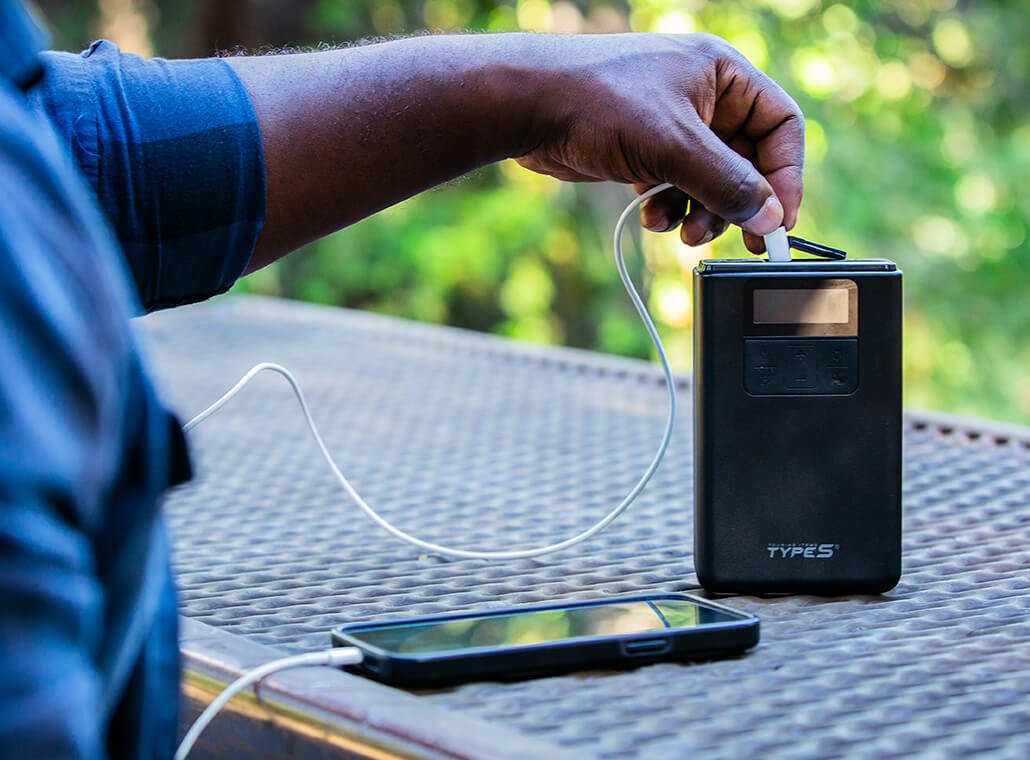

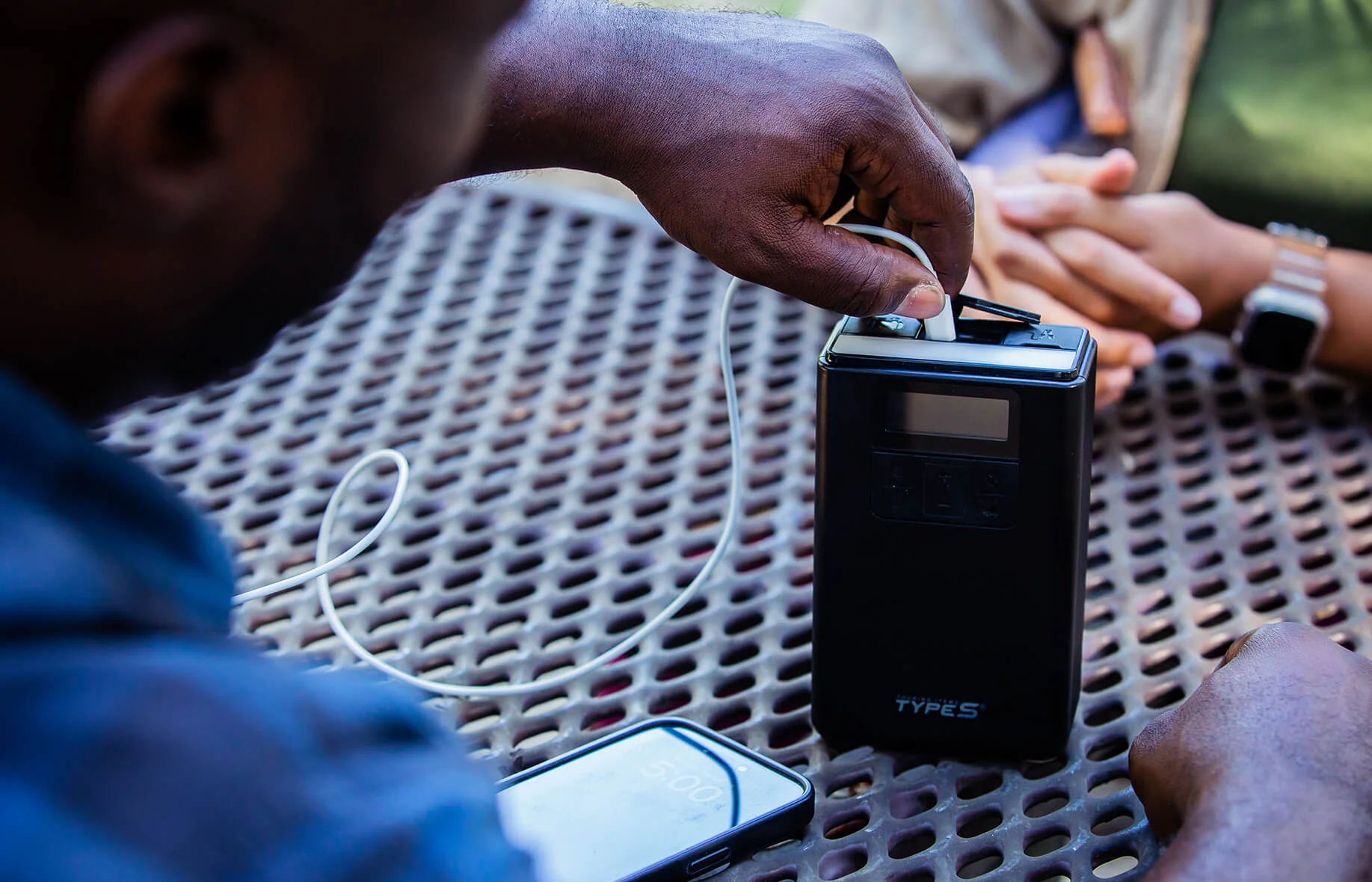

The powerful 8,000 mAh power bank fast-charges USB-A and USB-C powered mobile devices, including laptops.
The powerful 8,000 mAh power bank fast-charges USB-A and USB-C powered mobile devices, including laptops.

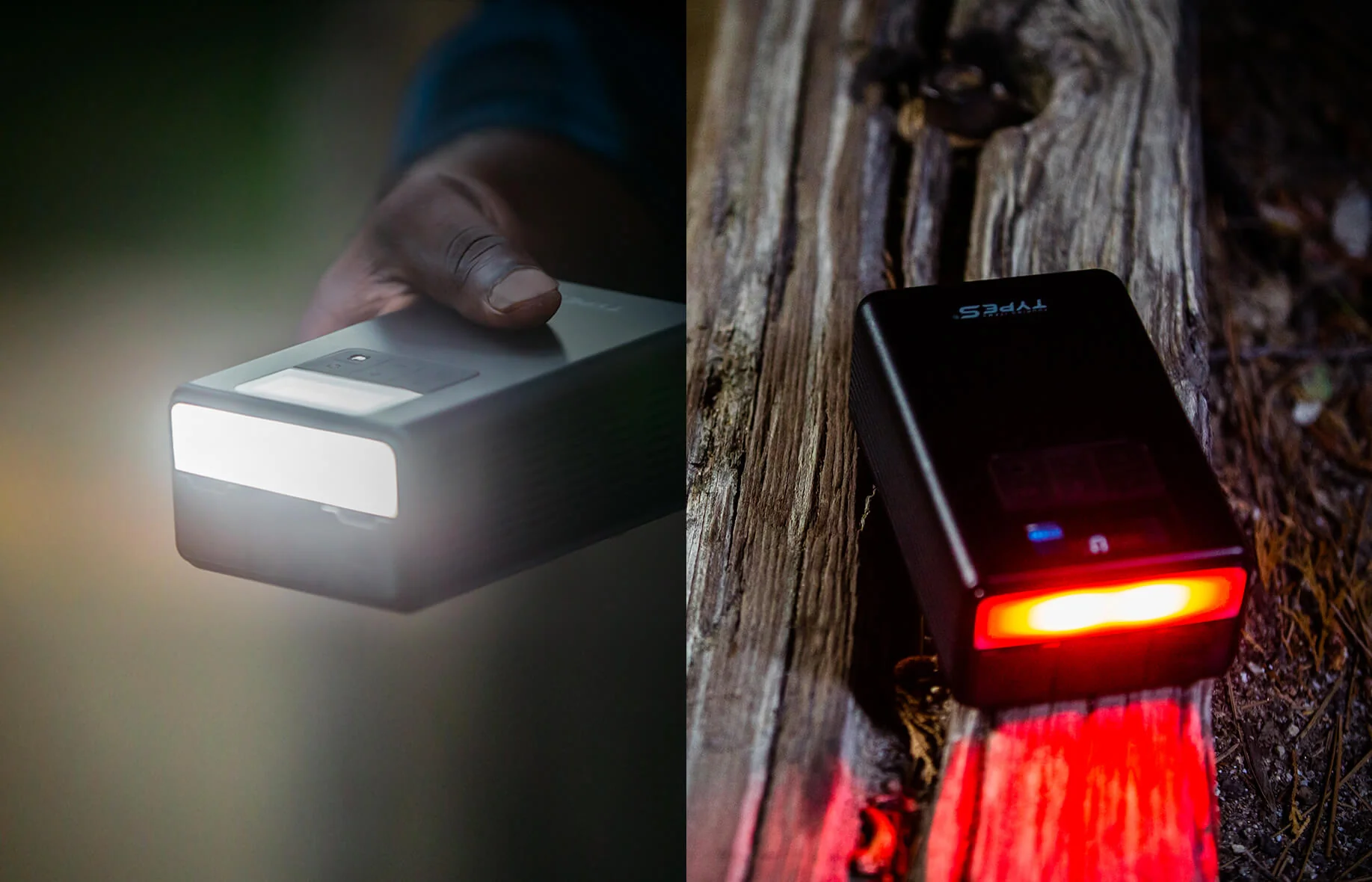

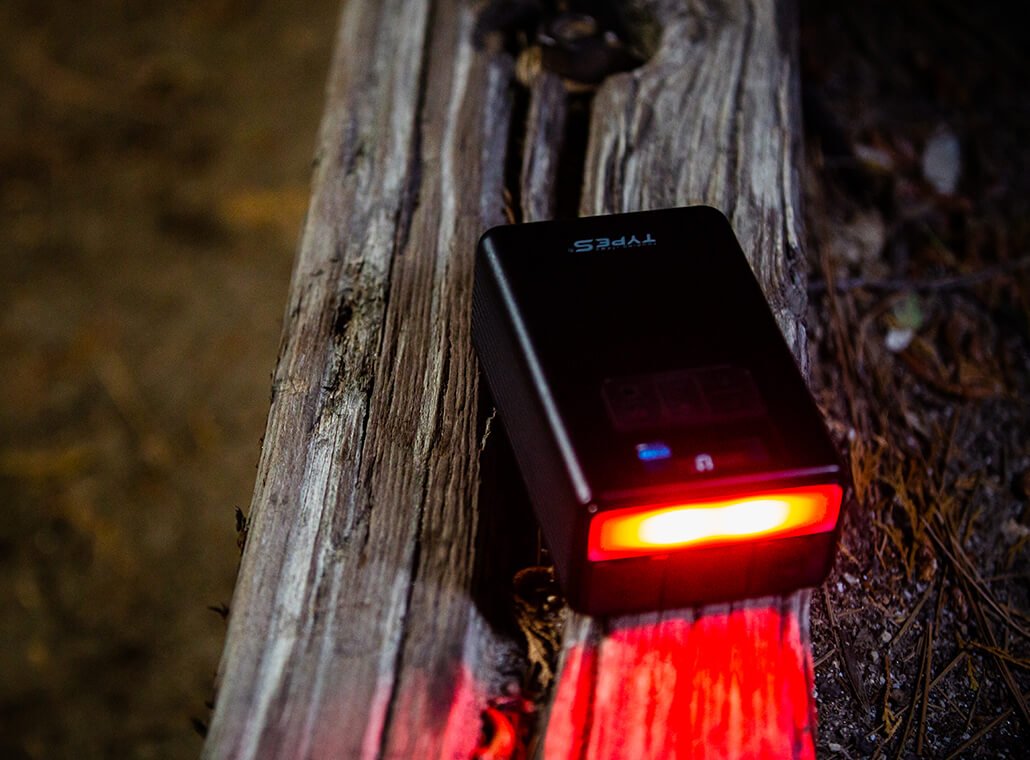

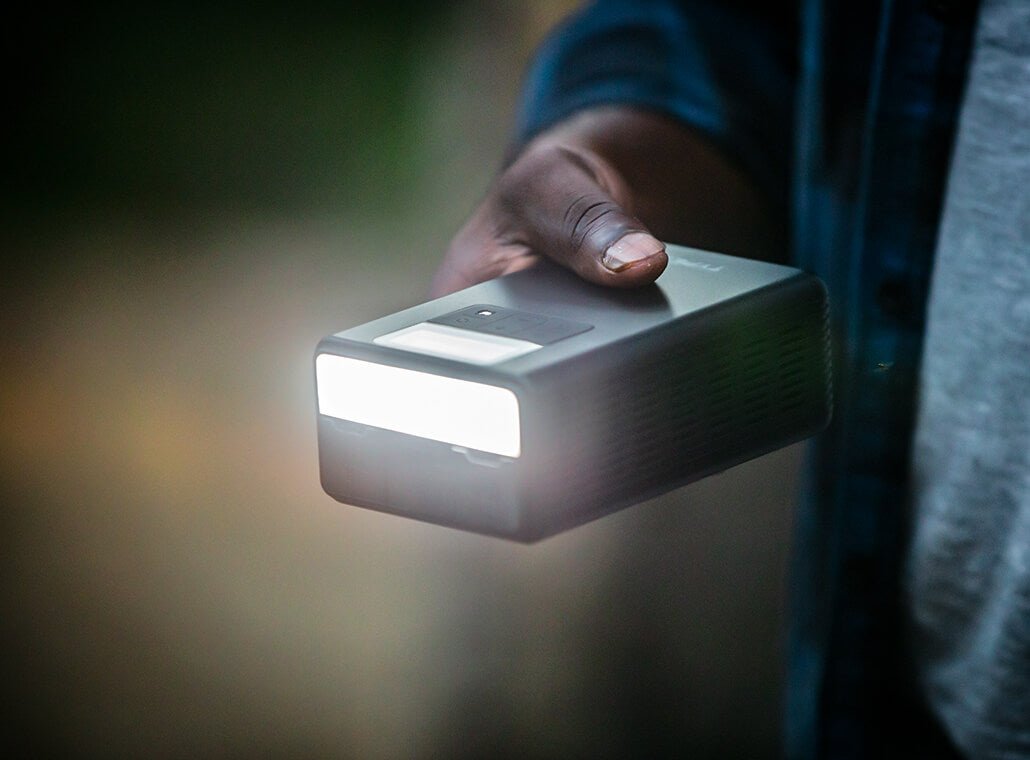

Breakdowns are never convenient, especially at night. The multi-mode LED floodlight will allows you to assess situations, make repairs, or signal for help with the strobe, or hazard/emergency S.O.S. light modes.
Breakdowns are never convenient, especially at night. The multi-mode LED floodlight will allows you to assess situations, make repairs, or signal for help with the strobe, or hazard/emergency S.O.S. light modes.
FAQ
How long does it take to charge AC533150?
The unit can be fully recharged and ready for jump-starting or charging other devices in 4-5 hours by using the included USB-C charging cable and 5V 2A USB charger. Or
The unit can be fully recharged and ready for jump-starting or charging other devices in 1 hour by using the USB-C cable and 45W or above Power Delivery (PD) charger (charger not included).
What’s the battery capacity of this model?
The battery capacity of this model is 25.6 Wh.
Can I leave AC533150 being plugged in overnight?
TYPE S AC533150 has a built-in protection circuit to prevent overcharging. However, it is not recommended to leave anything on a charge unattended. But it will be fine if it is left on the charger overnight or for the weekend before you take it off.
How long the battery will last?
This model can hold 70% of its rated capacity for up to one year. For optimal performance, we recommend to fully charge the jump starter upon receipt. Check battery status periodically and recharge it every two to three months and after every use to maintain the efficiency and to prolong the battery life.
How to boost a dead car battery with AC533150?

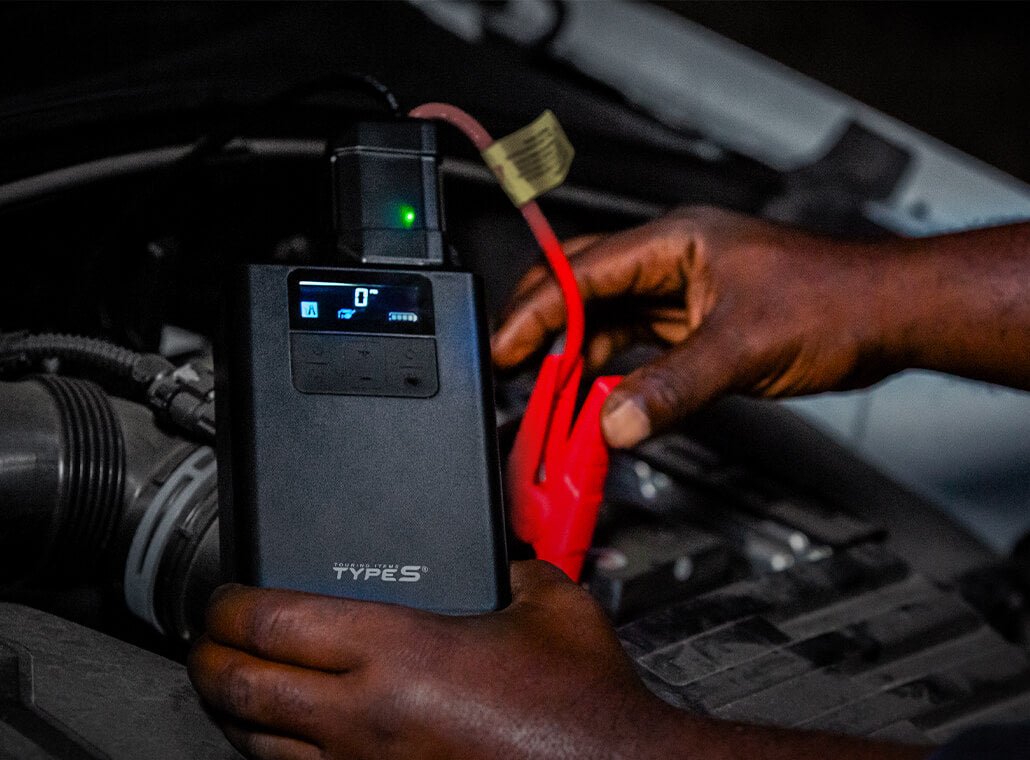

The jump start logo pops up on the LCD screen when the clamp cable is plugged into AC533150. The step-by-step jump logo guides you through the jump-starting process.
How to turn on the LED warning light or flashlight?
Press LED LIGHT button twice to turn on the LED warning light or press and hold the MODE button for 3 seconds to turn on the flashlight.
How much PSI do I need to fill the tire?
Each Vehicle is different, information should be provided inside the car door. Normally it is around 32-36 PSI, depends on the the weight of vehicle. Also, you can find suggested PSI reference in user manual.
How to check for slow punctures and leaks?
Spray a soap and water solution on the tire and fitting connection, if bubbles appears in the tire's surface while inflating that’s mean is a leak.
Why does the Bike mode range is only 30-65 PSI?
The Bike mode is for Schrader valve so the higest setting pressure is 65PSI. If you want to inflate bike tire with presta valve, please use Manual mode and its up to 150PSI.
How do I reset the pressure value on each mode?
Press the changing mode button and inflation button at the same time for 3s, then all numbers will be back to default setting values.
Product specification
3.2 x 5.9 x 2.7 in (81 x 150 x 68mm)
1.65 lbs / 748 g
Lithium-iron phosphate (LiFePO4)
25.6 Wh / 8000mAh @3.2V
Up to 500A
6.0L Gas / 3.0L Diesel
150PSI (Max.)
Intelli-Step Jump Guide & Inflator Modes
1
1
5V - 2.4A / 9V - 2A / 12V - 1.5A
5V - 3A / 9V - 3A / 12V - 3A / 15V - 3A / 20V - 2.25A
5V - 3A / 9V - 3A / 12V - 3A / 15V - 3A / 20V - 2.25A
48W (USB-C + USB-A)
Over-voltage & Over-current
Over-discharging & Short-Circuit
Floodlight, Strobe & Hazard/Emergency Modes
Not IP-rated
-4F ~ 93F (-20C ~ 34C)
-4F ~ 104F (-20C ~ 40C) Avg. Temp.
32F ~ 93F (0C ~ 34C)
2.5 ft. / .75 m
8 AWG
7.87 in. / 20 cm
8 AWG
9.84 in. / 25 cm
4-5 hours (with included charging cable and 12V car charger) / 1 Hour (with 45W USB-C input, charger not included)
AC533150-1 (UPC 840005331507)

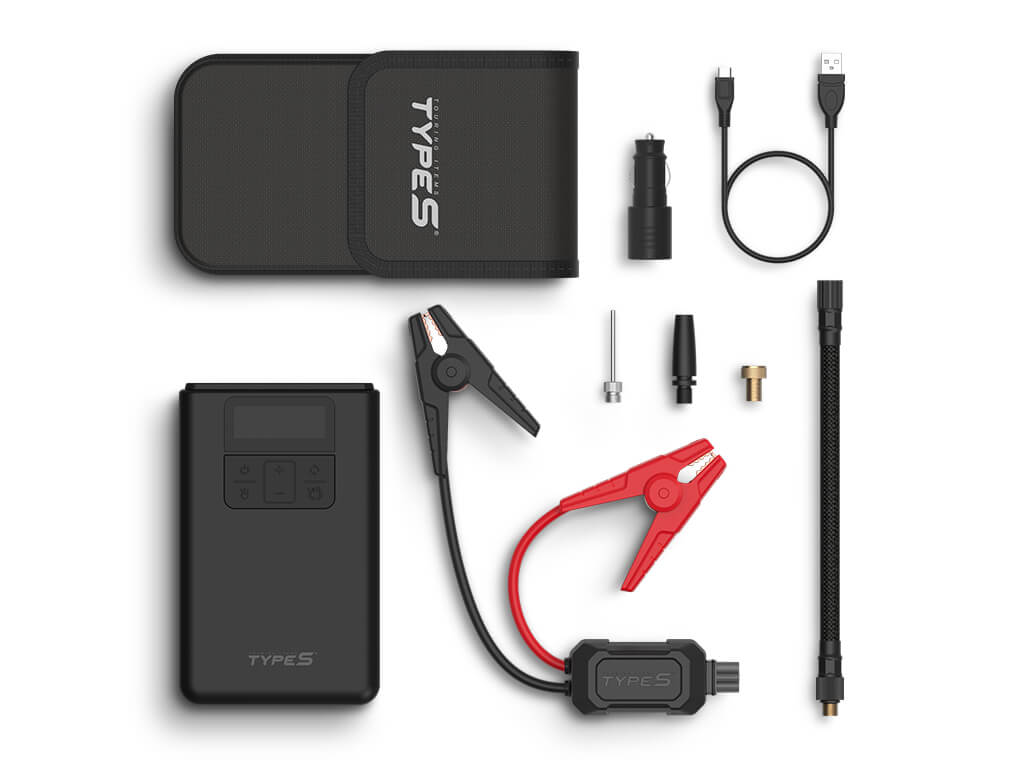

In the Box
- 1 x Jump Starter & Inflator
- 1 x Safe & Smart Jumper Cables
- 1 x Air Hose
- 1 x Ball Needle
- 1 x Inflatables Nozzle/Adapter
- 1 x Bike Presta (French) Valve Adapter
- 1 x 12V USB-A Car Charger
- 1 x USB-A to USB-C Charging Cable
- 1 x Carry Pouch
- 1 x User Manual
