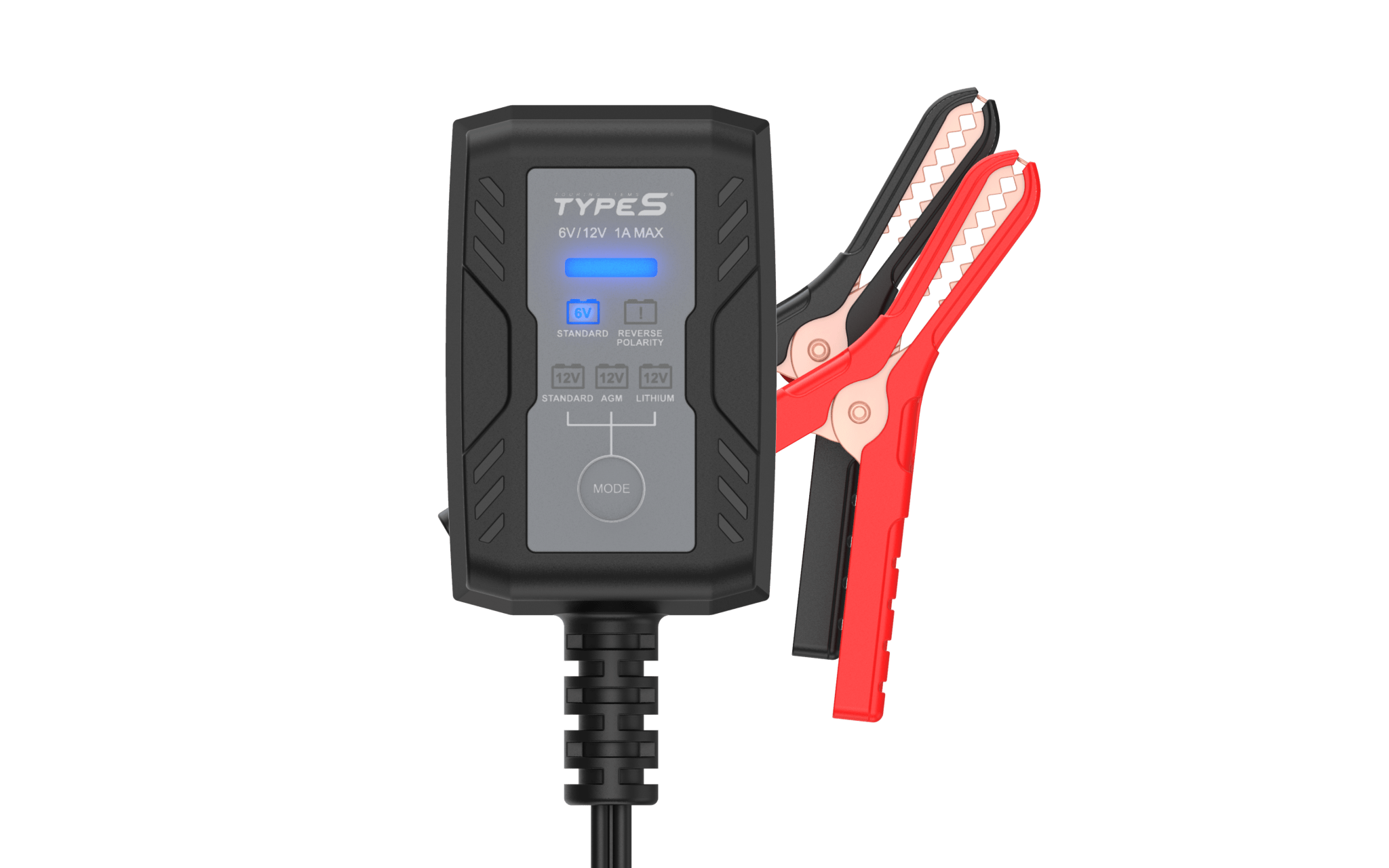

TYPE S 1A Battery Charger and Maintainer
Charge and Maintain: UTV/ATVs, personal watercraft, lawn mowers, or motorcycles Maintains: Cars, SUVs and boats. Maintains: Cars, SUVs and boats

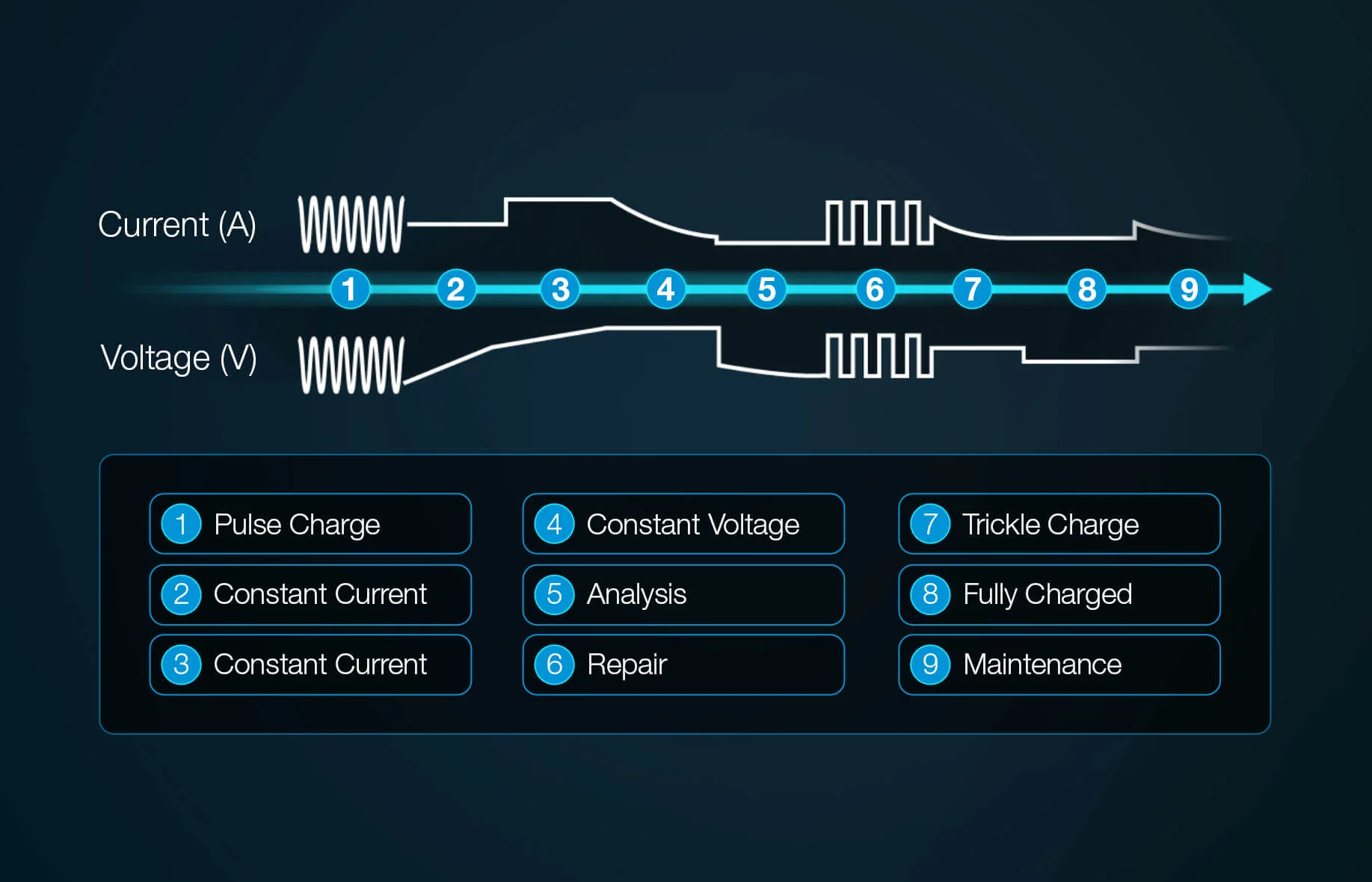

An integrated smart microprocessor performs battery charging and maintenance in 9 intelligent steps that prolong battery life. In maintenance mode, the repair stage attempts to remove sulfation build-up inside lead-acid batteries with pulse currents.
TYPE S battery chargers and maintainers are designed with safe and smart protections including: reverse polarity protection, short-circuit protection, overcharge & over voltage protection, and high-temperature protection.

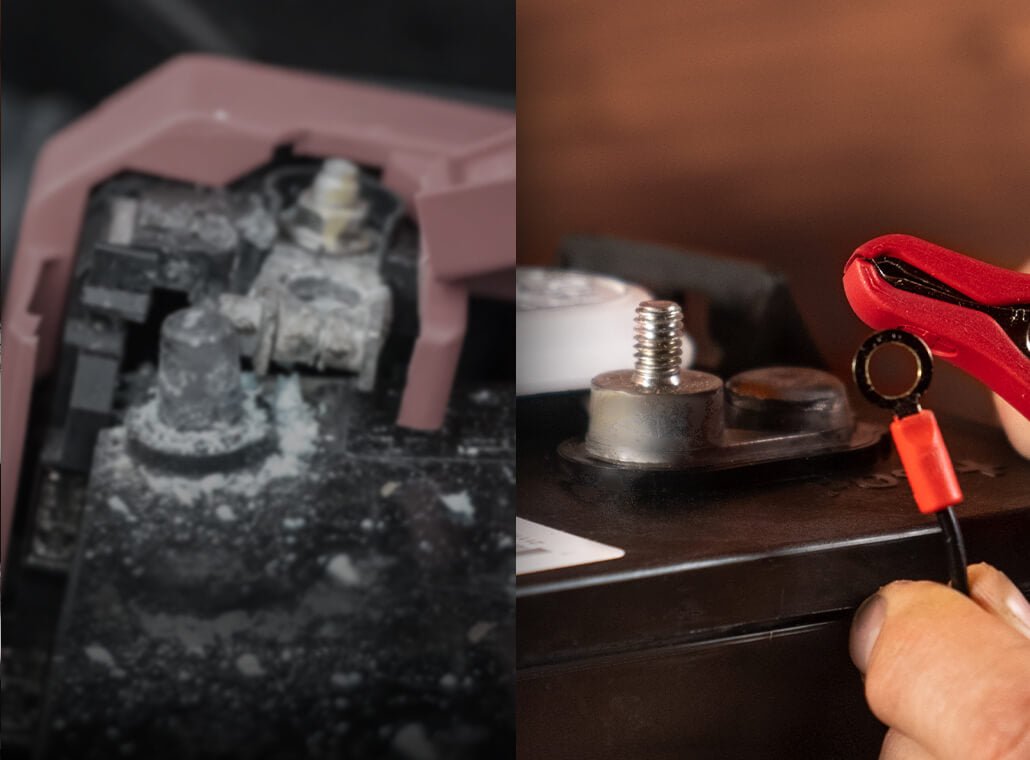

Battery chargers and maintainers can prevent lead-acid battery sulfication. Sulfication occurs when a battery us discharged and recharged. It also occurs if a fully charged battery is stored for a period of time. Sulfication will cause loss of cranking power and increased charge times and ultimately shorten battery life. TYPE S battery chargers and maintainers fight sulfication to preserve vehicle battery life.
The battery charger and maintainers can automatically detect and in some cases recover dead batteries that have as little as 0.5V. Batteries with 11.9V or below are considered dead.
Charge and Maintain: UTV/ATVs, personal watercraft, lawn mowers, or motorcycles Maintains: Cars, SUVs and boats. Maintains: Cars, SUVs and boats
An integrated smart microprocessor performs battery charging and maintenance in 9 intelligent steps that prolong battery life. In maintenance mode, the repair stage attempts to remove sulfation build-up inside lead-acid batteries with pulse currents.
TYPE S battery chargers and maintainers are designed with safe and smart protections including: reverse polarity protection, short-circuit protection, overcharge & over voltage protection, and high-temperature protection.

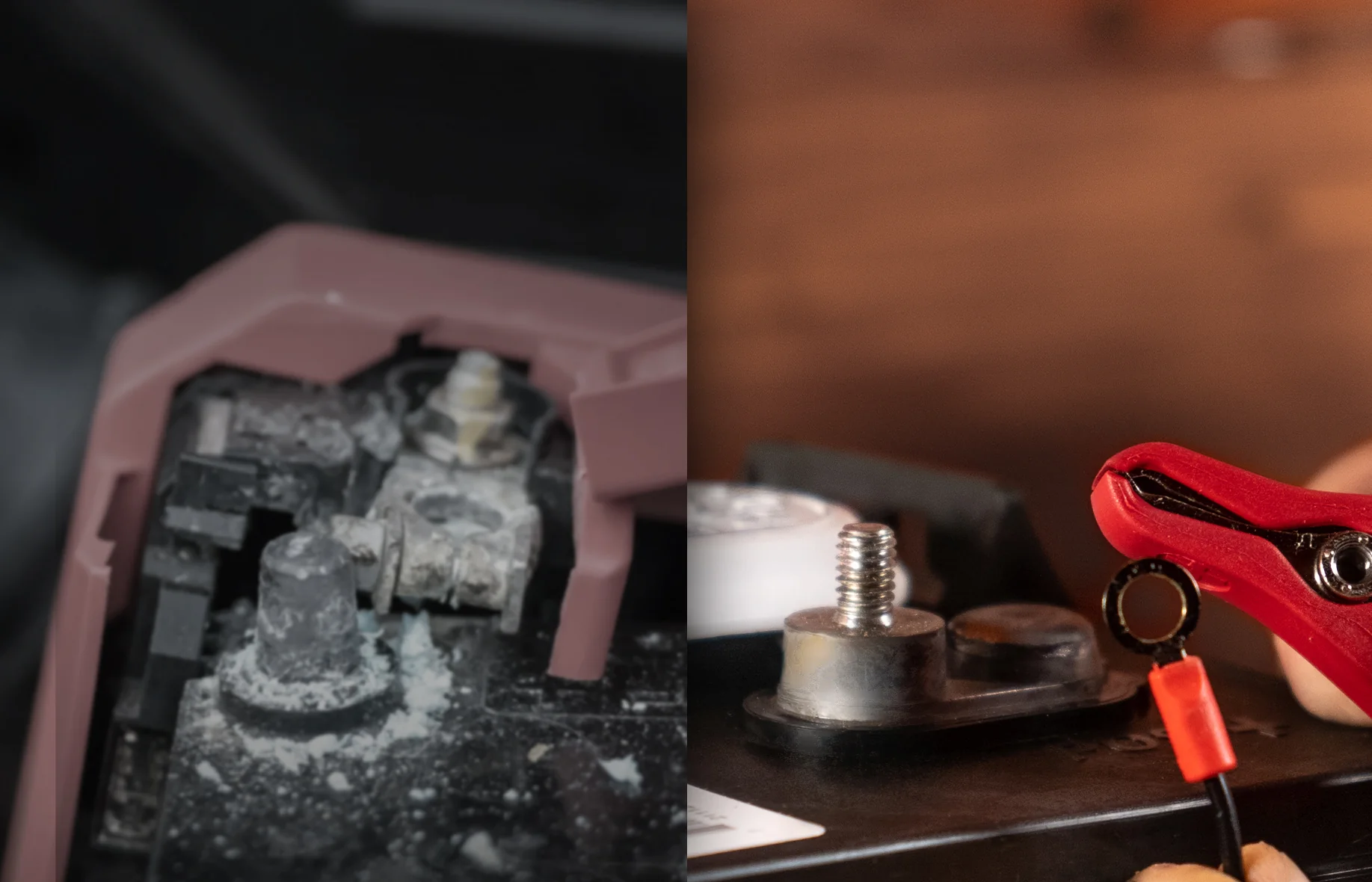

Battery chargers and maintainers can prevent lead-acid battery sulfication. Sulfication occurs when a battery us discharged and recharged. It also occurs if a fully charged battery is stored for a period of time. Sulfication will cause loss of cranking power and increased charge times and ultimately shorten battery life. TYPE S battery chargers and maintainers fight sulfication to preserve vehicle battery life.
The battery charger and maintainers can automatically detect and in some cases recover dead batteries that have as little as 0.5V. Batteries with 11.9V or below are considered dead.
FAQ
Which battery terminal do I connect the black clamp to?
Connect the black clamp to the negative terminal.
What types of vehicle does this charger compatible with?
This unit charges and maintains cars, classic cars, motorcycles, lawnmowers, ATVs, tractors, trucks, SUVs, boats, sport cars and more as long as the vehicle uses 6V or 12V battery.
What is the battery capacity range supported?
Up to 20Ah, it also maintains all battery sizes.
How do I use this unit for semi-permanent charging?
This unit comes with ring terminals with standard SAE connector. By swapping the detachable clamps with ring terminals, the unit can be used for semi-permanent charging.
Can I charge very low voltage battery with this unit?
Yes, but it can only charge with above 3.75V battery
Product specification
Length : 1.6 in / 41.2 mm
Width : 2.6 in / 65.2 mm
Height : 2.1 in / 54 mm
0.63 lb / 286 g
100-120VAC, 50-60Hz, 22W
6.3VDC, 12.5VDC
1A (6.3VDC), 1A (12.5VDC)
<5mA
3.75V
0ºC ~ 40ºC / 32ºF ~ 104ºF
-20ºC ~ 60ºC / -4ºF ~ 140ºF
Standard (Wet Cell / Flooded, SLA & Maintenance Free)
AGM, GEL, Lithium-ion (incl. LiFePO4)
Ring Terminals include 10A Fuse
SAE
Up to 20 Ah, maintains all battery sizes
AC532574-1 (UPC 840005325742)
In the Box
- 1 x 1A Battery Charger and Maintainer
- 1 x Battery Clamps
- 1 x Ring Terminals
- 1 x User Manual
