TYPE S 120" Smart LED Exterior Trim Lighting Kit

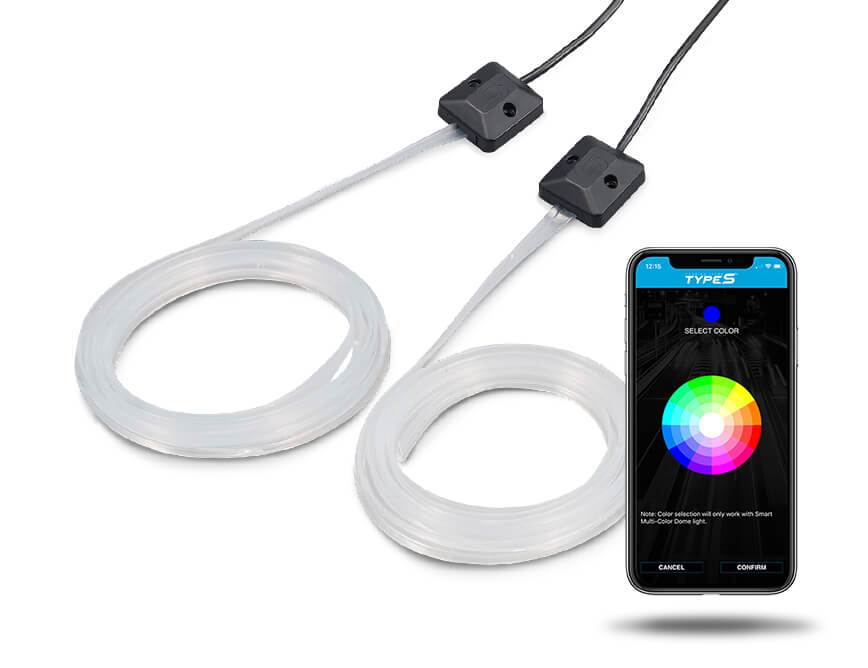

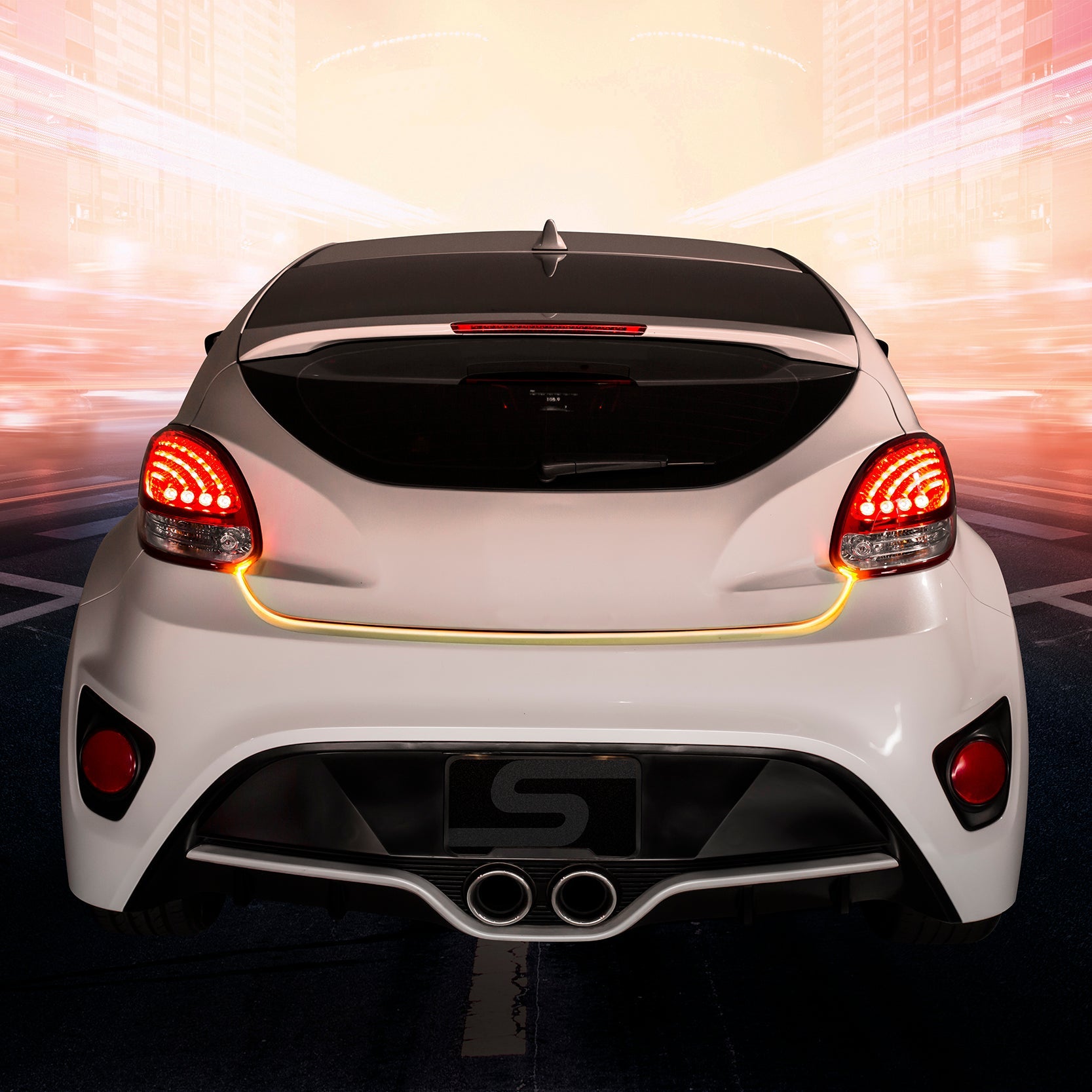

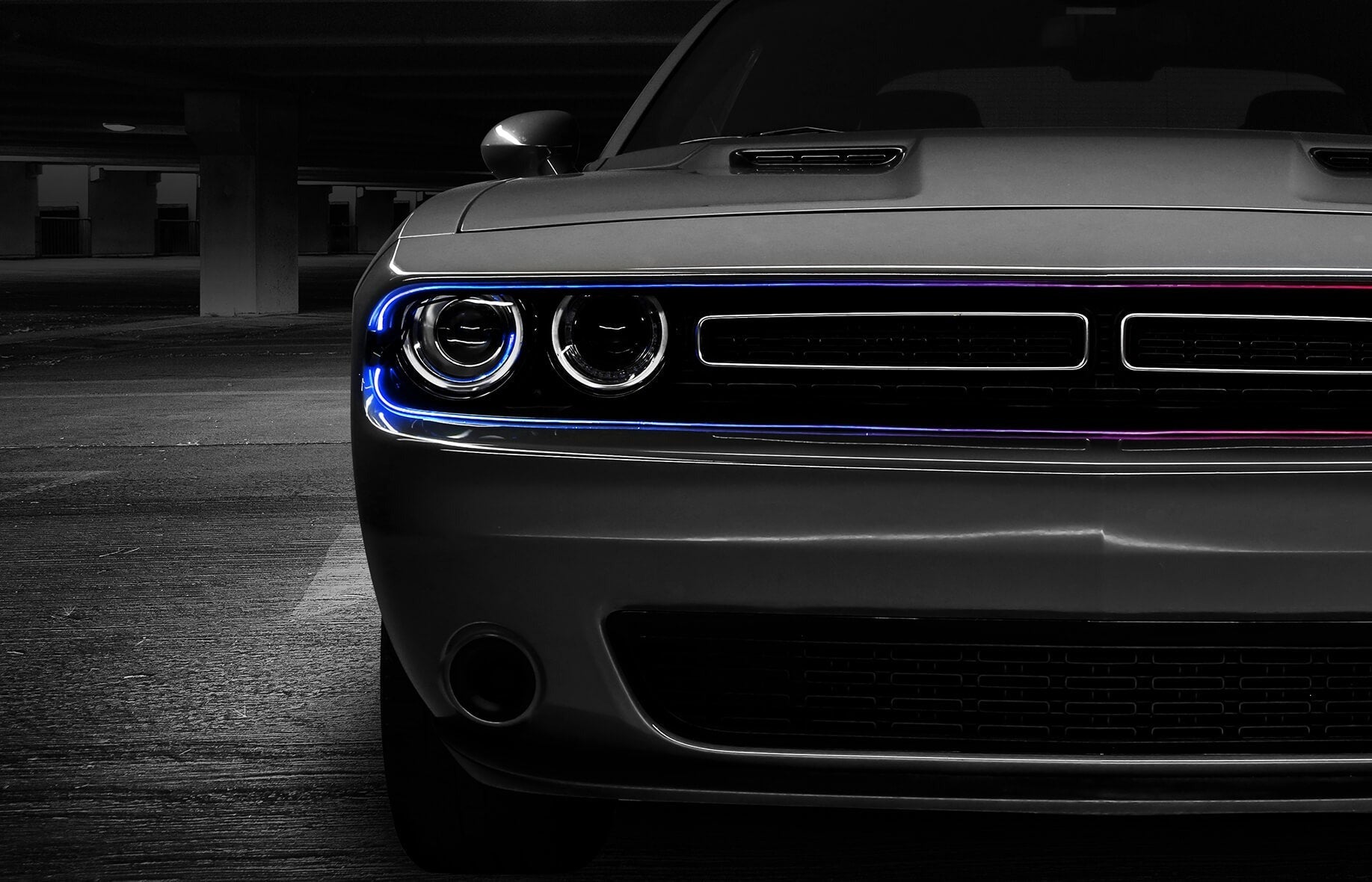

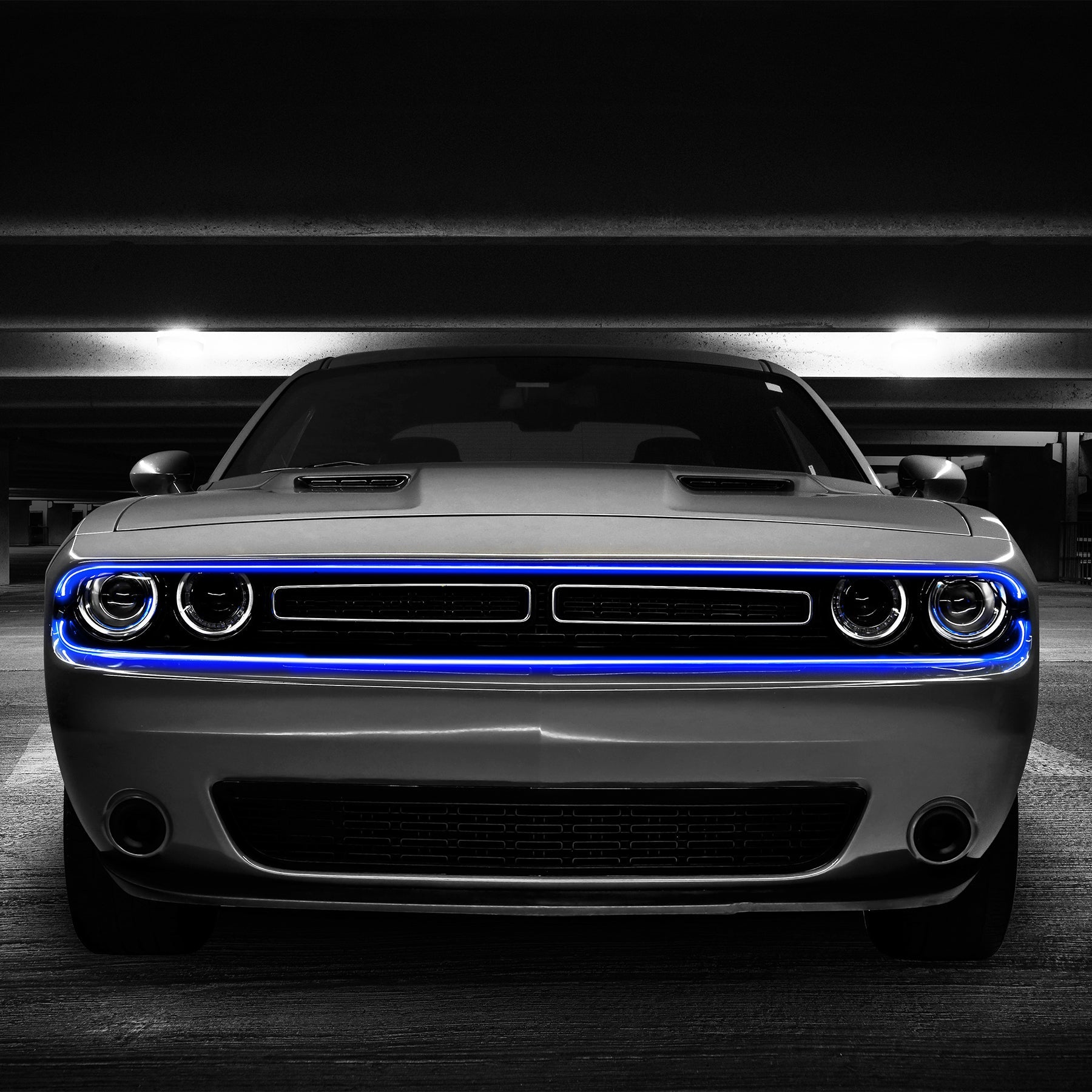

Add some character to your ride with the Smart LED Exterior Trim Lighting Kit from TYPE S, featuring two 60" multicolor LED light strips and a smart hub controller for a custom lighting experience using the TYPE S LED app.

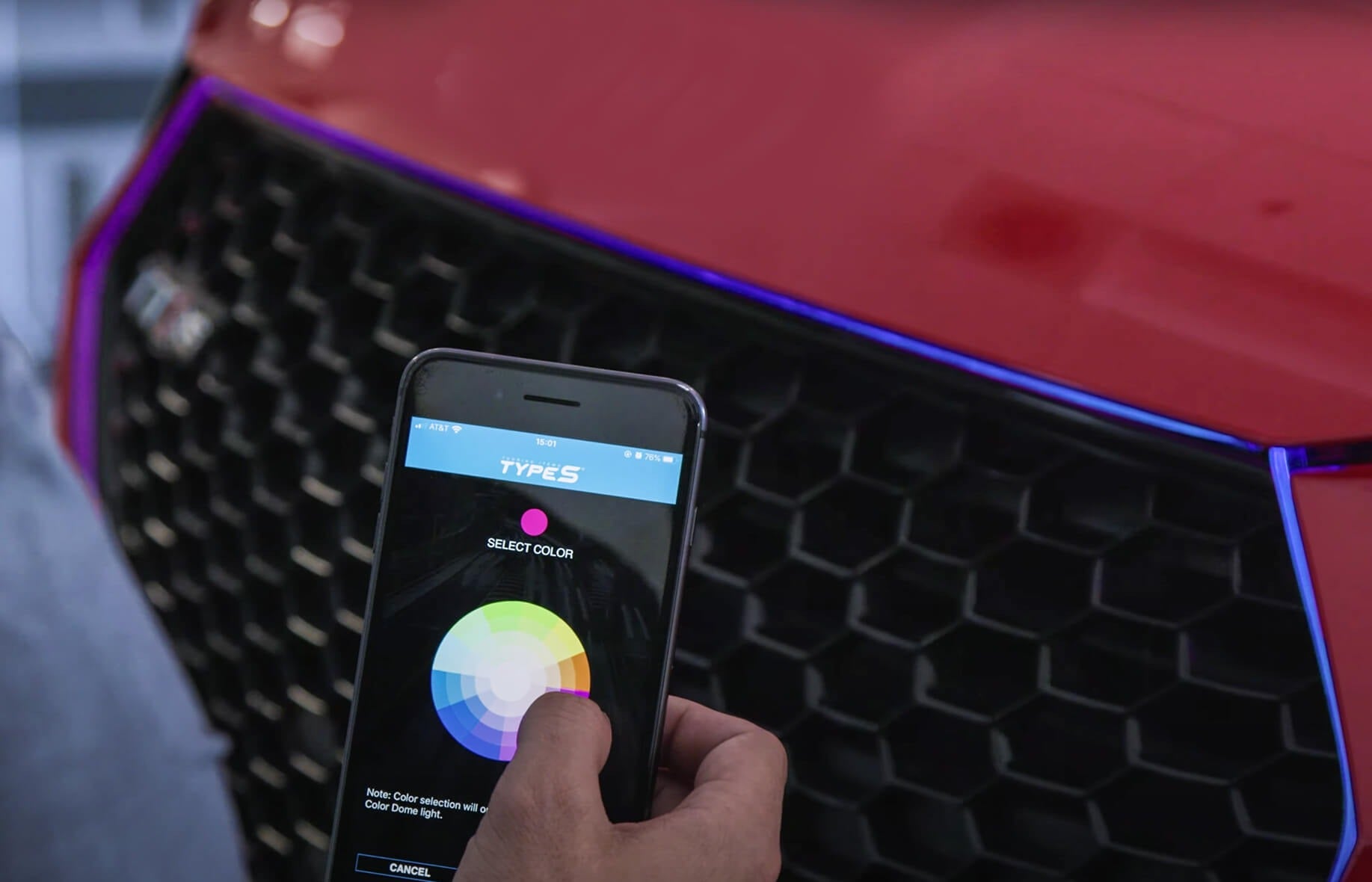

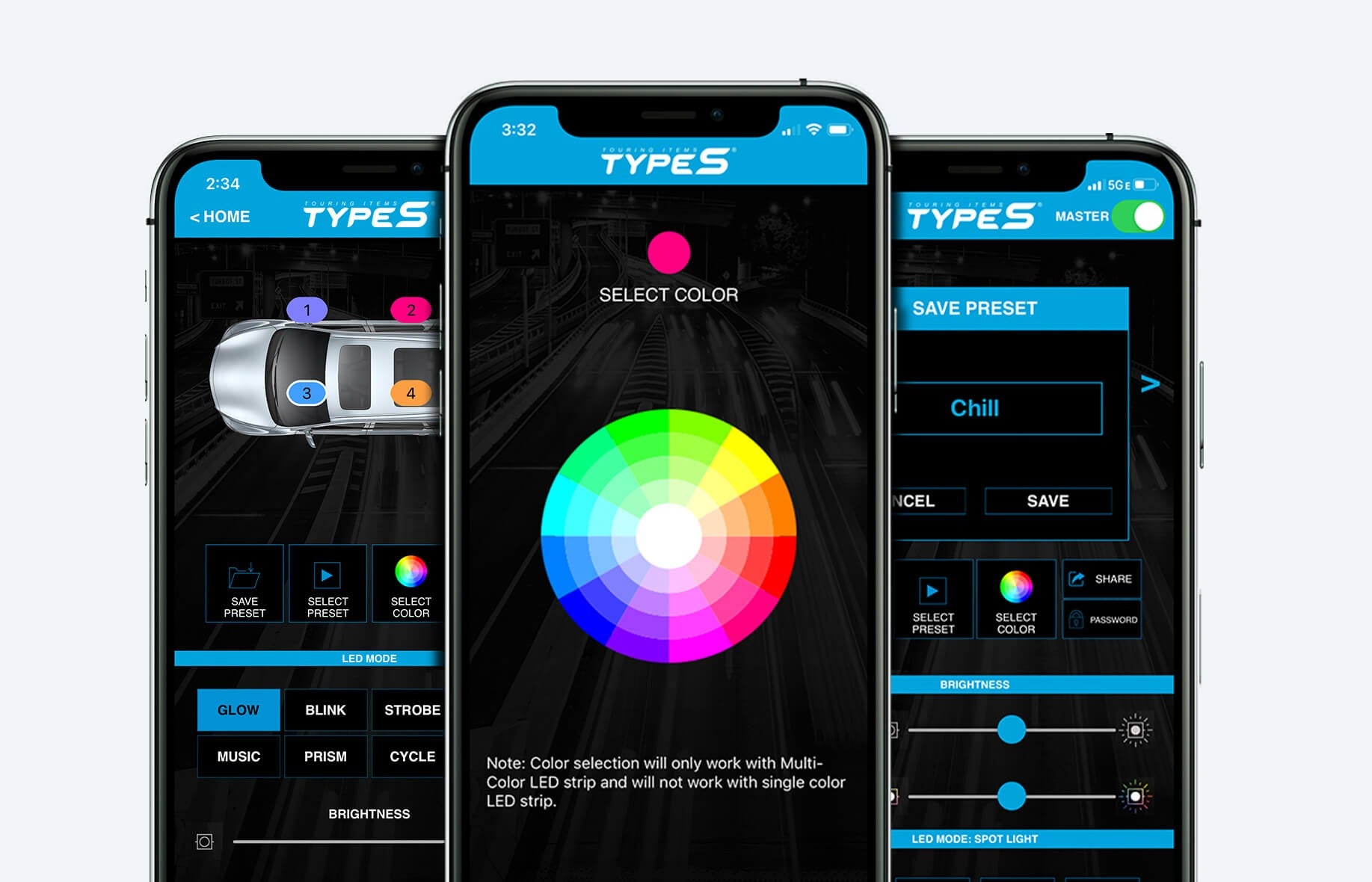

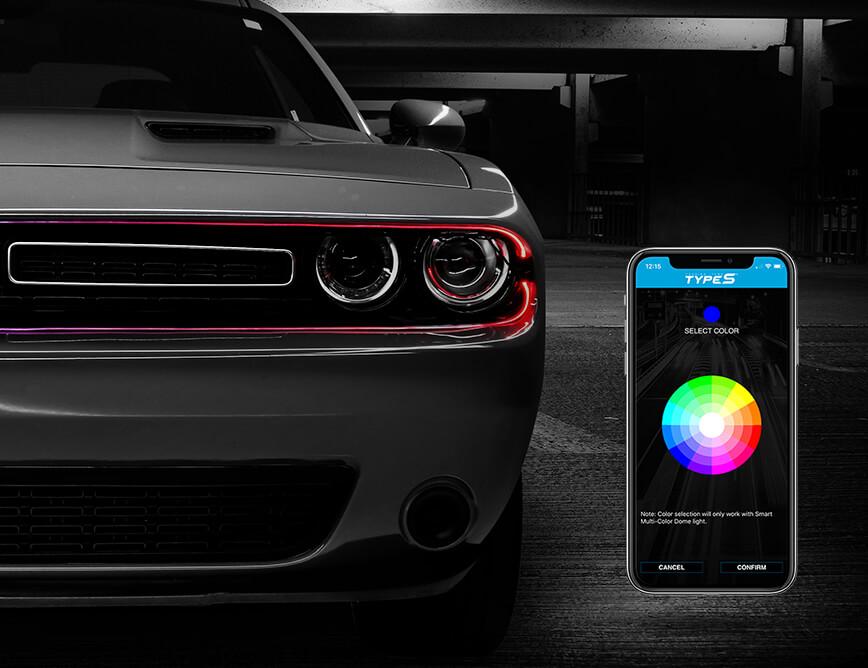

Easily control your lighting experience with the TYPE S LED app, featuring 49 unique colors, 8 light modes, and multi-zone presets for the ultimate exterior look.
Design your own custom lighting zones around your exterior to create the perfect blend of colors and brightness.

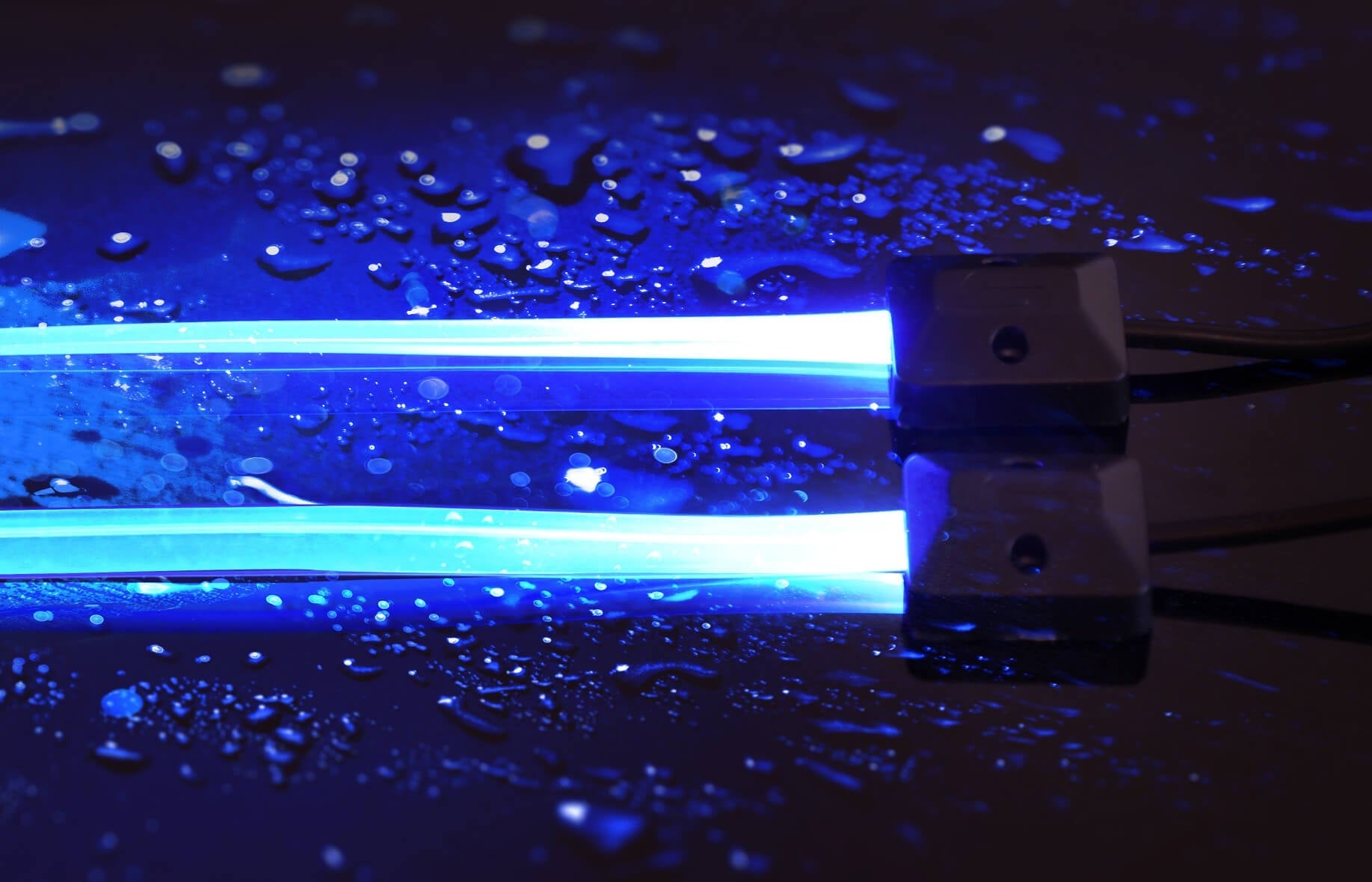

With a durable and weatherproof design, this IP65 rated exterior lighting kit will withstand the elements to keep your vehicle safely glowing down the road.

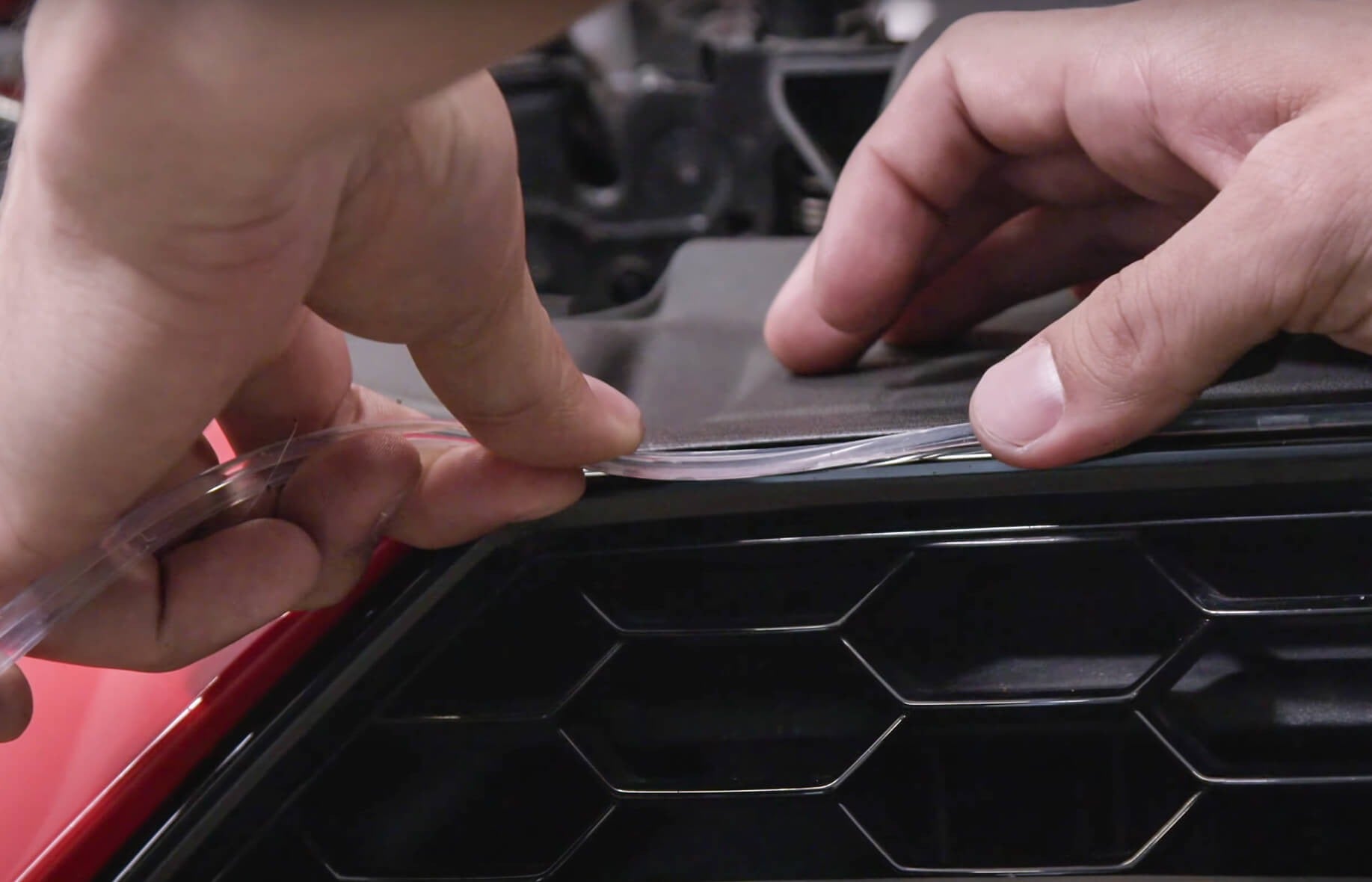

Made of flexible rubber tubing, TYPE S LED strips are easy to install and comes backed with 3M VHB adhesive tape for secure mounting.

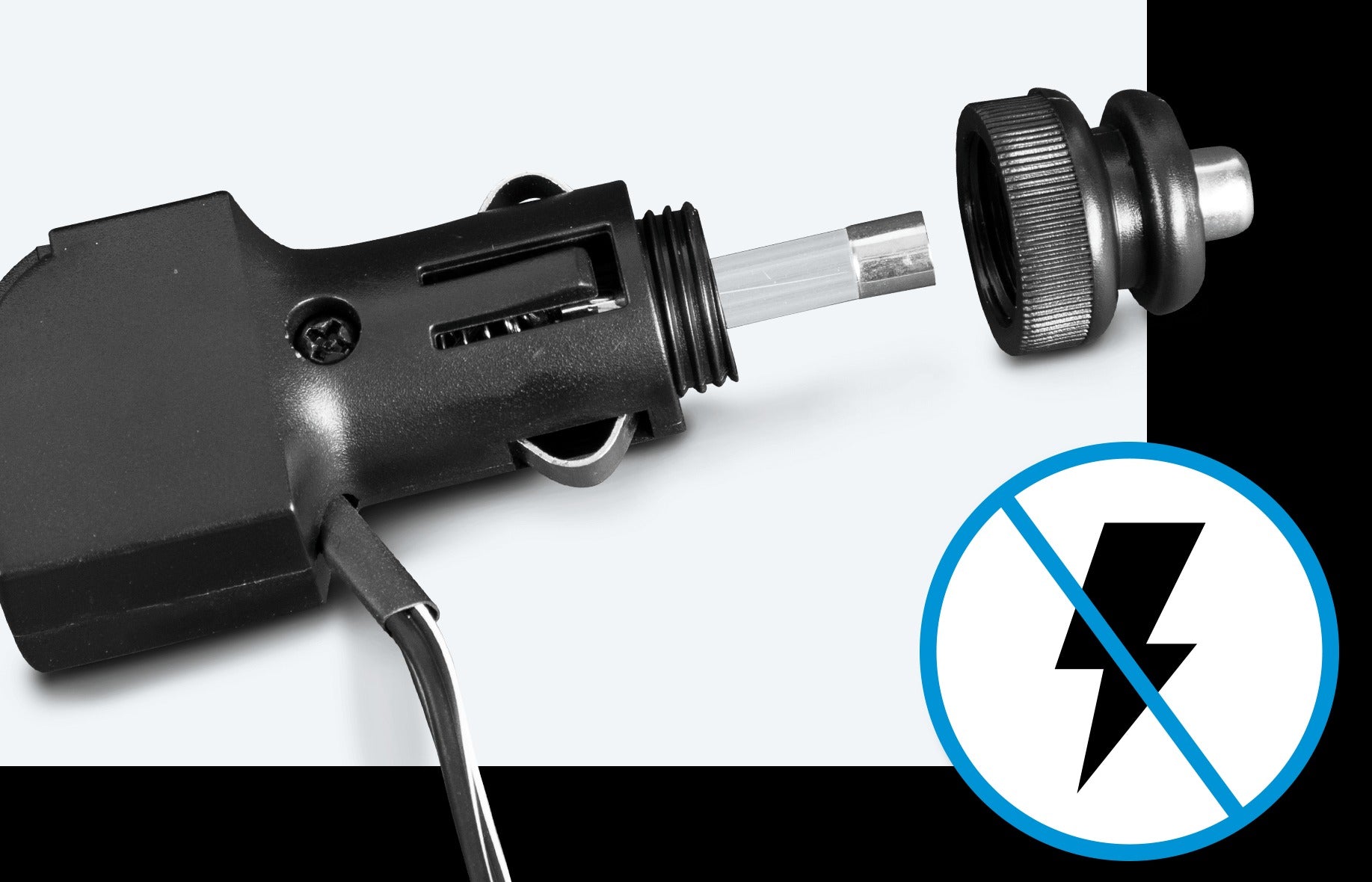

Built-in short circuit protection technology ensures a safe installation and operation when connected to your 12V power source.
Add some character to your ride with the Smart LED Exterior Trim Lighting Kit from TYPE S, featuring two 60" multicolor LED light strips and a smart hub controller for a custom lighting experience using the TYPE S LED app.
Easily control your lighting experience with the TYPE S LED app, featuring 49 unique colors, 8 light modes, and multi-zone presets for the ultimate exterior look.
Design your own custom lighting zones around your exterior to create the perfect blend of colors and brightness.
With a durable and weatherproof design, this IP65 rated exterior lighting kit will withstand the elements to keep your vehicle safely glowing down the road.
Made of flexible rubber tubing, TYPE S LED strips are easy to install and comes backed with 3M VHB adhesive tape for secure mounting.
Built-in short circuit protection technology ensures a safe installation and operation when connected to your 12V power source.
FAQ
What's the maximum number of this kit can be controlled by TYPE S LED app?
Up to 4 (It'd control all nearby devices at the same time.)
What kinds of mode does this kit have?
Glow, blink, strobe, fade, prism, cycle
Can I cut the LED strips?
Yes, you may cut the optical fiber at any location on the fiber.
Can this kit be used on the exterior of the car, is it waterproof?
Yes, this kit is intended for exterior use.
What is operation voltage?
DC 12V only.
Can more than one Hub Controller be used at once?
Up to 4 Smart Hub Controllers can be used at the same time. Each hub will represent a specific "zone."
Is this kit expandable?
Yes, there are Plug & Glow Extensions available.
Can my phone connect to this kit?
Type S LED APP is compatible:
iOS:
with iPhone 4s & higher, iPad3, iPad Mini, iPad Air & higher, and iPod touch 5th Generation & higher. Requires iOS 9.0 or higher
Android:
with phones with AndroidTM 4.3 or higher.
Note: not all AndroidTM phones are equipped with Bluetooth® v4.2 required for this application.
How to control this kit through my phone?
Please download 'Type S LED' from Apple Store and Google Play.
Why the light turns off after 10 seconds?
Car battery may be undercharged or low. Do not turn on the LED lights.
Recharge or replace car battery
Why the light turns off after 30 minutes?
Light may still be “on” after engine is turned off. Lights will automatically turn off and Hub will be in standby mode when the voltage drops to approximately 12V. Start the engine and the vehicle will generate voltage above 12V.
Why the light is not working?
It can be Poor power connection, please check power connection and make sure the Smart Hub LED is flashing or try to disconnect power and reconnect.
Or incorrect password on APP, Press and hold Smart Hub reset button for 3 seconds to reset password.
The APP password is not working?
Password Function only available with Off-Road, Exterior Kit and Pro Series LED Kit
You can set up a password to prevent other devices from controlling your lights. Once you have entered your password, it will be saved in the APP and Smart Hub Controller.
To set or change the password, your device must be connected to Smart Hub and simply follow on-screen instructions.
Changing the password without connecting to the Smart Hub may cause an invalid password the next time your App and Smart Hub are activated.
If you forget your password, simply reset by pressing the Smart Hub Controller reset button for 3 seconds or disconnect the power from the car battery.
My LED kit can't connect to my phone.
Make sure the bluetooth function is turned off in your mobile device.
Pressing the Smart Hub Controller reset button for 3 seconds or disconnect the power from the car battery to make sure the Smart Hub enter pairing mode.
Follow on-screen instructions to set the password.
Avoid changing the password without connecting to the Smart Hub may cause an invalid password the next time your App and Smart Hub are activated.
Product specification
120 in (2 x 60 in) / 305 cm (2 x 152 cm)
12 VDC System Only
2.4 GHz
30 ft LOS (Line of Sight)
0.1A
LM57485-60/6 (UPC 643334574856)
LM57485-1 (UPC 643334574856)

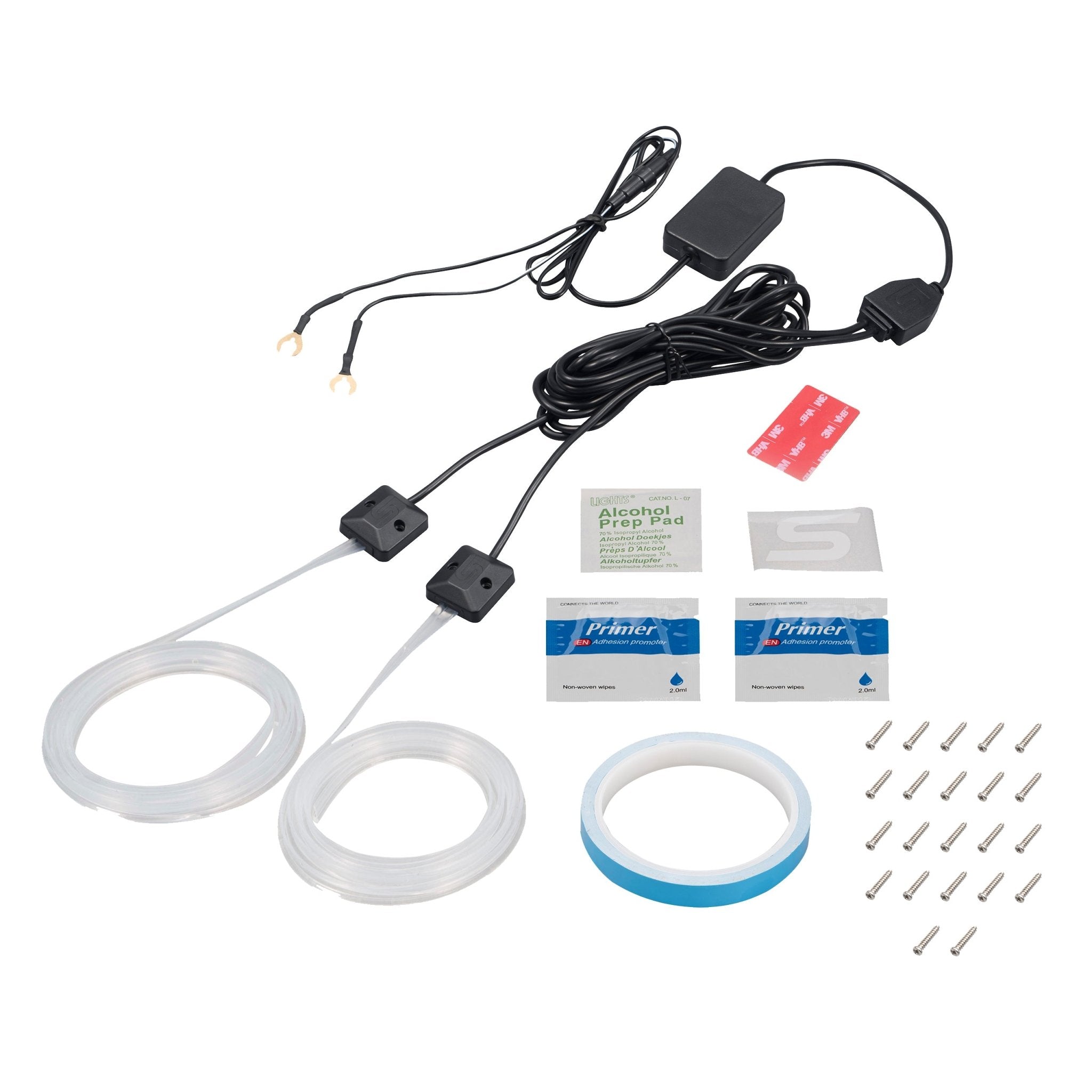

In the Box
- 120"(2 x 60") Multi-Color Trim Light with Weatherproof Smart Hub Controller
- 24 x Screws
- 180" Double Sided Tape for Trim Light
- 3M™ VHB Double-sided Tape for Smart Hub Controlle
- Alcohol Wipe
- 2 x Promoters
