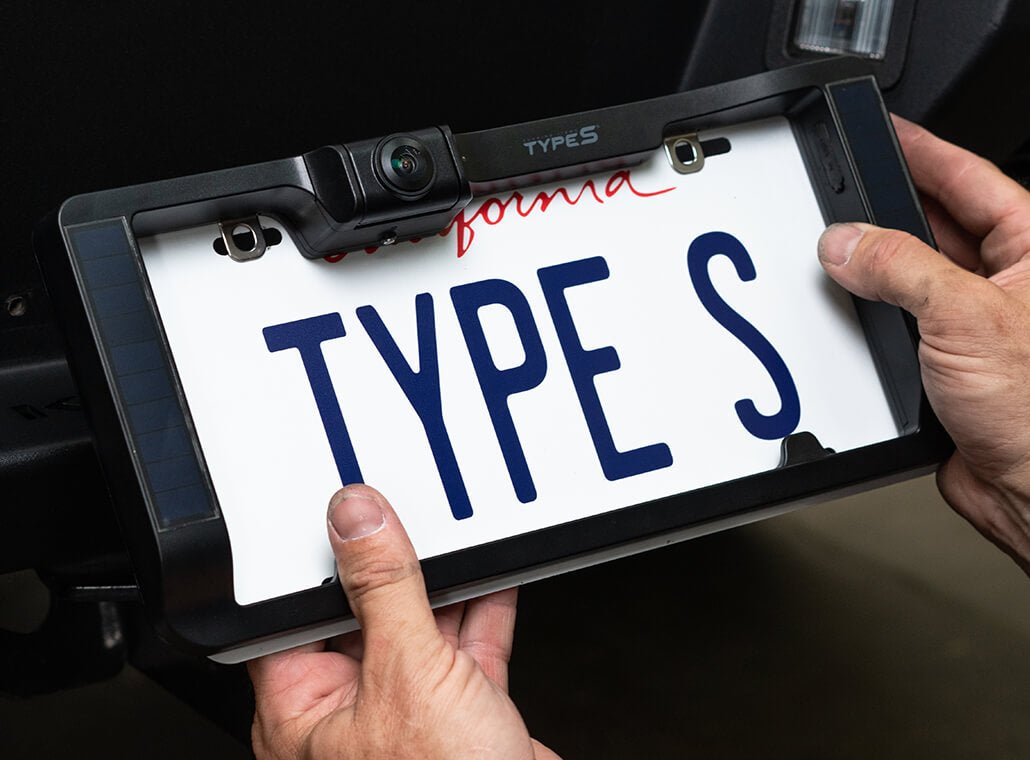

TYPE S Solar-Powered Wireless Backup Camera with Adjustable Lens to Enhance Rear View Visibility

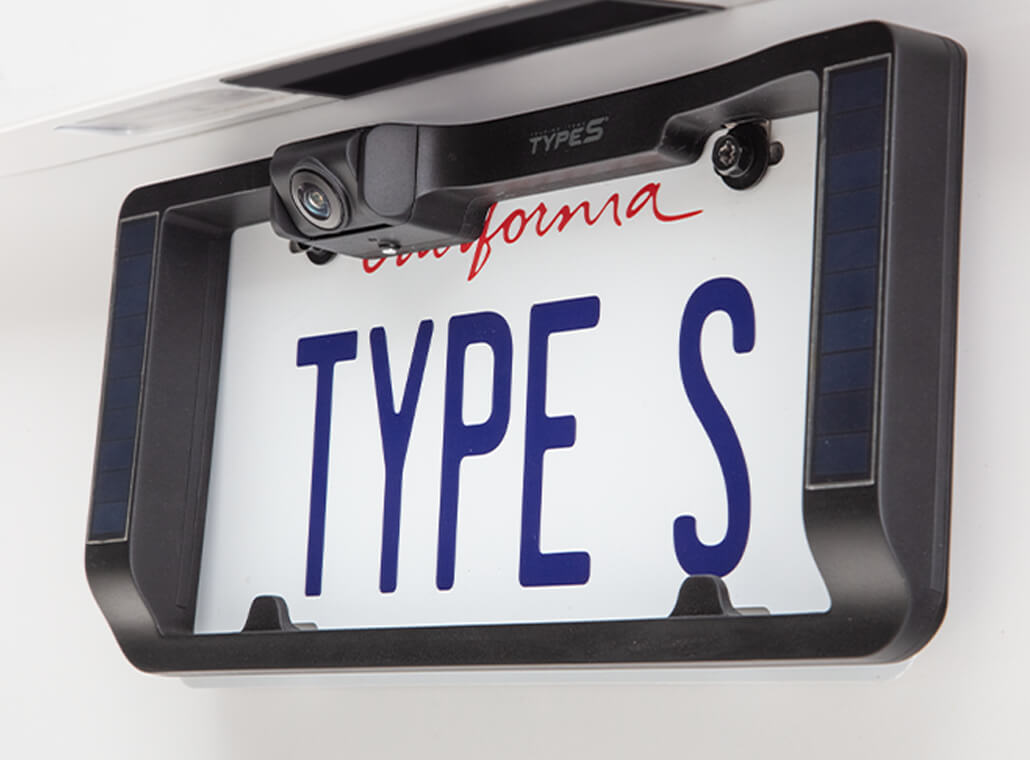

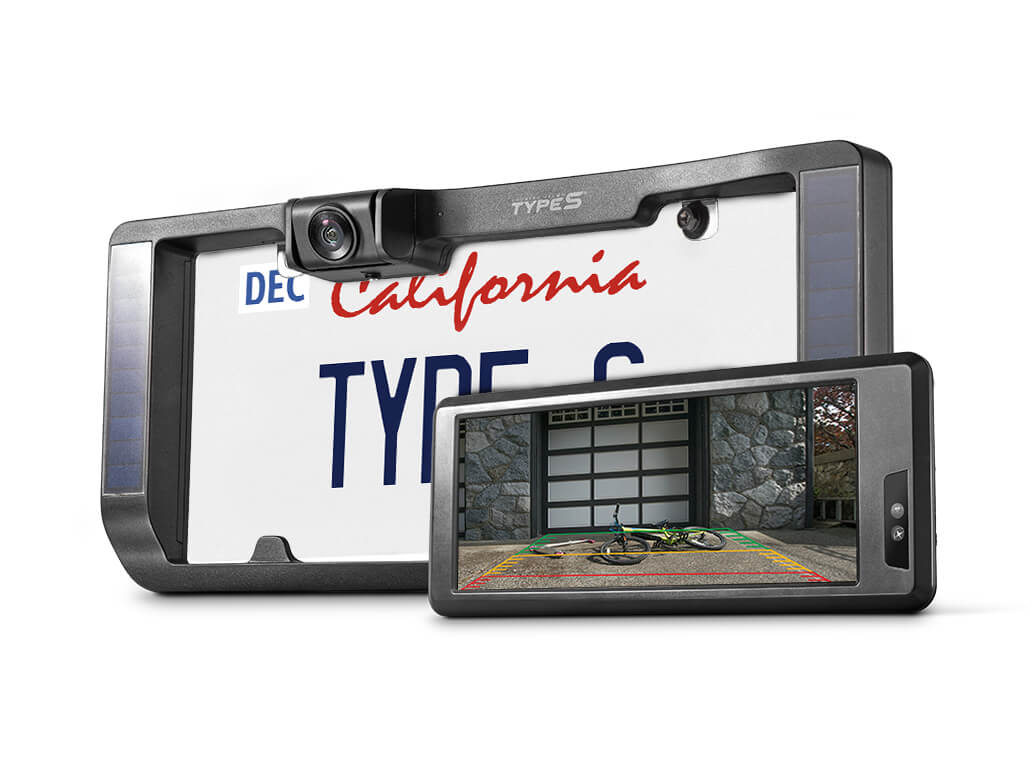

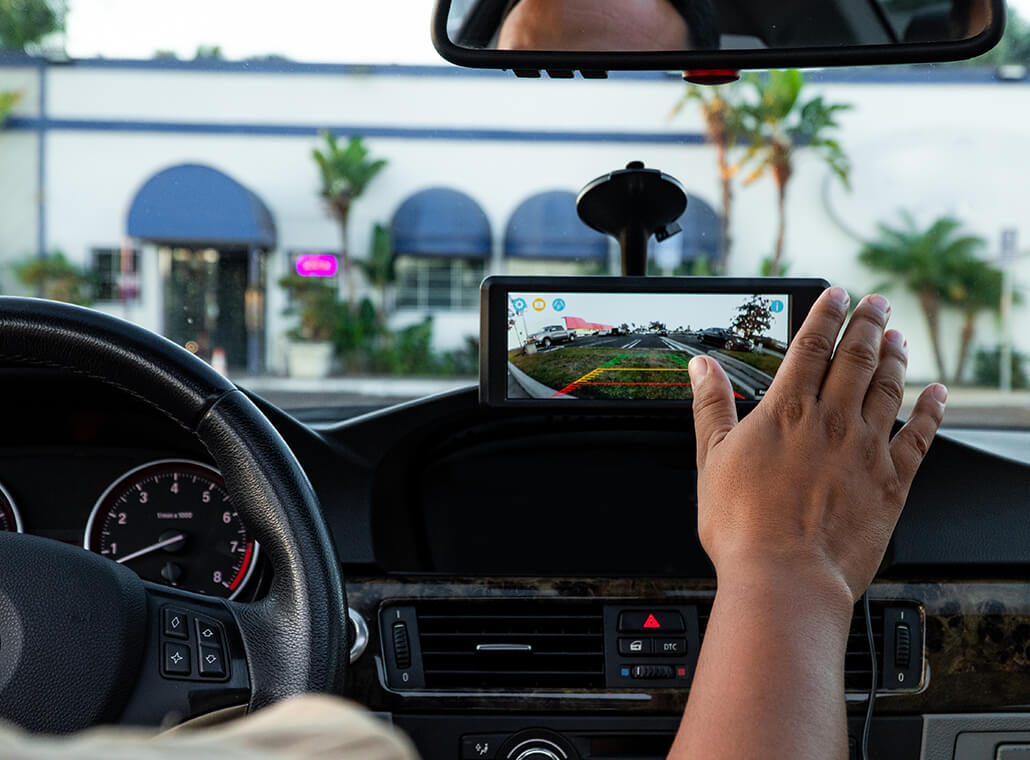

The TYPE S Wireless Solar-Powered Backup Camera is not your ordinary add-on backup cam; it features a pair of solar panels that will automatically keep the camera charged so you'll never have to manually connect it to power. What's more, the camera now comes with adjustable lens, allowing you to Vertically adjust the Viewing Angle of the 160° Wide view to the angle that fits your vehicle the best. The 6.8" inch dashboard monitor can be safely and instantly activated with a wave of hand in front of its motion activation sensor, allowing you to keep your eyes on the road while doing so. The 720P HD resolution is further enhanced with digital image processor so the view stays crystal clear even in low light environments.

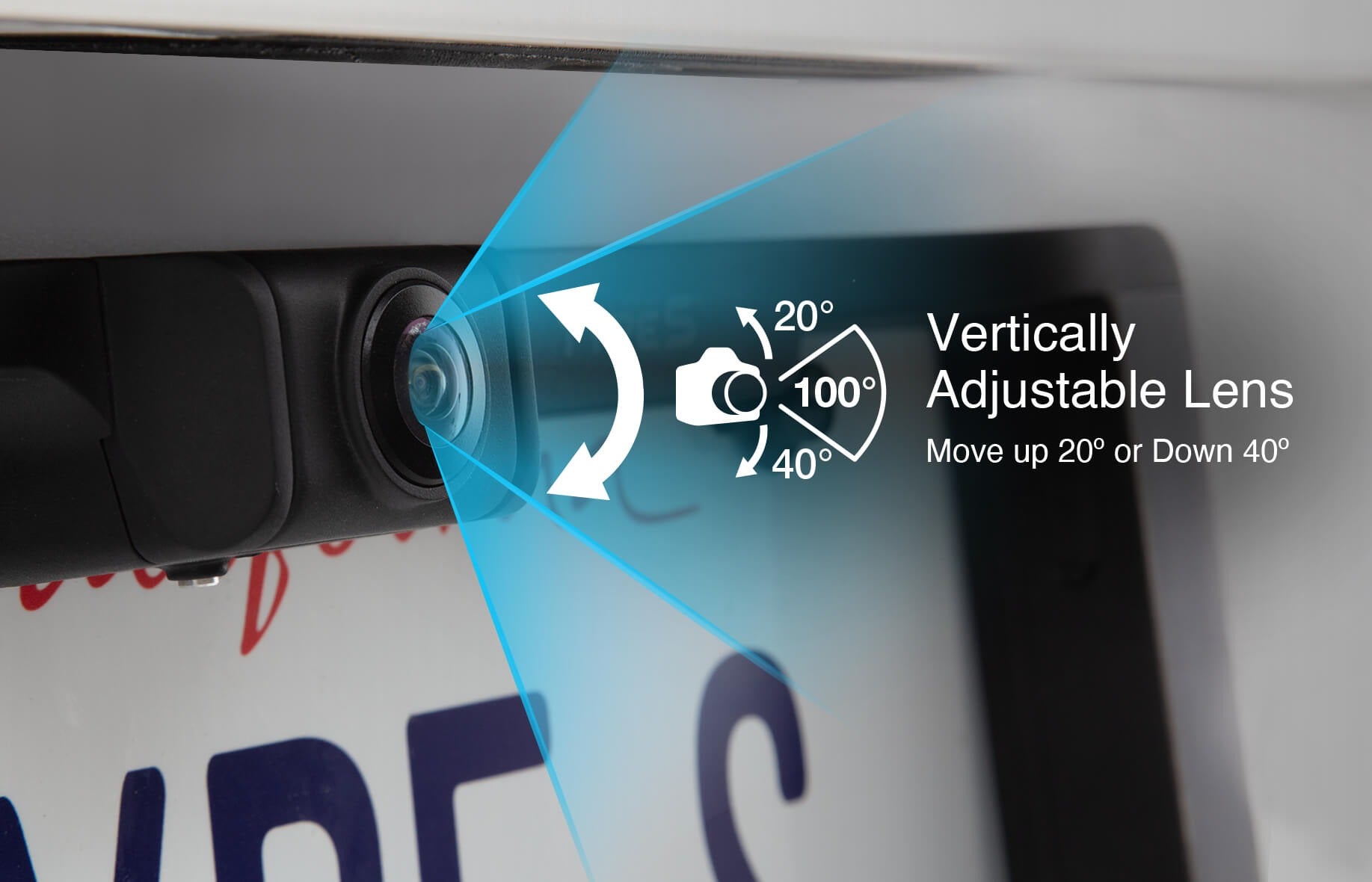

The vertically adjustable lens allow you to move the viewing angle of the camera up 20° or down 40° if your vehicle is lifted or lowered.

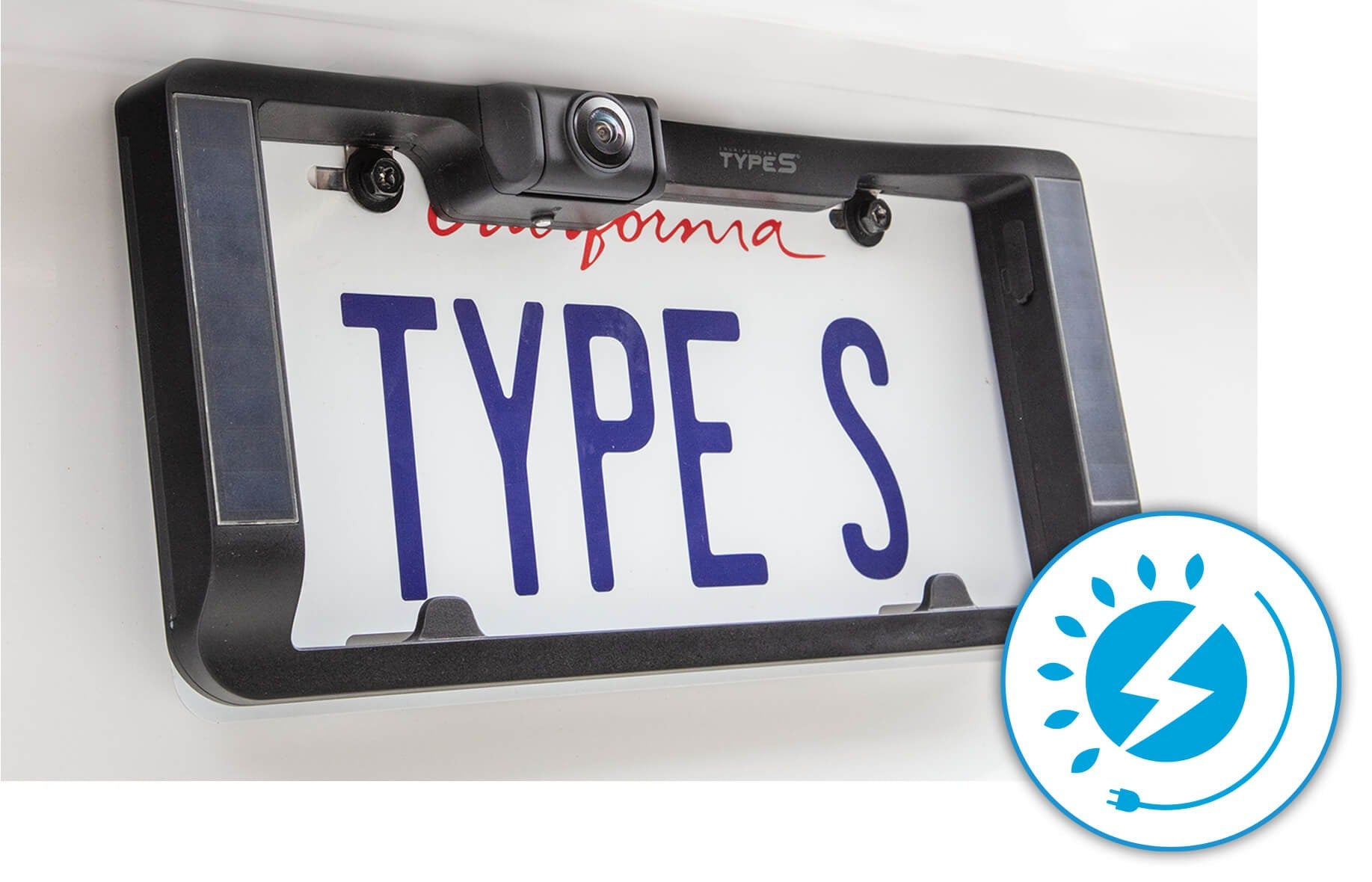

Increased battery capacity and solar rechargeable allows the camera to recharge when the car is in the sun.
With the industry leading 160° wide view, you can virtually eliminate your blind spots when backing up.

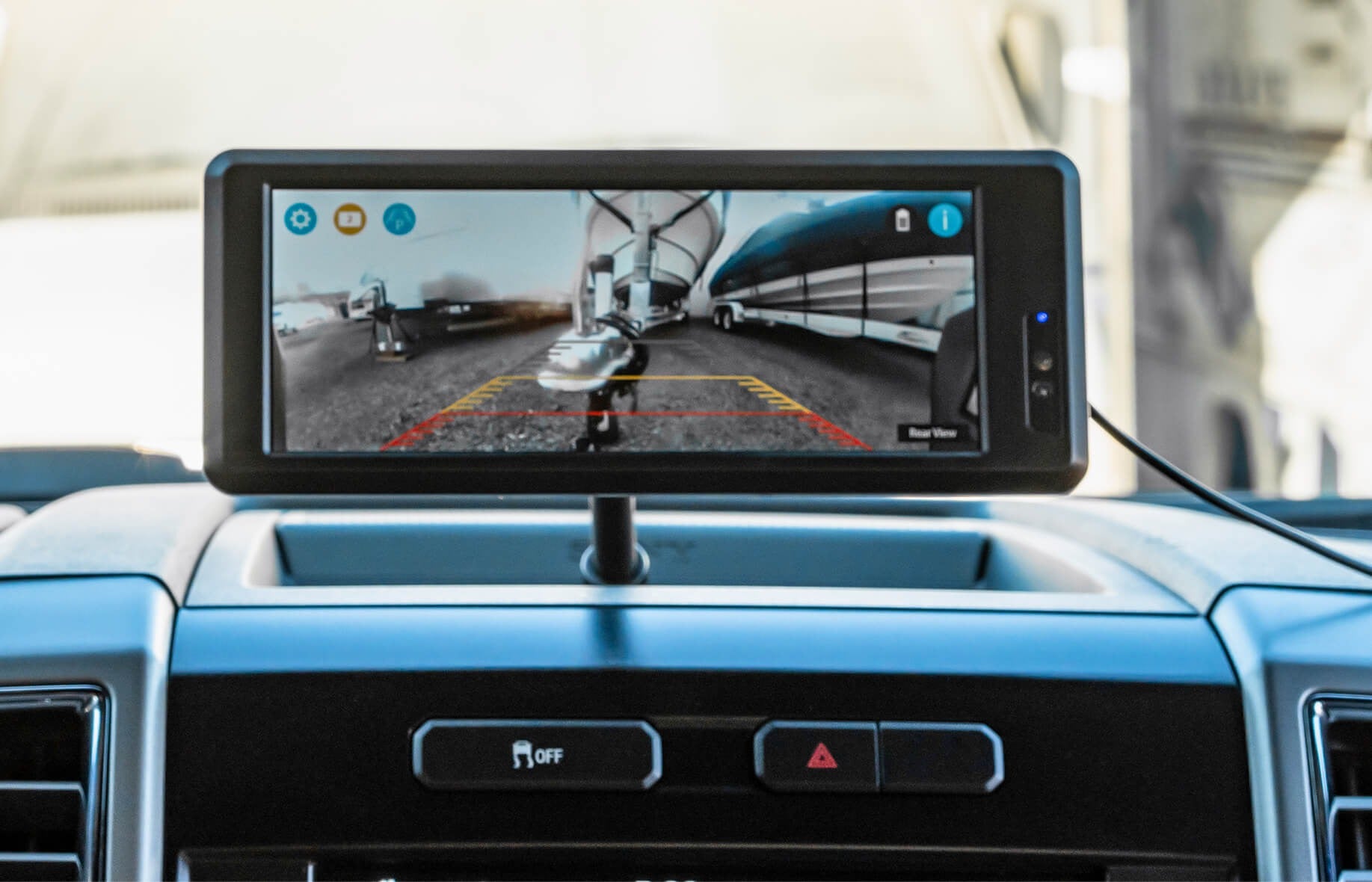

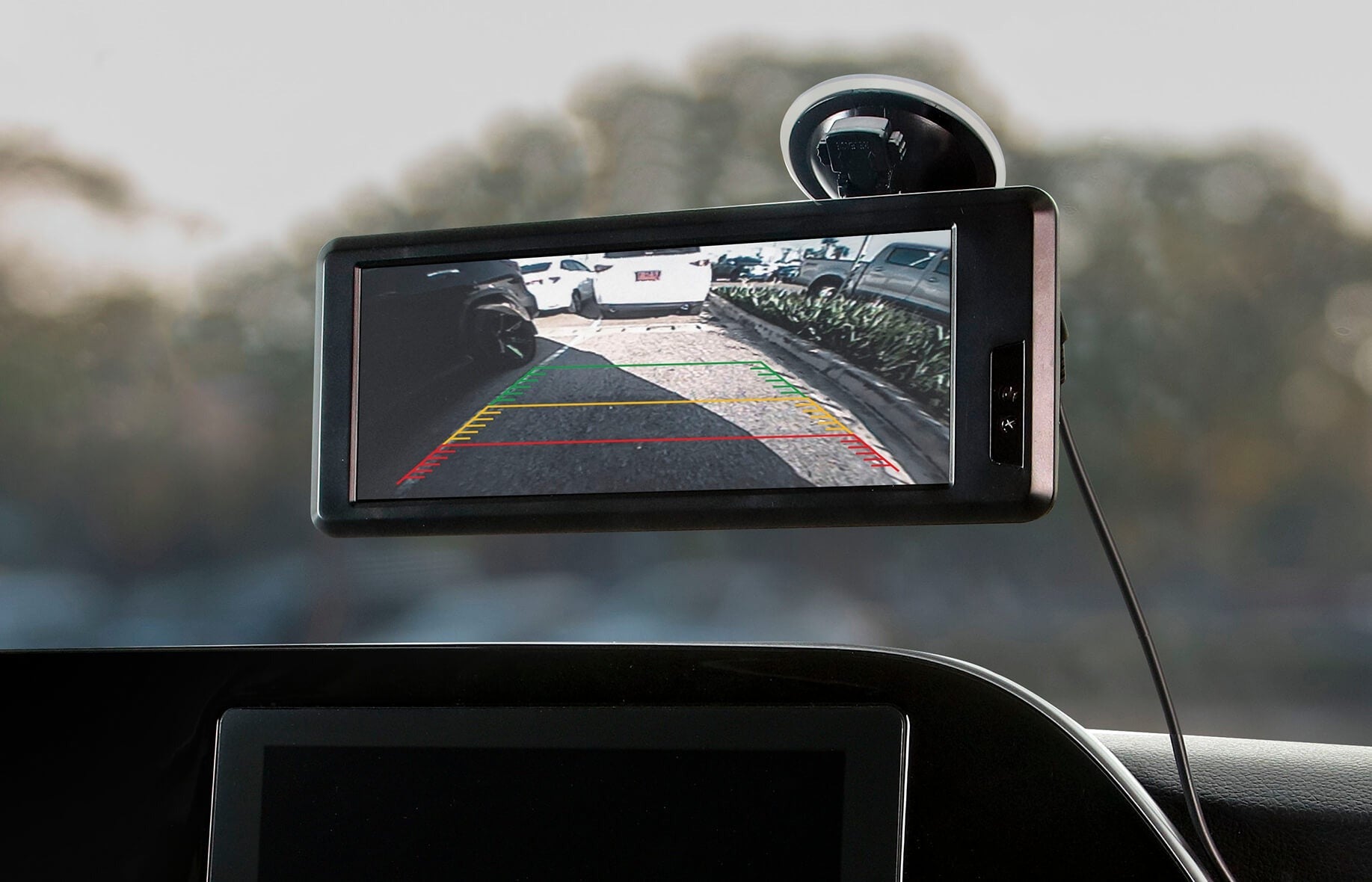

Parking Assistant, be able to safety park your car without hitting obstacles with the aid of parking guide lines
The vertically adjustable lens allow you to move the viewing angle of the camera up 20° or down 40° if your vehicle is lifted or lowered.
Increased battery capacity and solar rechargeable allows the camera to recharge when the car is in the sun.
With the industry leading 160° wide view, you can virtually eliminate your blind spots when backing up.
Parking Assistant, be able to safety park your car without hitting obstacles with the aid of parking guide lines
FAQ
What is the distance the camera can be from the monitor?
Maximum signal range: 30 feet / 10 meters (without interference or obstruction)
Can I add another camera to the monitor view?
Yes, this model can pair up to 2 backup cameras. Please purchase BT56780 Add-On Wireless Parking Camera and follow the user manual for pairing the additional add-on camera.
What is the wireless frequency?
The camera is transmitted under 2.4 GHz Radio Frequency.
How long does the camera take to charge?
Initial charge of the camera is 4-6 hours using the USB cable included in the packaging.
Will this camera work with my truck?
This camera will work with trucks, simply adjust the angle of the lens to your desire viewing angle.
Will this camera work with my trailer?
The camera may work with a trailer, however, it depends on what you are hauling: ATV/UTVs, a boat, tractor, etc. There could be interference if the haul is large or dense. The wireless Flex Mount Backup Camera with 5” Monitor may be a better option for you if you are hauling cargo on a regular basis because it will be wired into a stable power source.
Does the camera come pre-paired to the monitor?
Yes, the camera is paired to the monitor in default. Pairing instructions are written in the user manual for reset or add-on camera settings.
How do I pair a new camera to the monitor?
Step 1: Press and hold the Power Button under the camera for 6 seconds, or until the LED flashes Blue continuously. The camera will be turned on and enter Pairing Mode for one minute.
Step 1a: Or press and hold the Power Button for 5 seconds to enter Pairing Mode if the camera is already on.
Step 2: On the Dash Monitor, tap the “SETTINGS” icon and then tap “PAIR CAMERA” to enter the pairing screen. Tap Front / Rear Camera, click to pair.
Step 3: The camera should be paired within 30 seconds. If the pairing is successful, the display will show “Pair OK”.
If no camera is found, then the display will show “Pair Fail”. In this case, cut off the power and reboot the Dash Monitor. If you keep receiving the “Pair Fail” message after several attempts, please call our technical support to assist in troubleshooting.
Do I need to charge the camera before installing it?
After installation, the camera can be charged by solar panel based on 2 hours of full sunlight exposure with 10 triggers consumption per day.
What is the battery capacity and how long does the camera take to charge?
The camera comes with a 5,200 mAh rechargeable battery, please fully charge your camera for 8~10 hours before initial use by using the USB cable included in the packaging.
Why did my monitor turn off?
By default, the monitor goes to sleep after 45-seconds of inactivity. The Operation Time can be adjusted in the monitor’s Settings menu. Please refer to the Instruction Manual.
Why doesn’t my monitor wake up?
The monitor has motion detection sensors, the sensitivity can be adjusted in the monitor’s Motion Detection Settings. Please refer to the Instruction Manual.
My camera flashes RED LED continuously.
This is the low voltage protection, please make sure to recharge the camera through solar charging or through USB Cable.
Camera battery is not charging with solar.
Make sure your car is not parked in a shaded location, such as parking garages. Try to have the vehicle in 2~4 hours of good sunlight to recharge the camera each day.
Product specification
Monitor:
Length: 9.05 in / 23 cm
Width: 0.83 in / 2.1 cm
Height: 3.15 in / 8 cm
Backup Camera:
Length: 12.2 in / 31 cm
Width: 1.26 in / 3.2 cm
Height: 5.91 in / 15 cm
Monitor: 0.51 lbs / 231 g
Backup Camera: 0.62 lbs / 281 g
5200 mAh
2.4 GHz
Monitor: DC 12V / 24V
Backup Camera: DC 5V
14°F ~ 122°F / -10°C ~ 50°C
IP65 Rating
33 feet / 10 Meters (without interference or obstruction)
BT532629-1 (UPC 840005326299)
In the Box
- 6.8" Motion Activated HD Monitor
- Wireless Backup Camera with Extended Battery Life
- 12V / 24V Power Adapter
- 250V 2A Spare Fuse
- Windshield Mount
- 33" MicroUSB Charging/Data Cable
- 2 x License Plate Machine Screw (Optional)
- 2 x License Plate Self-Tapping Screw (Optional)
- 2 x Two-Way Mounting Tab (Optional)
- 2 x Mounting Screw & Nut (Optional)
- Dash Mount
- Instructional Manual
- Quick Install Guide
- Warranty Card
