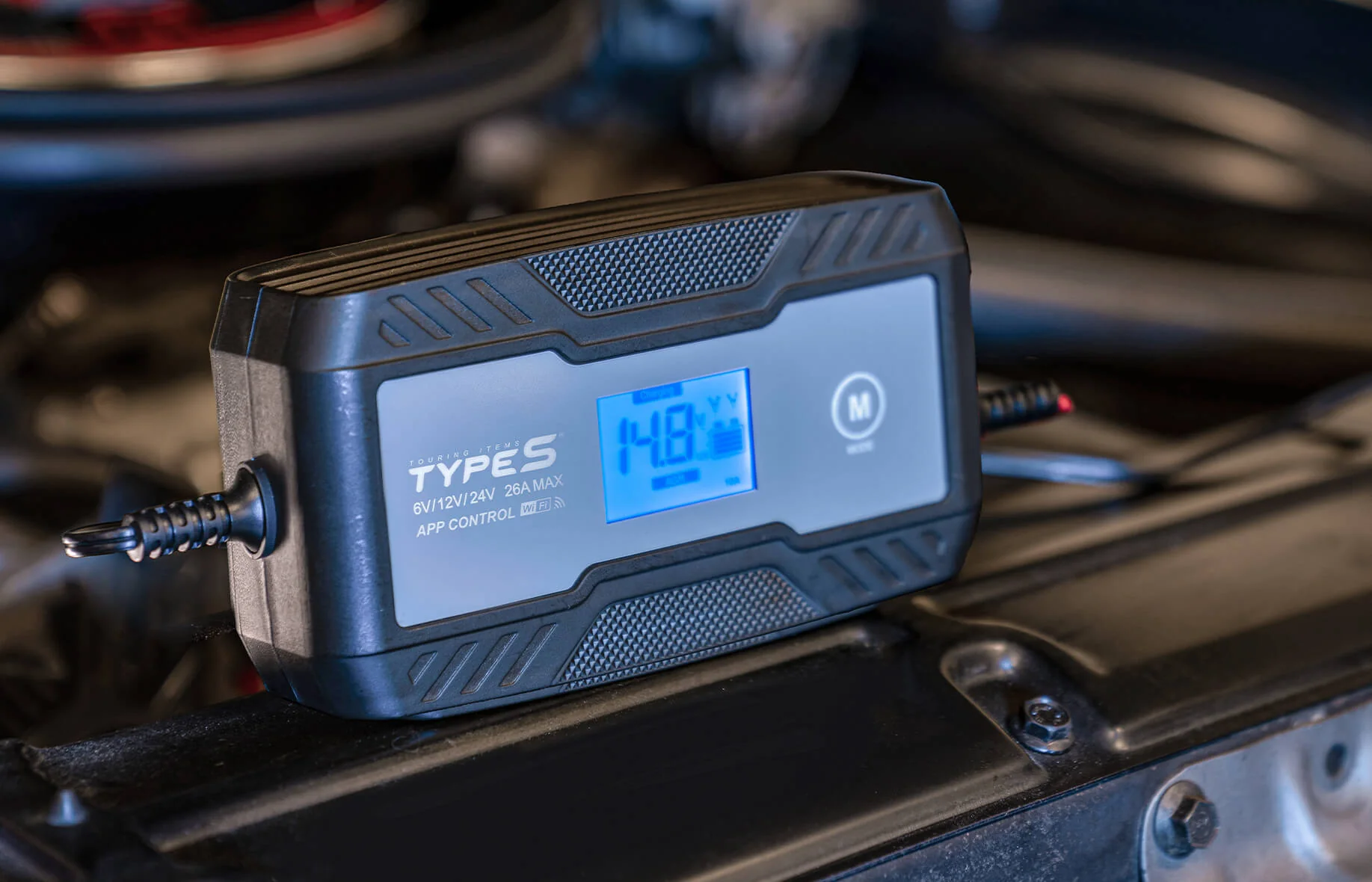

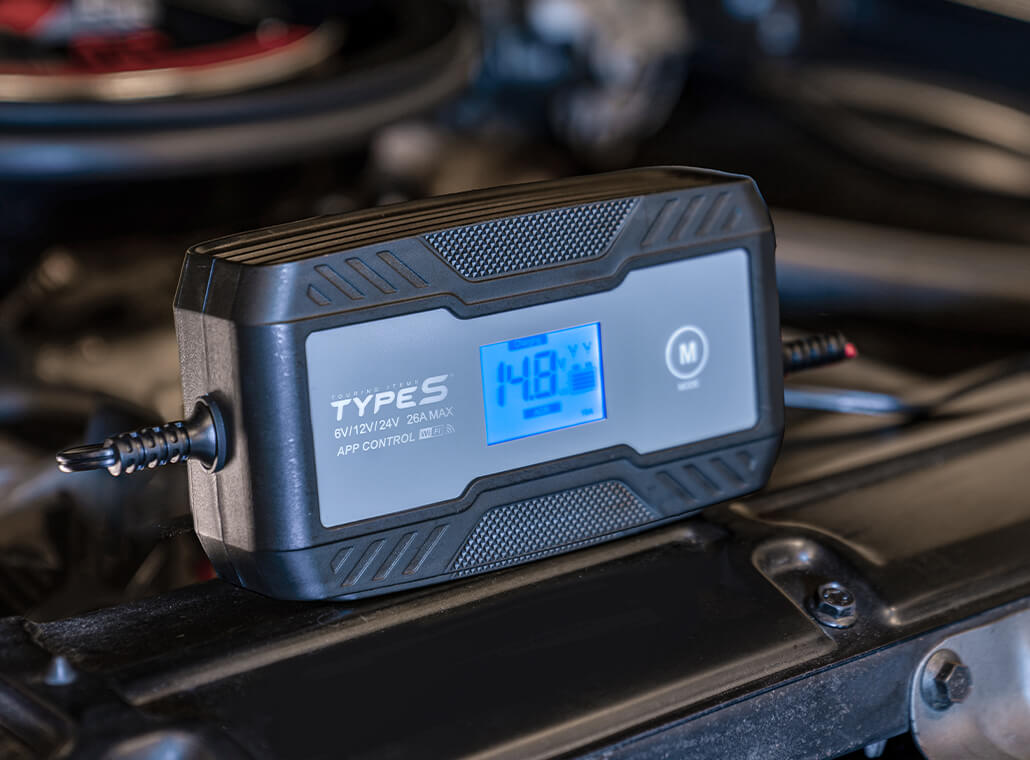

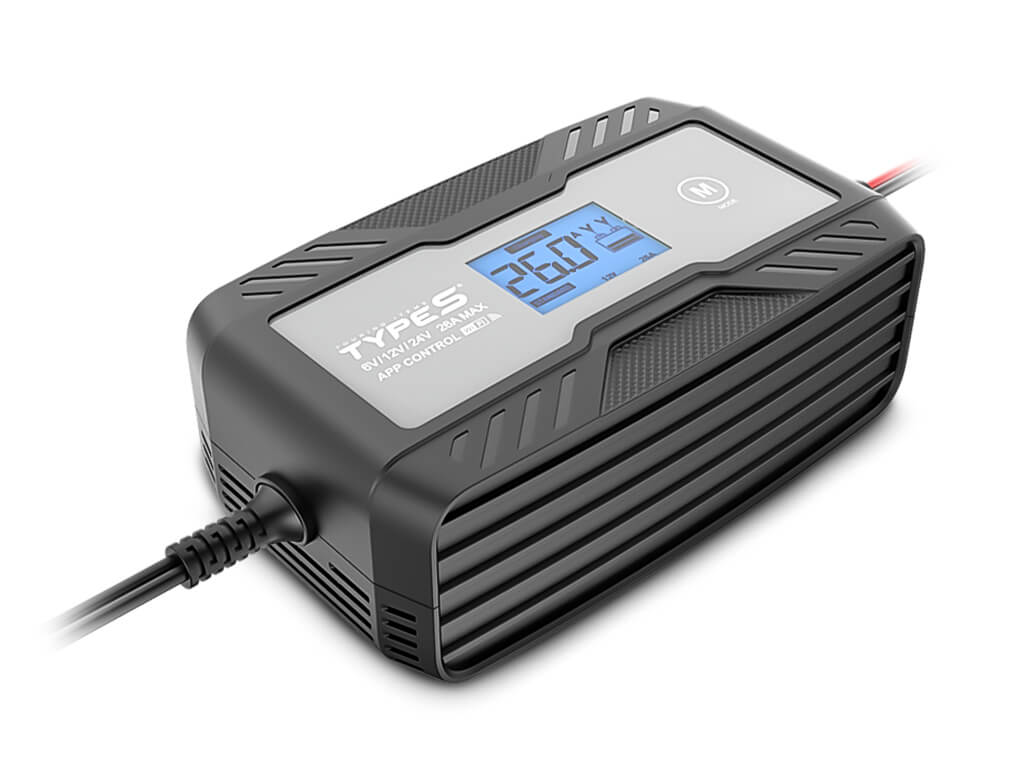

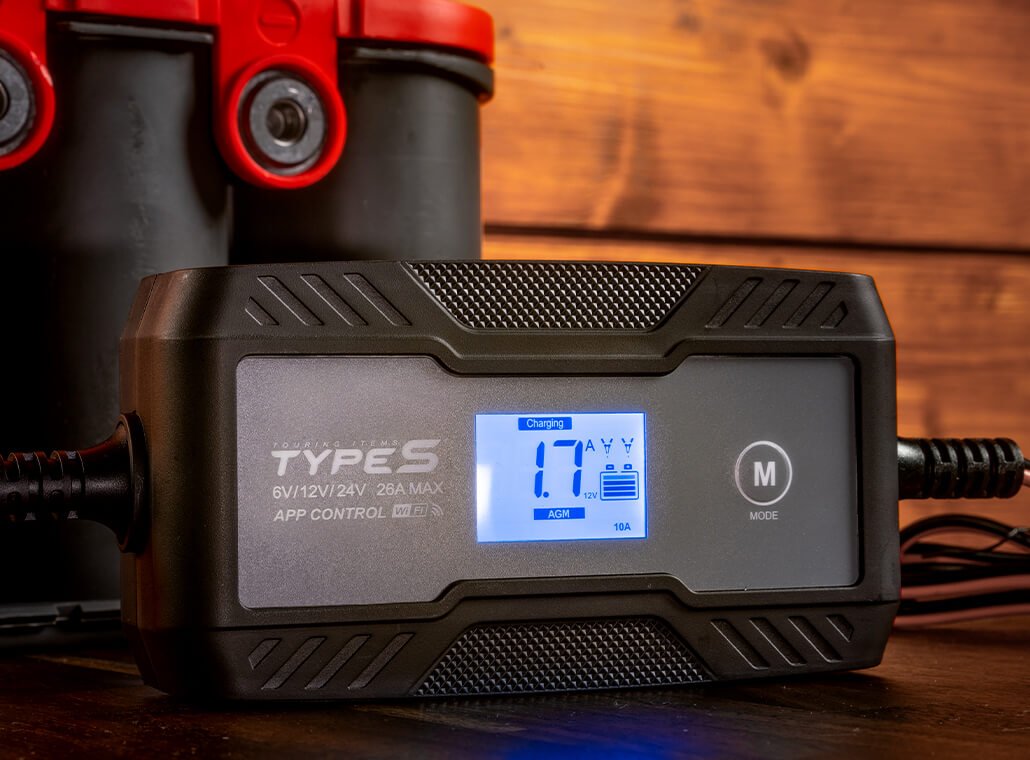

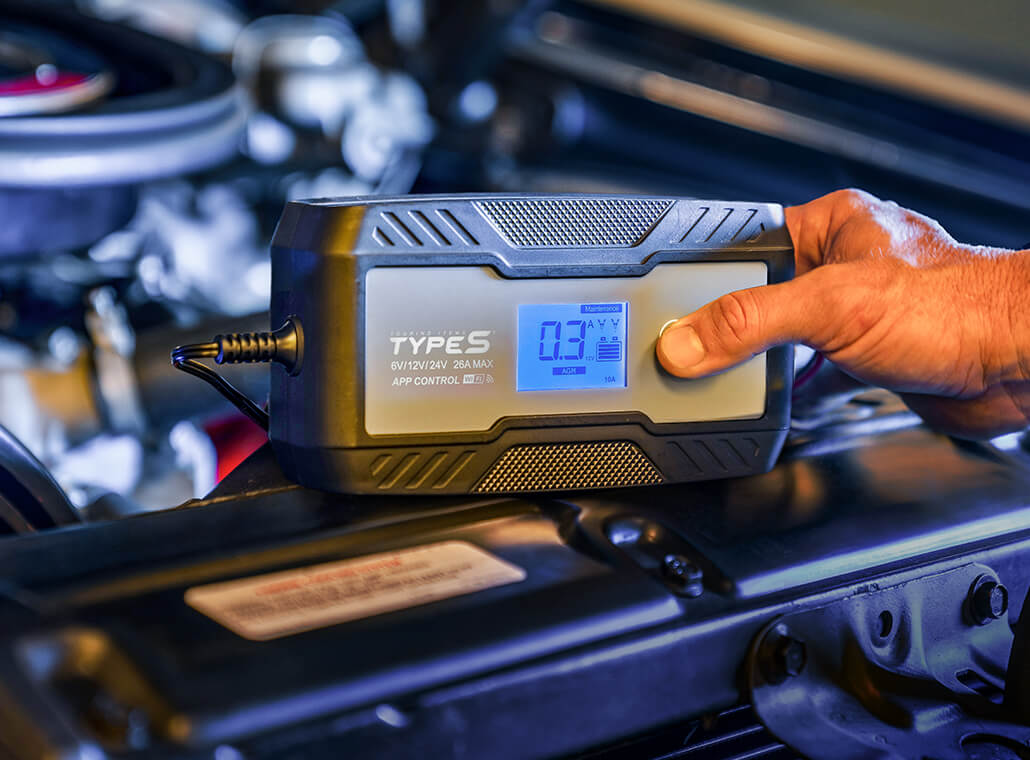

TYPE S 26A Battery Charger & Maintainer

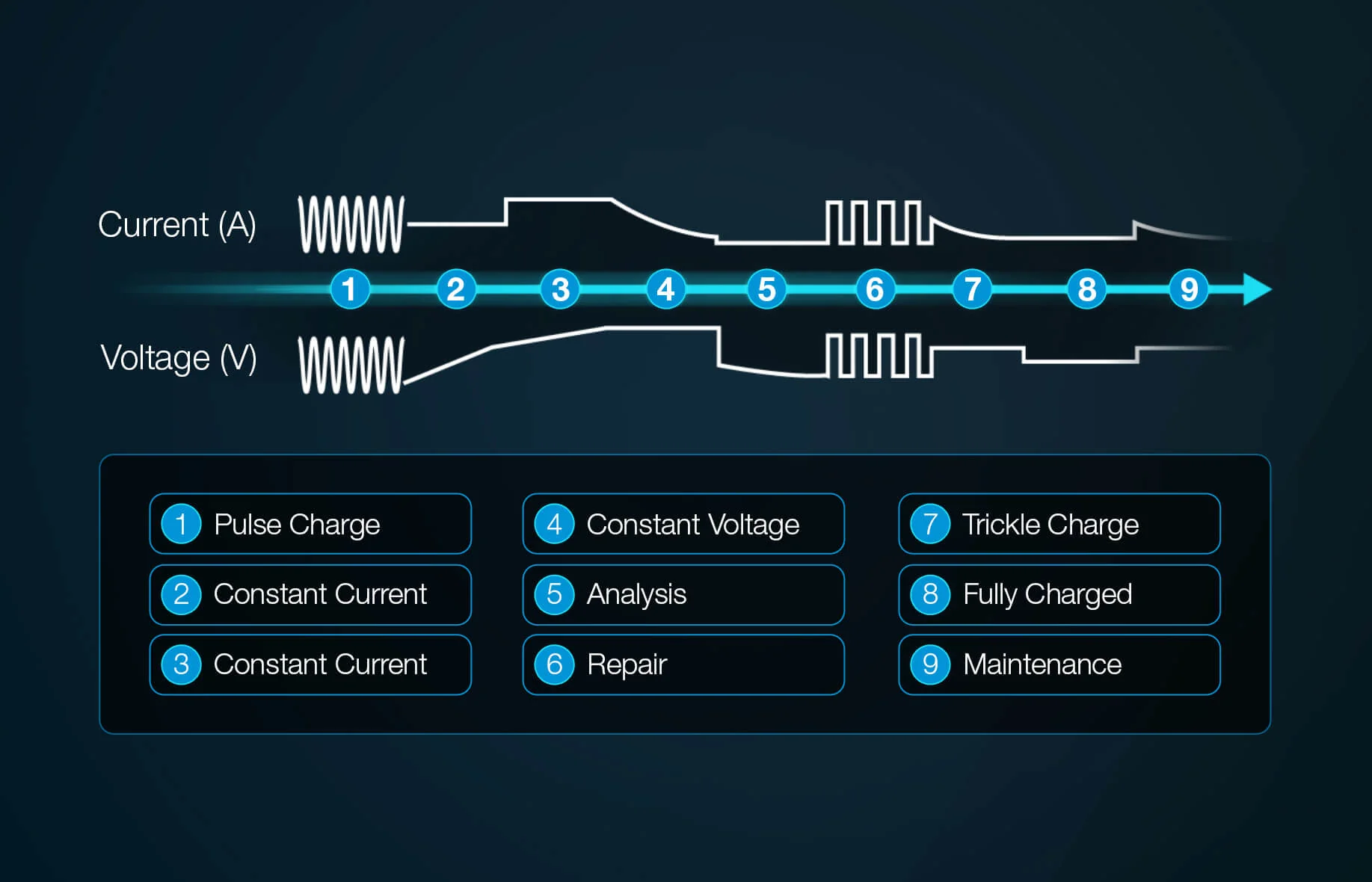

The embedded smart microprocessor performs battery charging and maintenance in 9 intelligent charging stages.
The embedded smart microprocessor performs battery charging and maintenance in 9 intelligent charging stages.
Automatically detects and charges batteries as low as 0.5V.
Efficiently repairs and restores impaired battery cells.

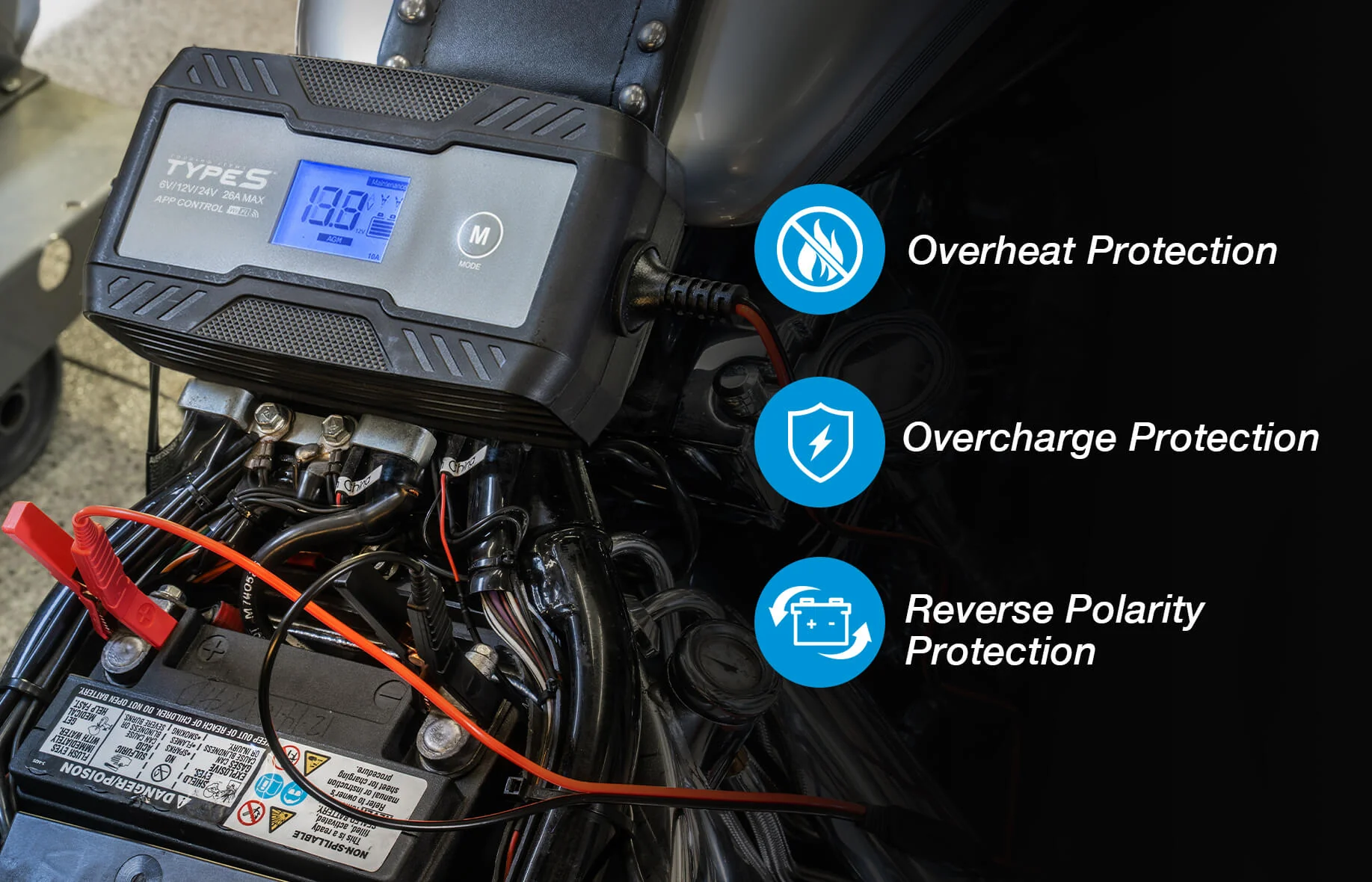

Designed with overheat protection, overcharge protection and reverse polarity protection.

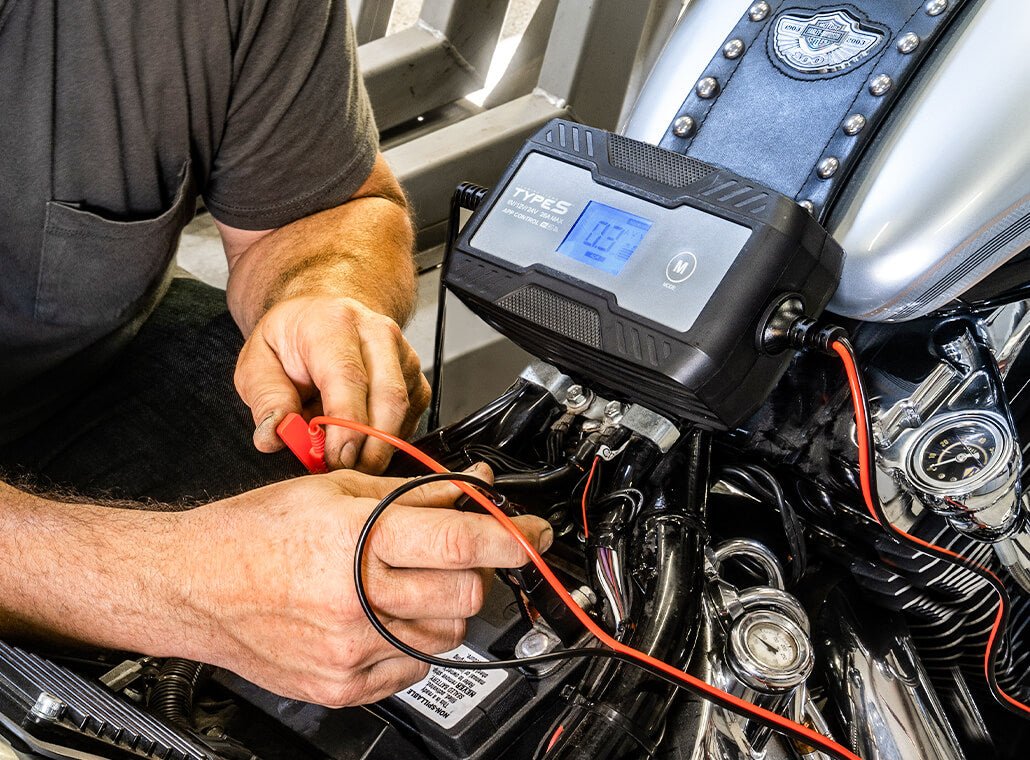

Safely trickle-charge batteries in stored vehicles and equipment including boats, snowmobiles, caravans, and lawn tractors.
Efficiently repairs and restores impaired battery cells.
Designed with overheat protection, overcharge protection and reverse polarity protection.
Safely trickle-charge batteries in stored vehicles and equipment including boats, snowmobiles, caravans, and lawn tractors.
Product specification
Length: 8.8 in / 223 mm
Width: 5 in / 128 mm
Height: 3.2 in / 82 mm
6.3 lbs / 2880 g
100-120VAC, 50-60Hz, 600W
6.6VDC 26A MAX, 13.2
6VDC, 12VDC, 24VDC
26A/5A (6VDC), 26A/5A (12VDC), 13A/5A (24VDC)
<5mA
3.75V (6VDC), 3.75V (12VDC), 3.75V (24VDC)
0.5V (6VDC), 0.5V (12VDC), 0.5V (24VDC)
32°F up to 104°F / 0°C up to 40°C
-4°F up to 140°F / -20°C up to 60°C
Standard (Wet cell / Flooded, SLA & Maintenance Free)AGM, GEL, Lithium-ion (incl. LiFePO4)
Ring Terminals include 40A Fuse
Up to 1000Ah, maintains all battery sizes
IP68; Water-resistant
LM58277-60/6 (UPC 643334582776)
