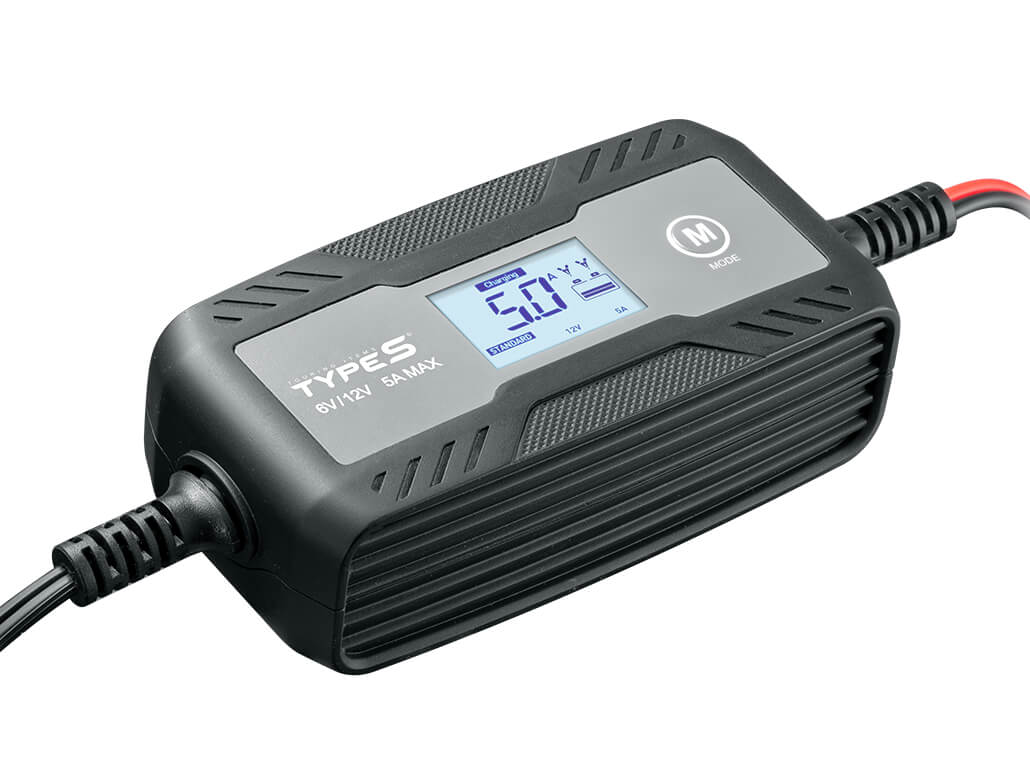

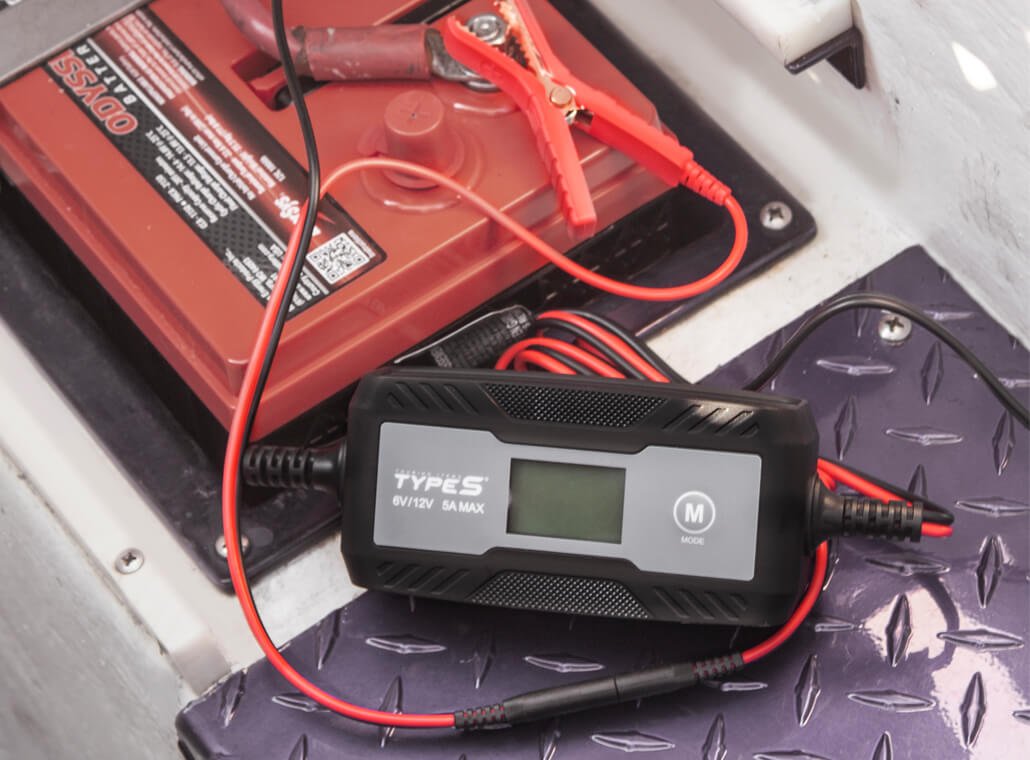

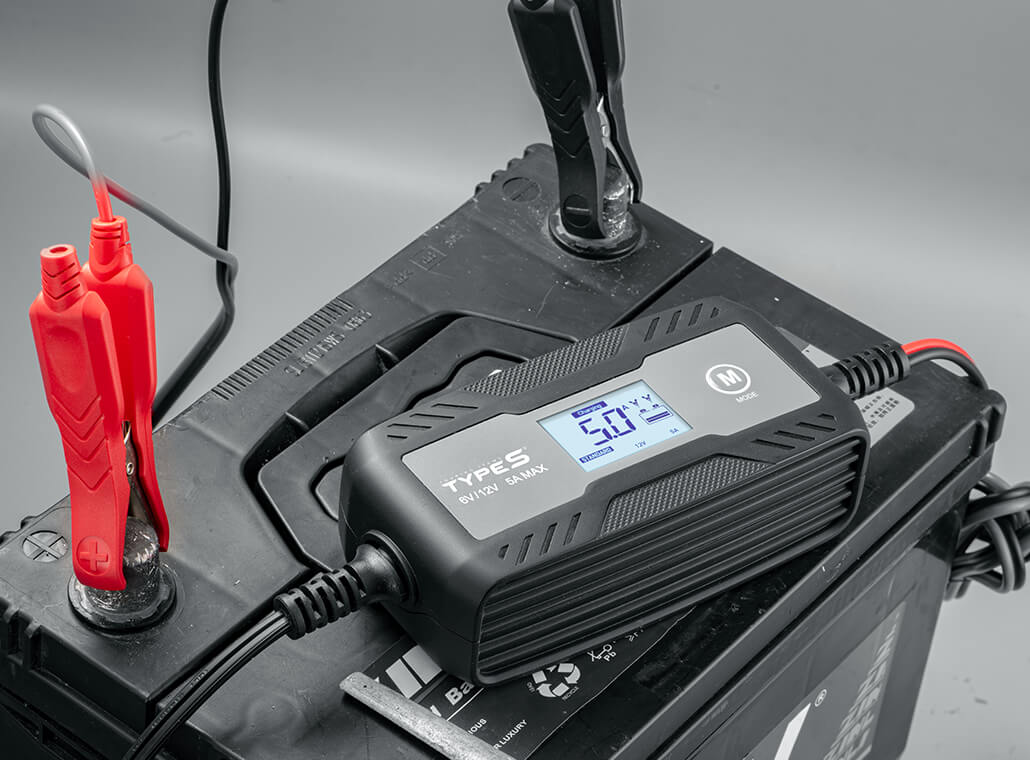

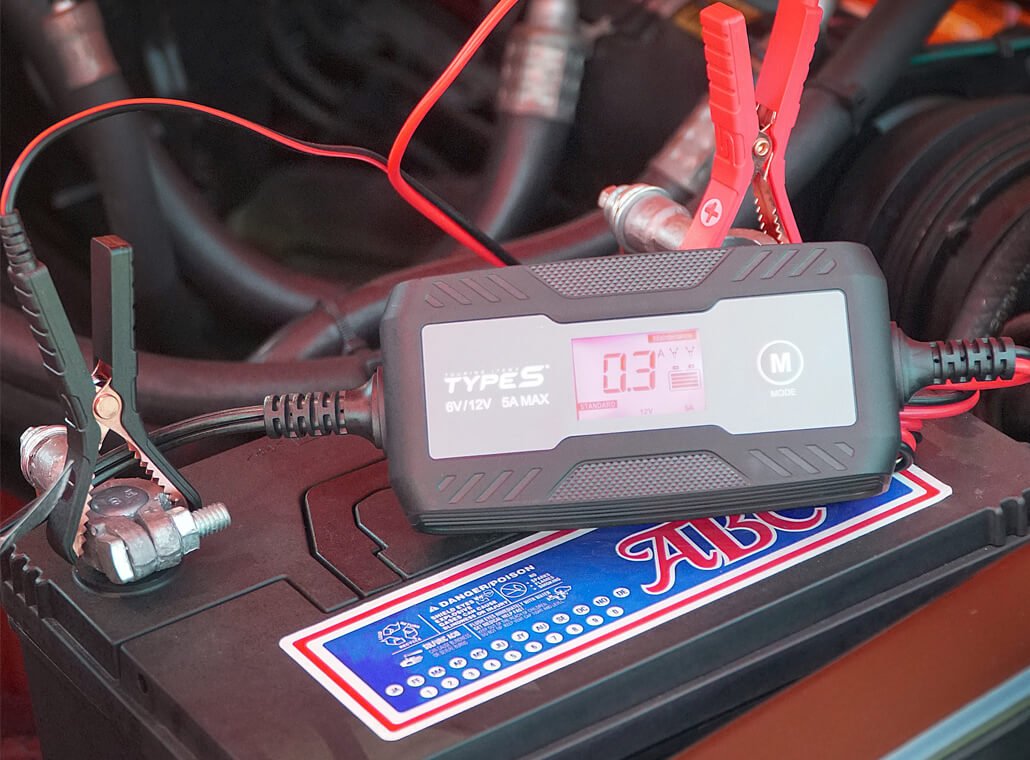

TYPE S 5A Battery Charger and Maintainer

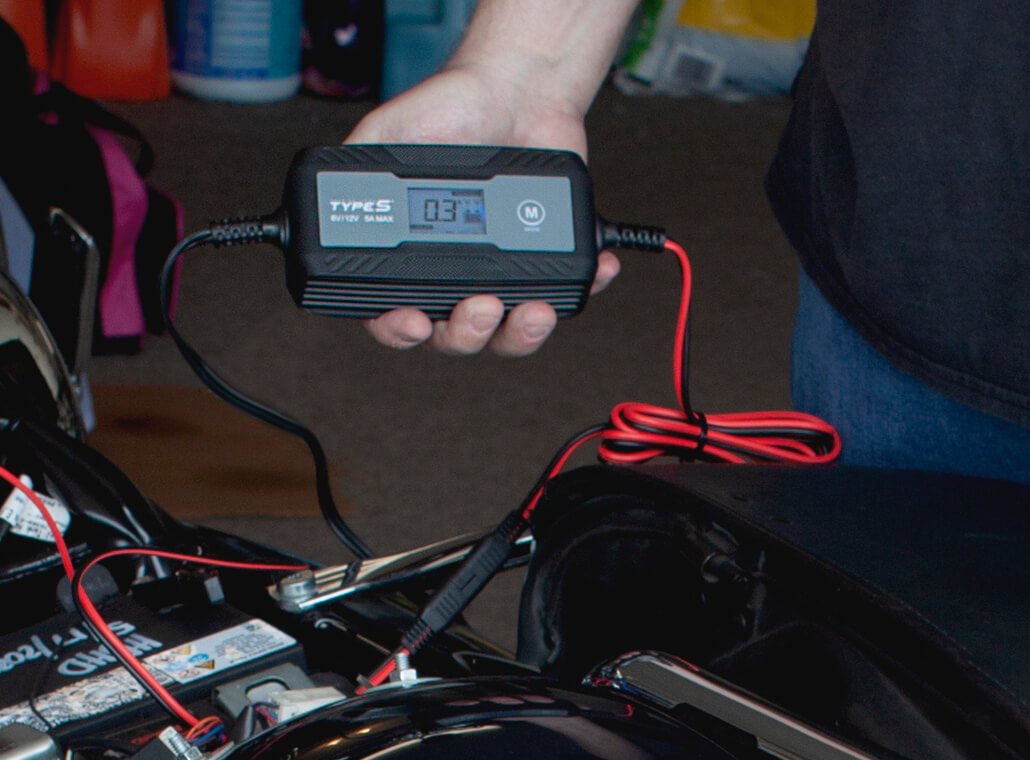

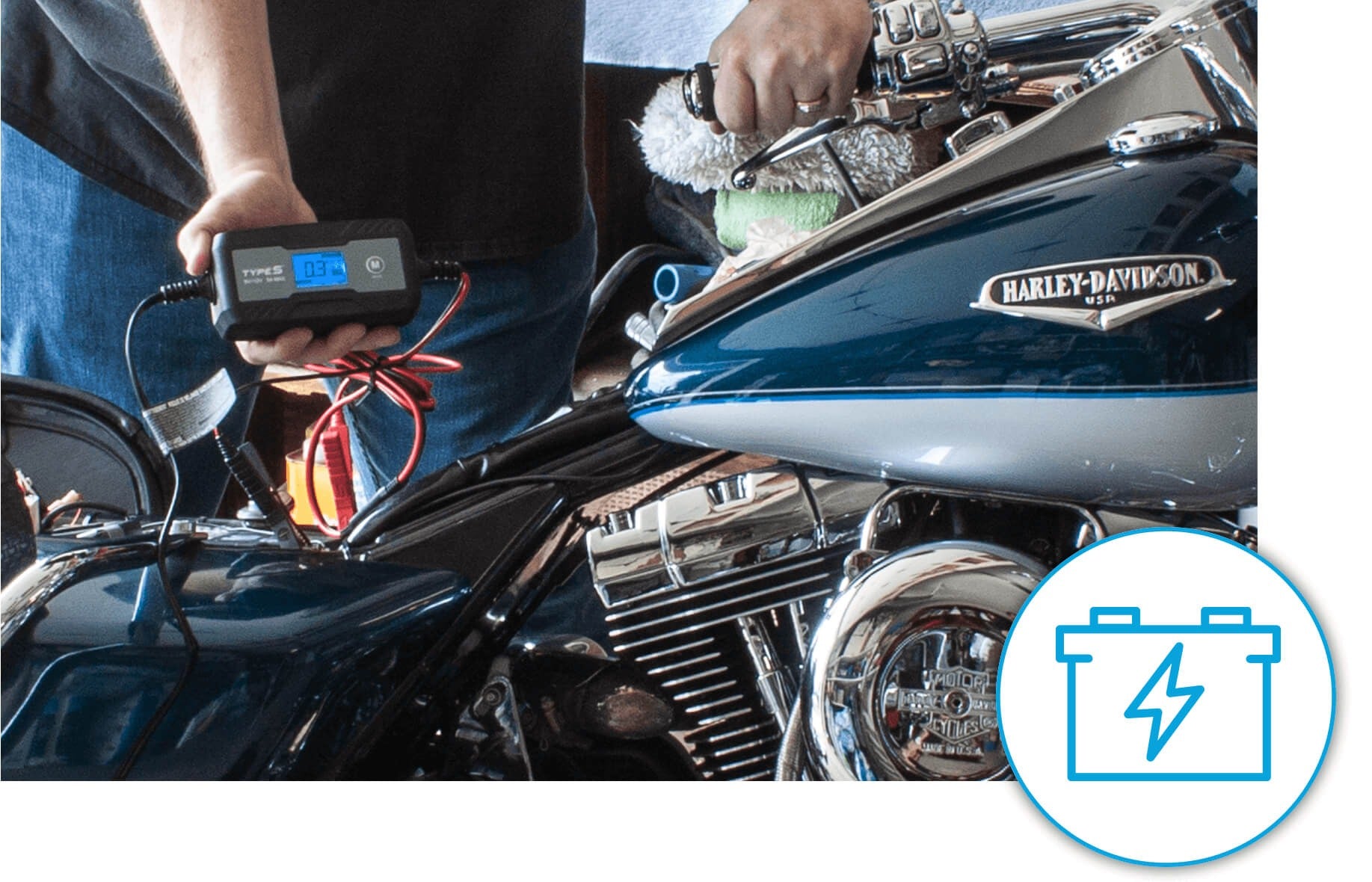

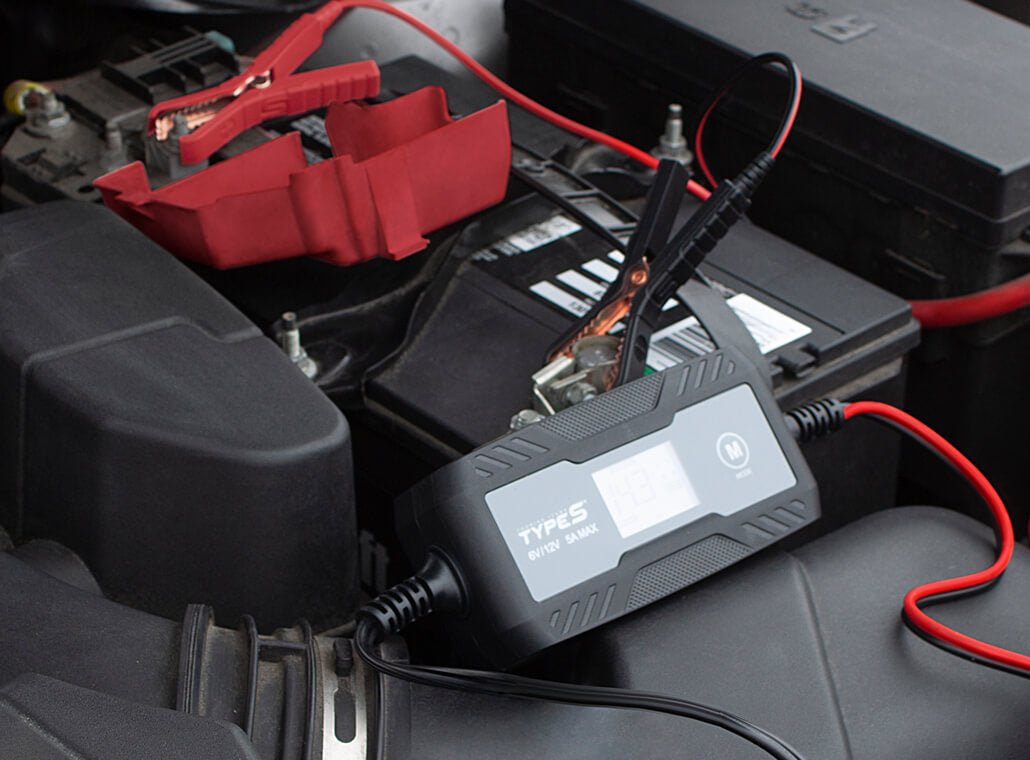

The TYPE S 5A Battery Charger and Maintainer will keep your stored vehicle's battery charged and maintained. Charge standard lead-acid, GEL, AGM, and lithium-ion (LiFePO4) batteries at 6V or 12V. Easily keep vehicles such as classic cars, trucks, motorcycles, RVs, UTVs, and more charged year-round. Advanced battery recovery mode efficiently repairs and restores impaired battery cells. Battery charger includes SAE connectors.

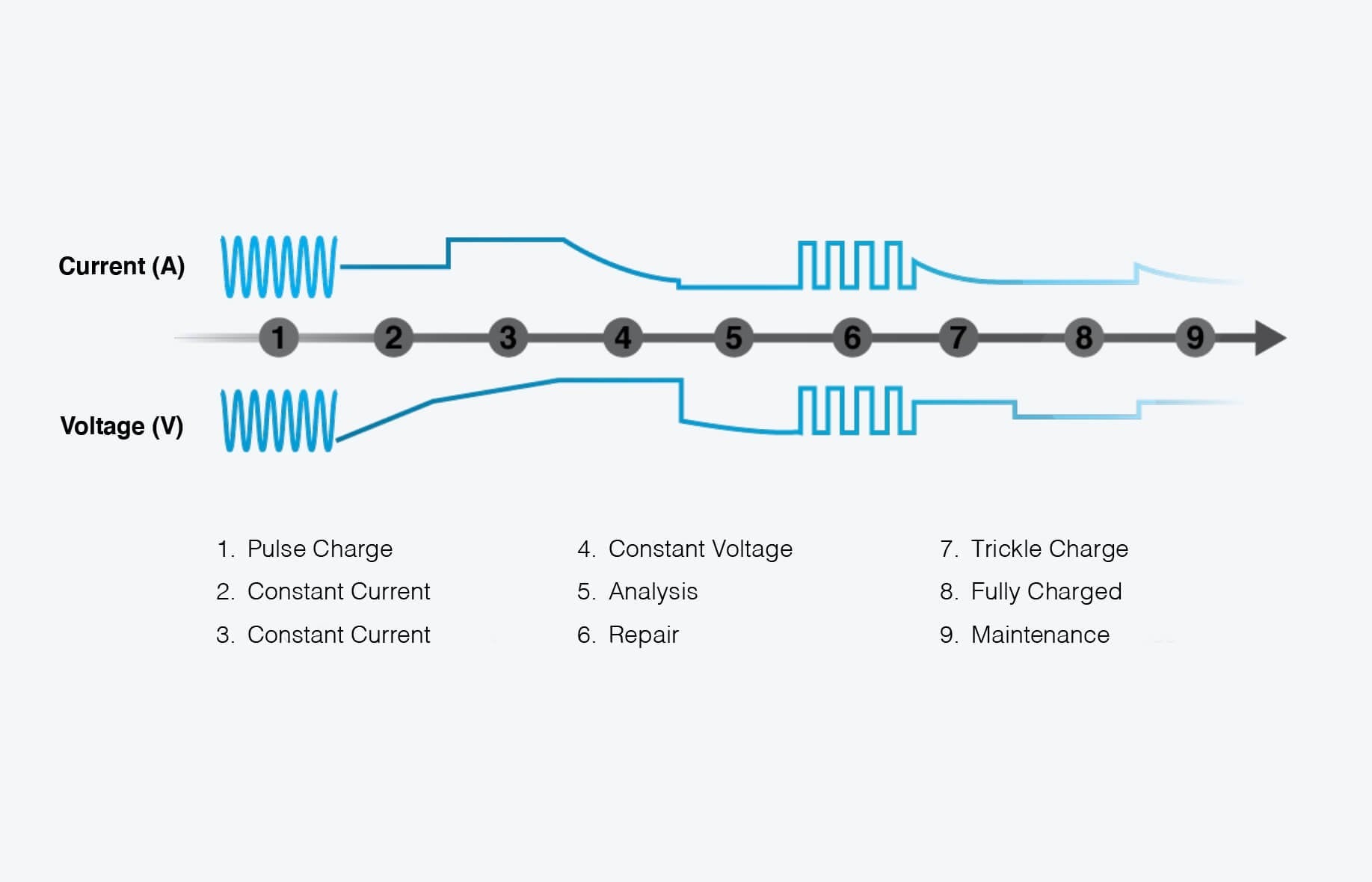

The embedded smart microprocessor performs battery charging and maintenance in 9 intelligent charging stages.
Automatically detects and charges batteries as low as 0.5V.

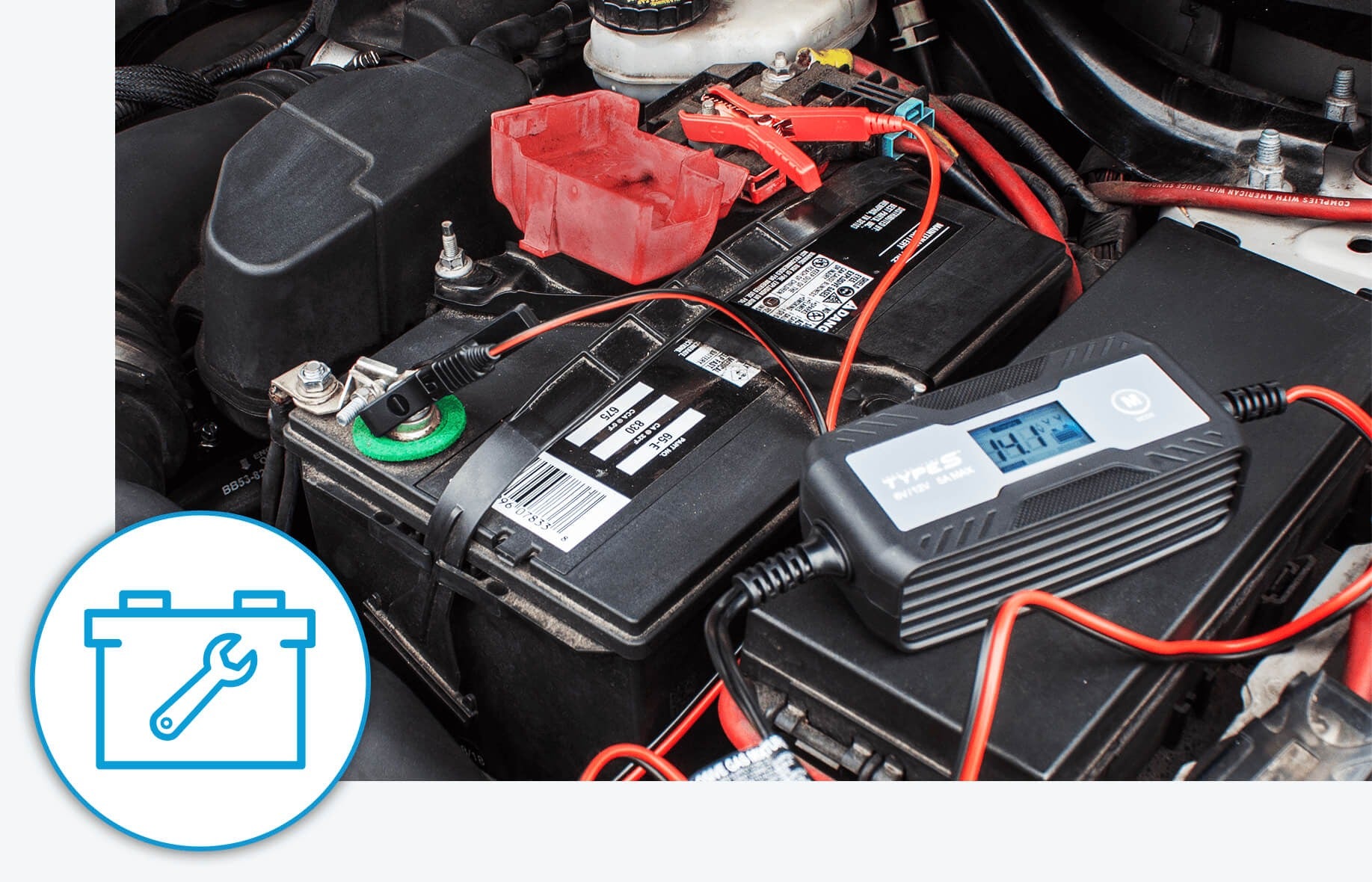

Efficiently repairs and restores impaired battery cells.

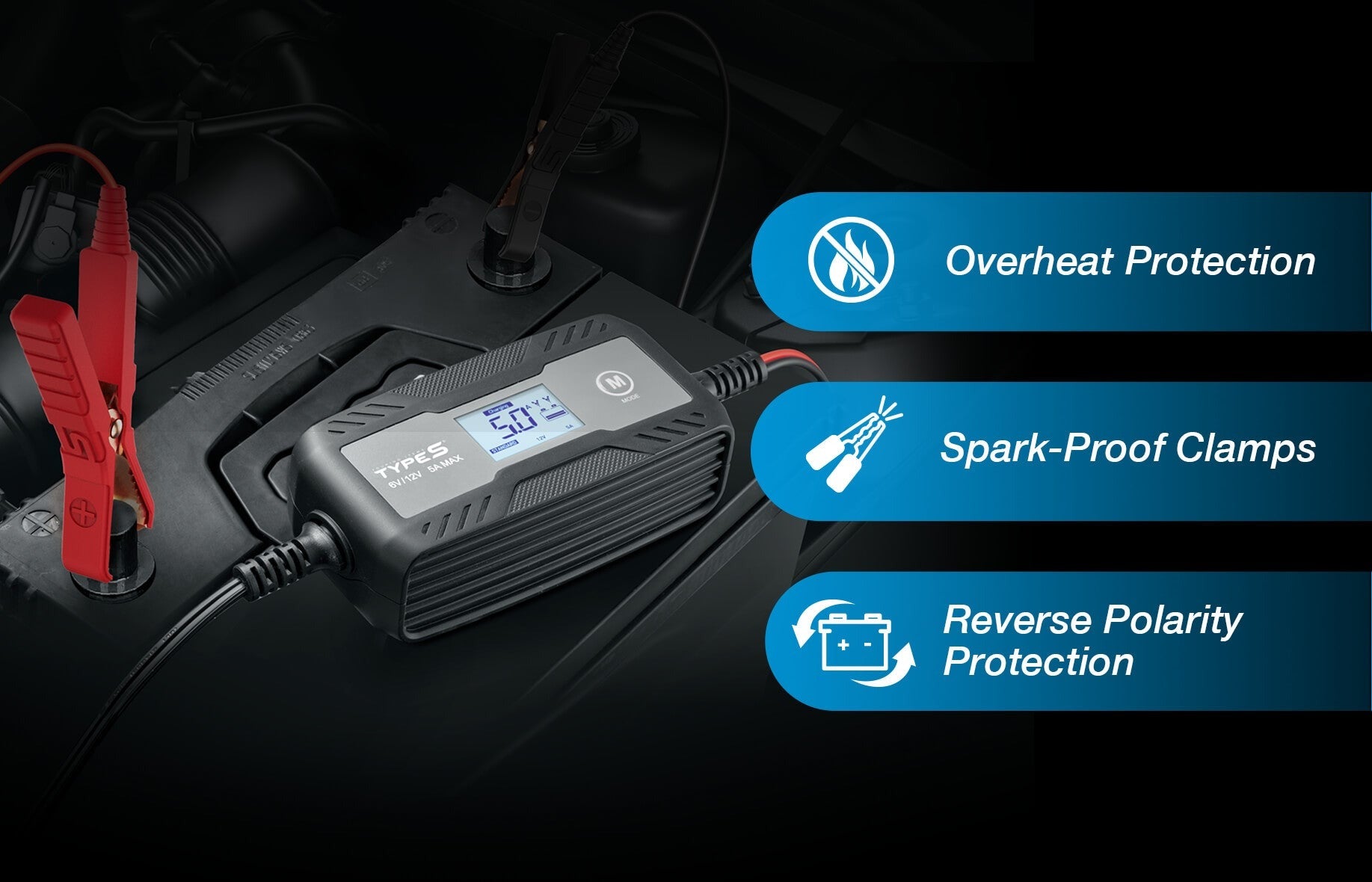

Designed with reverse polarity protection, overheat protection & spark-proof clamps.
Safely trickle-charge batteries in stored vehicles and equipment including boats, snowmobiles, caravans, and lawn tractors.
The embedded smart microprocessor performs battery charging and maintenance in 9 intelligent charging stages.
Automatically detects and charges batteries as low as 0.5V.
Efficiently repairs and restores impaired battery cells.
Designed with reverse polarity protection, overheat protection & spark-proof clamps.
Safely trickle-charge batteries in stored vehicles and equipment including boats, snowmobiles, caravans, and lawn tractors.
FAQ
What types of vehicle does this charger compatible with?
This unit charges and maintains cars, classic cars, motorcycles, lawnmowers, ATVs, tractors, trucks, SUVs, boats, sport cars and more as long as the vehicle uses 6V or 12V battery.
What kind of battery types supported by this model?
This model supports 6V or 12V Lead-Acid, GEL, AGM and Lithium ion (LiFePO4) batteries.
What is the battery capacity range supported?
Up to 120 Ah, it also maintains all battery sizes.
How do I use this unit for semi-permanent charging?
This unit comes with ring terminals with standard SAE connector. By swapping the detachable clamps with ring terminals, the unit can be used for semi-permanent charging.
How to restore damaged and sulphated battery?
The repair mode in this unit is designed for 12V LEAD-ACID BATTERIES ONLY. It is a battery recovery mode for repairing & restoring damaged, stratified and sulphated batteries.
Can I charge very low voltage battery with this unit?
Yes, Push Mode in this unit is designed for charging batteries with voltage in between 0.5V to 3.75V. The battery will be charged with maximum current of 0.5A until the voltage is up to 3.75V and it will enter the selected charge mode for charging onwards.
Product specification
Length: 5.5 in / 140 mm
Width: 2.6 in / 66 mm
Height: 1.7 in / 43 mm
1.2 lbs / 523 g
Up to 120 mAh, maintains all battery sizes
Standard (Wet Cell / Flooded, SLA & Maintenance Free)
AGM, GEL, Lithium-ion (incl. LiFePO4)
100-120 VAC, 50-60 Hz, 95W
5A (6VDC), 5A/1A (12VDC)
<5 mA
0.5V (6VDC), 0.5V (12VDC)
-4ºF ~ 140ºF / -20ºC ~ 60ºC
Ring Terminals include 10A Fuse
SAE
IP 65, Water-resistant
AC57881-96 (UPC 643334578816)
In the Box
- 5A Battery Charger and Maintainer
- Battery Clamps
- Ring Terminals (With SAE connectors)
- User Manual
