TYPE S Wireless & Solar Powered HD Backup Camera with 5" Monitor
Introducing the ultimate wireless solution for enhanced rearview safety: the TYPE S solar-powered add-on HD backup camera and monitor set. This innovative package combines the power of solar technology, high-definition imaging, and wireless connectivity to provide you with a seamless and reliable backup camera system. The solar-powered camera effortlessly captures a wide-angle view of your vehicle's rear surroundings, delivering crystal-clear images and ensuring you never miss a detail while reversing or parking. The wireless connectivity between the camera and the monitor eliminates the need for complex wiring, making installation quick and hassle-free. The included monitor allows for real-time viewing, providing you with instant visual feedback for confident maneuvering. With this solar-powered add-on HD backup camera and monitor wireless set, you can enjoy the benefits of enhanced safety and convenience, all while reducing your carbon footprint. Say goodbye to tangled wires and hello to a smarter, greener driving experience.

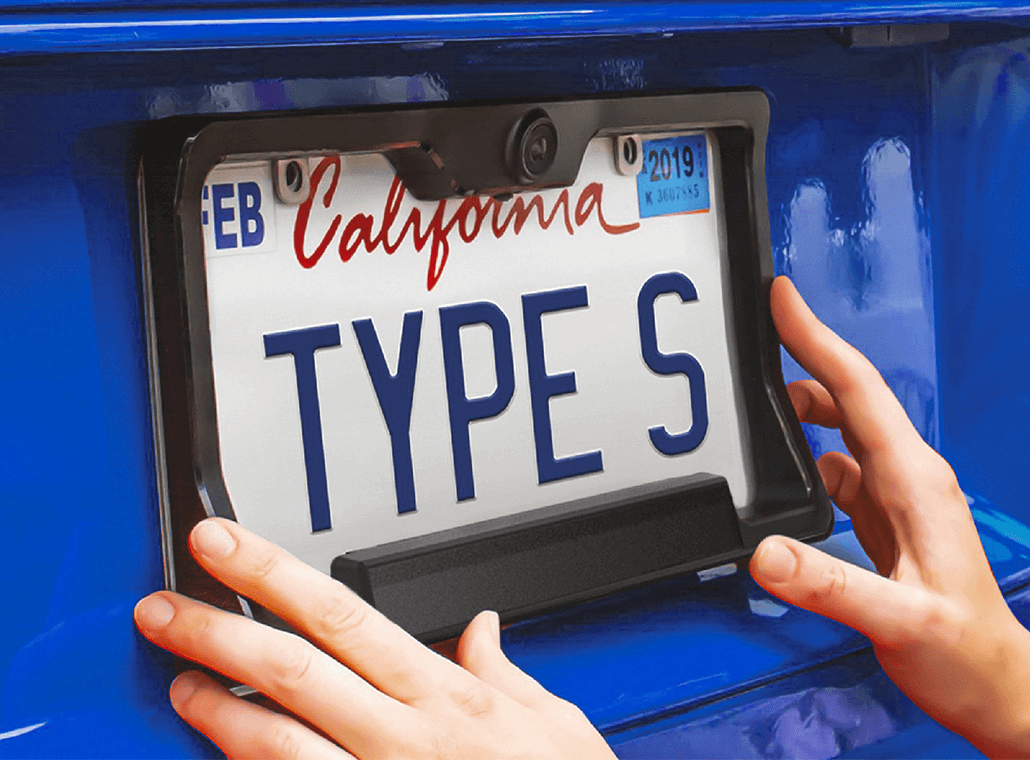

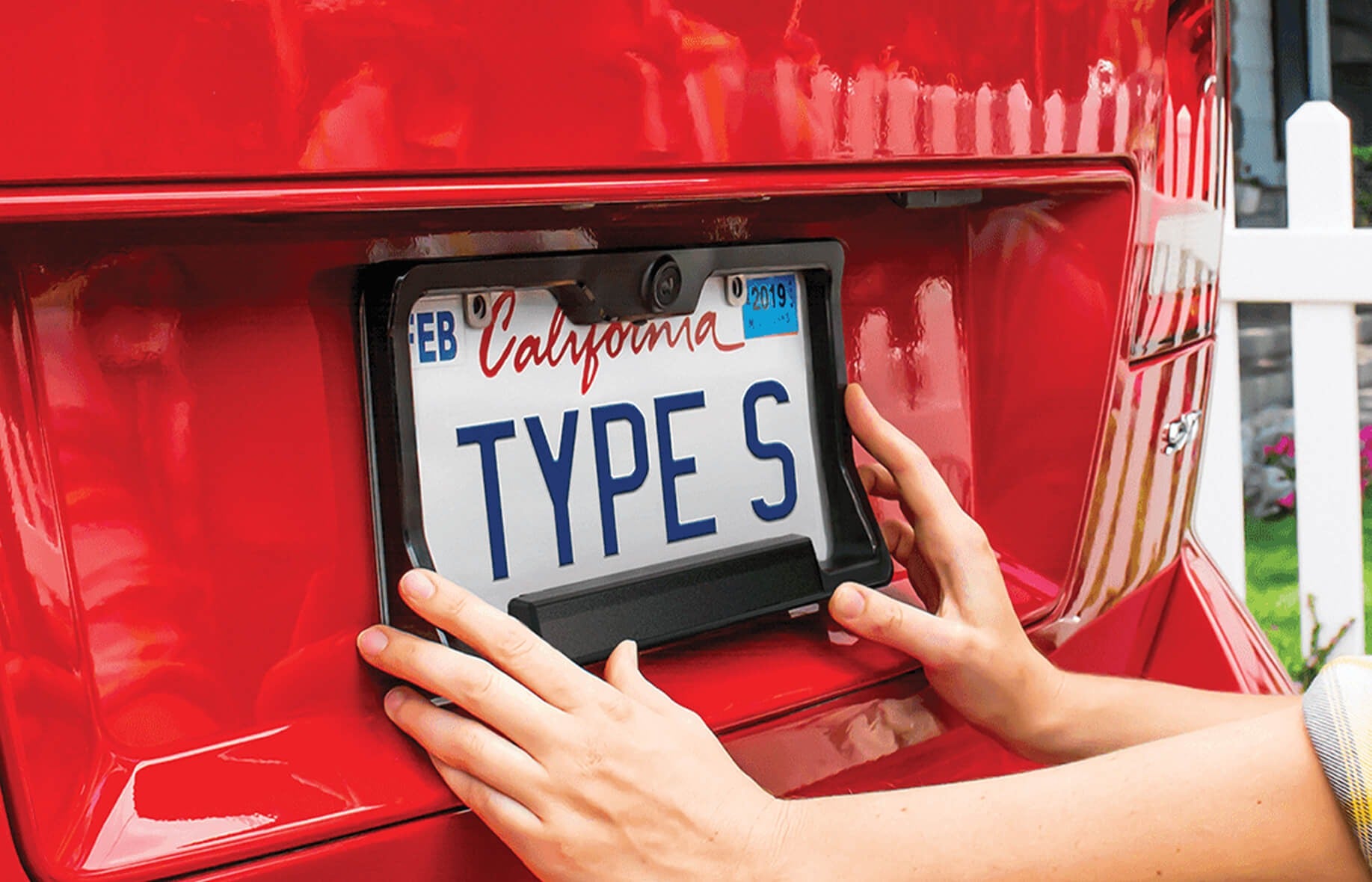

The easiest installation you’ll ever find. This TYPE S HD backup camera charges itself through its built-in solar panels, no need to hardwire it into anything. What’s more, the transmission between the HD cam and the monitor is completely wireless so there won’t be a cable running through your vehicle.

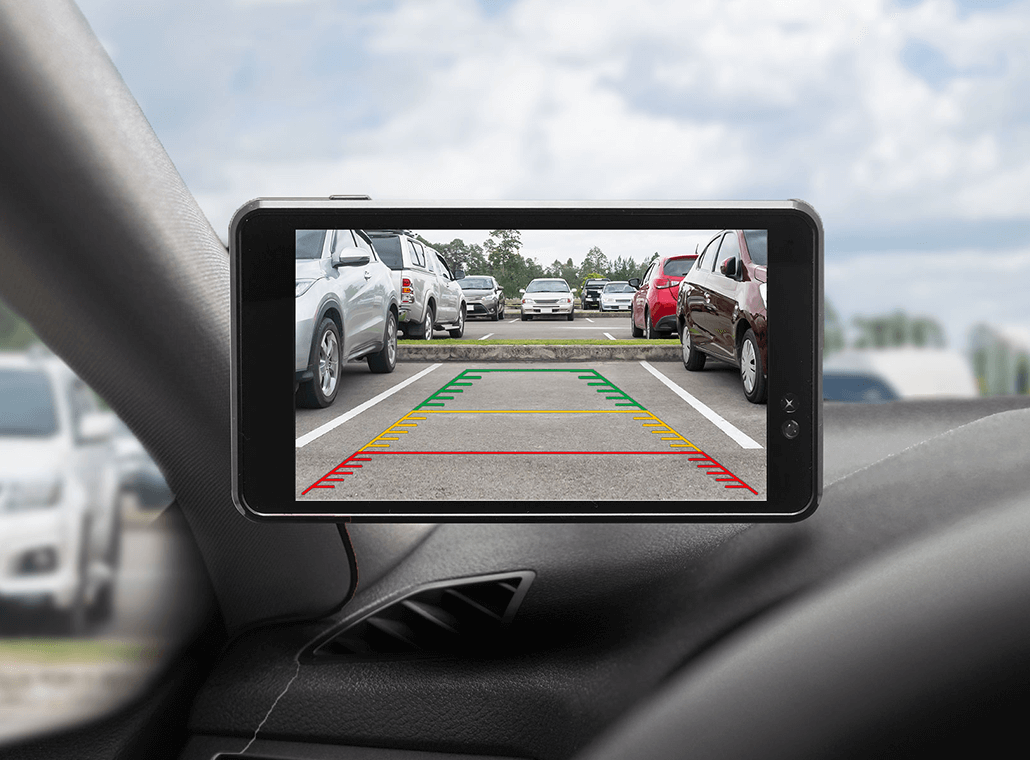

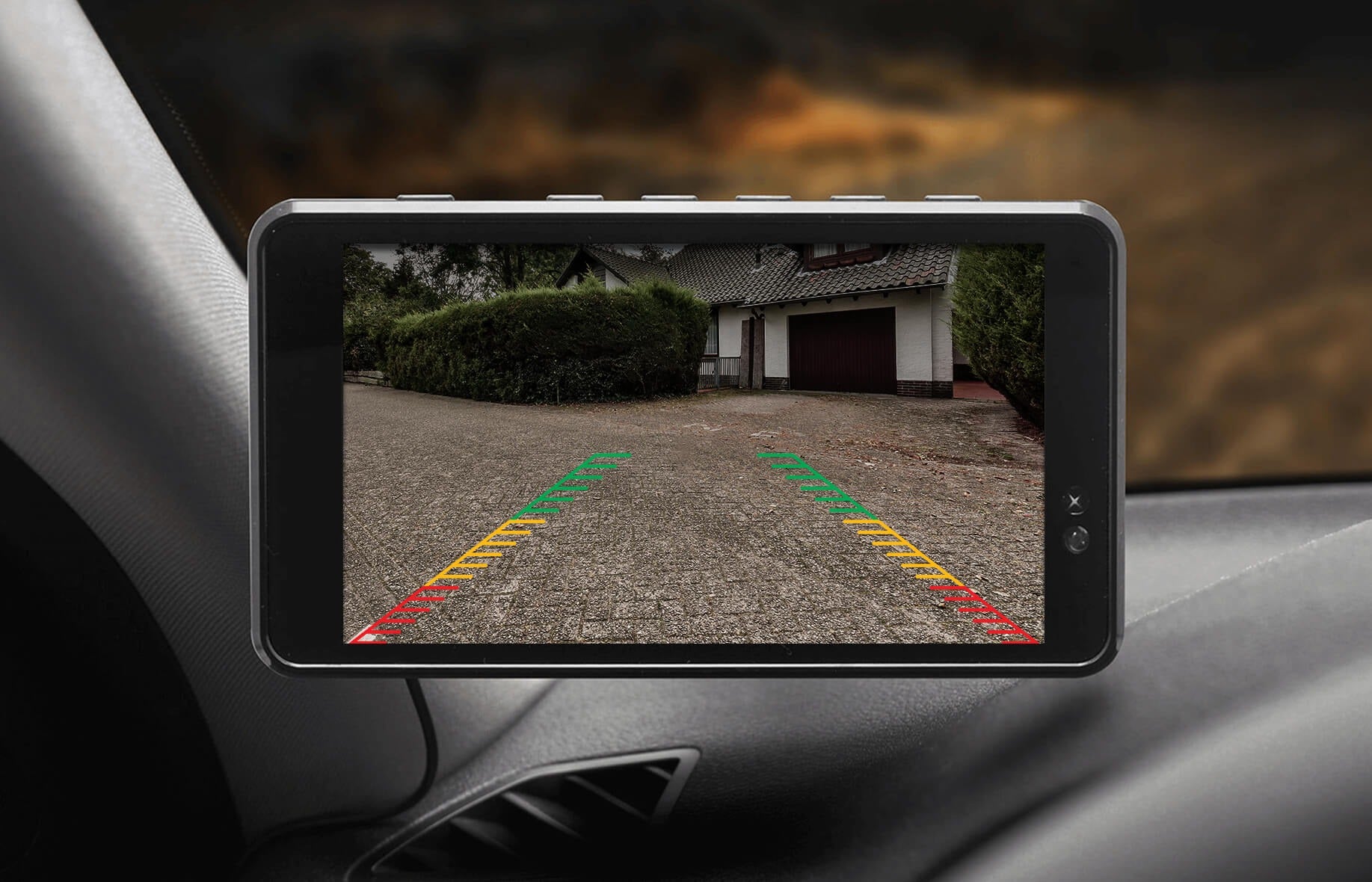

720P HD resolution displayed on the 5” inch monitor. See the entirety of the wide 160-degrees view in real-time and in superb clarity. With the integrated digital HD image processor in this excellent TYPE S cam, you'll get superior night vision up to 30 feet even in extreme-low light environments.

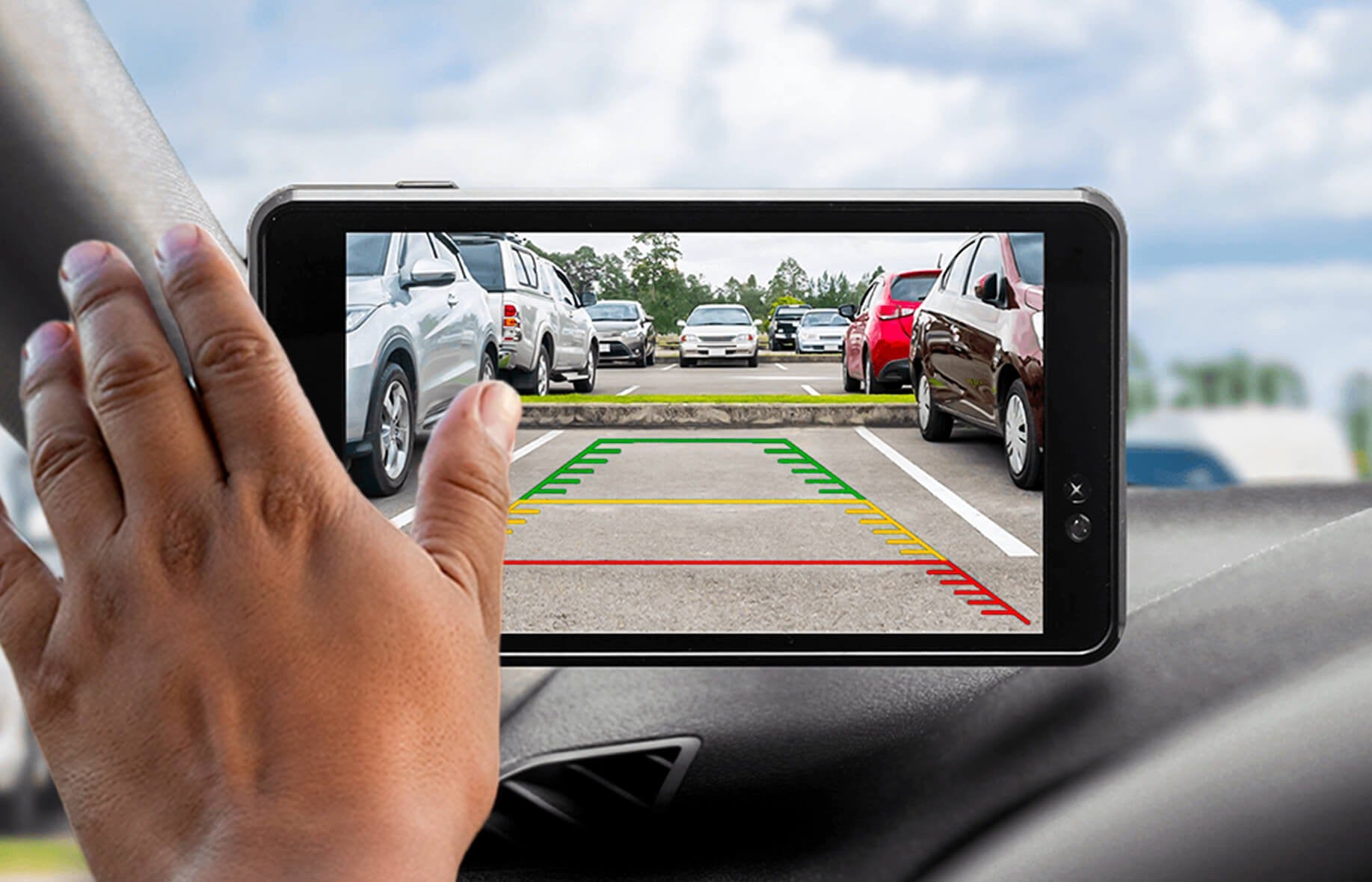

This portable backup camera is designed with you and the passengers’ safety in mind. Wake the camera up without having to take your eyes off the road, anytime you want. All you need to do is a simple wave of hand in front of the monitor and real-time HD 720P footage will instantly be shown on the display.
Parallel parking is no longer a headache; the TYPE S wireless backup cam not only comes with crystal clear 720P HD resolution, but also accurate parking assistant gridlines that will help get you into even the tightest spots on the busiest streets within seconds.

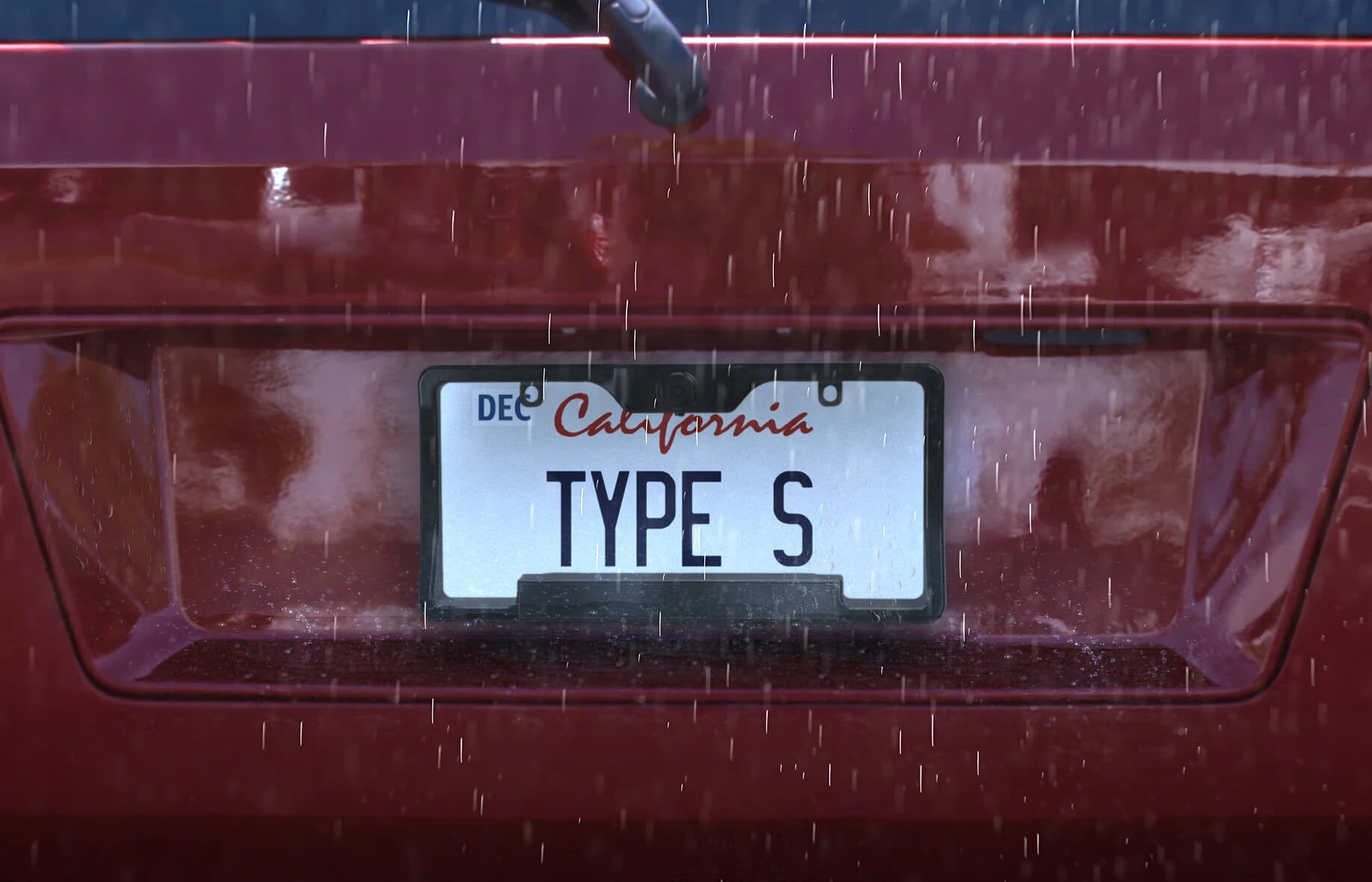

The Hi-Definition backup camera is engineered with extremely durable IP67 material that’s built to withstand any kind of condition; rain, snow, or heat… The suction cup of the monitor is designed to stick tightly on your windshield, allowing you to safely focus on driving.
The easiest installation you’ll ever find. This TYPE S HD backup camera charges itself through its built-in solar panels, no need to hardwire it into anything. What’s more, the transmission between the HD cam and the monitor is completely wireless so there won’t be a cable running through your vehicle.
720P HD resolution displayed on the 5” inch monitor. See the entirety of the wide 160-degrees view in real-time and in superb clarity. With the integrated digital HD image processor in this excellent TYPE S cam, you'll get superior night vision up to 30 feet even in extreme-low light environments.
This portable backup camera is designed with you and the passengers’ safety in mind. Wake the camera up without having to take your eyes off the road, anytime you want. All you need to do is a simple wave of hand in front of the monitor and real-time HD 720P footage will instantly be shown on the display.
Parallel parking is no longer a headache; the TYPE S wireless backup cam not only comes with crystal clear 720P HD resolution, but also accurate parking assistant gridlines that will help get you into even the tightest spots on the busiest streets within seconds.
The Hi-Definition backup camera is engineered with extremely durable IP67 material that’s built to withstand any kind of condition; rain, snow, or heat… The suction cup of the monitor is designed to stick tightly on your windshield, allowing you to safely focus on driving.
FAQ
Will this camera work with my truck?
This camera will work with trucks, however, some pickup trucks might require a special installation method to fit above the rear bumper. Please refer to the Instruction Manual.
Does the camera come pre paired to the monitor?
Yes, the camera is paired to monitor in default. Pairing instruction is written in user manual for reset or add-on camera setting.
Will this camera work with my trailer?
This camera may work with a trailer; however, it depends on what you are hauling: ATV / UTVs, a boat, tractor, etc. There could be interference if the haul is large or dense. The wireless Flex Mount Backup Camera with 5” Monitor may be a better option of you are hauling cargo on a regular basis because it will be wired in to stable power source.
How long does the camera take to charge?
It should take about 4-6 hours to fully charge the camera using a USB cable.
What is the wireless frequency?
The camera is transmitted under 2.4GHz Radion Frequency.
Can I add another camera to the monitor view?
No, to add another camera to the monitor view, please purchase our newer model, the TYPE S Wireless Solar-Powered Backup Camera with Extended Battery (BT530033) instead.
What is the distance the camera can be from the monitor?
Maximum Signal Range: 30 feet/10 meters (without interference or obstruction)
What is battery capacity and how long does camera take to charge? Do I need to charge the camera before installing it?
The camera comes with a 2,200 mAh rechargeable battery, please fully charge your camera for 4~6 hours using the USB cable included in package. After installation, the camera can be charged by solar panel based on 2 hours of full sunlight exposure with 10 triggers consumption per day.
Do I need to charge my Backup Camera before use?
We recommend to fully charge the Backup Camera for first time. Our packaging come with a microUSB cable for charging by USB adaptor.
After installation, the Backup camera can be charged with Solar panel. Make sure your car is not parked at your garage or shaded location. Try to have 2 - 4 hours of good sunlight to recharge the camera each day.
How do I pair the camera?
Fully charge overnight with provided MicroUSB charging cable. Once charged, press and hold the button below the camera on the license plate frame for 2-seconds to Power On the device. Then press and hold the same button for 5-7 seconds to enter Pairing Mode. The Blue LED will flash, then go to your monitor Menu Setting > Pair Camera.
Watch our How to Pair video below.

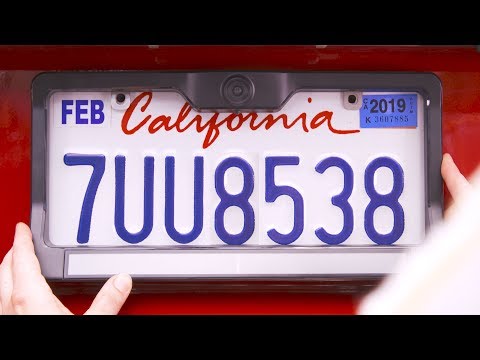

Dean's Garage - How to pair my Type S solar backup camera with the monitor (BT56208, BT56617)
Why doesn't my monitor wake up?
The monitor has motion detection sensors. The sensitivity can be adjusted in the monitor’s Motion Detection Settings. Please refer to the Instruction Manual.
Why did my monitor turn off?
By default, the monitor goes to sleep after 45-seconds of inactivity. This Operation Time can be adjusted in the monitor’s Settings. Please refer to the Instruction Manual.
Camera battery not charging with solar.
Make sure your car is not parked at your garage or shaded location. Try to have 2~4 hours of good sunlight to recharge the camera each day.
My camera flashes Red LED continuously.
This is low voltage protection, please make sure to recharge your camera from solar or USB cable.
Why did my monitor disconnect / unpair with my camera?
If your monitor disconnects from your camera after successful pairing, the voltage from your car is likely unstable. Please follow theFirmware Update instructionsto upgrade your monitor's firmware.
Product specification

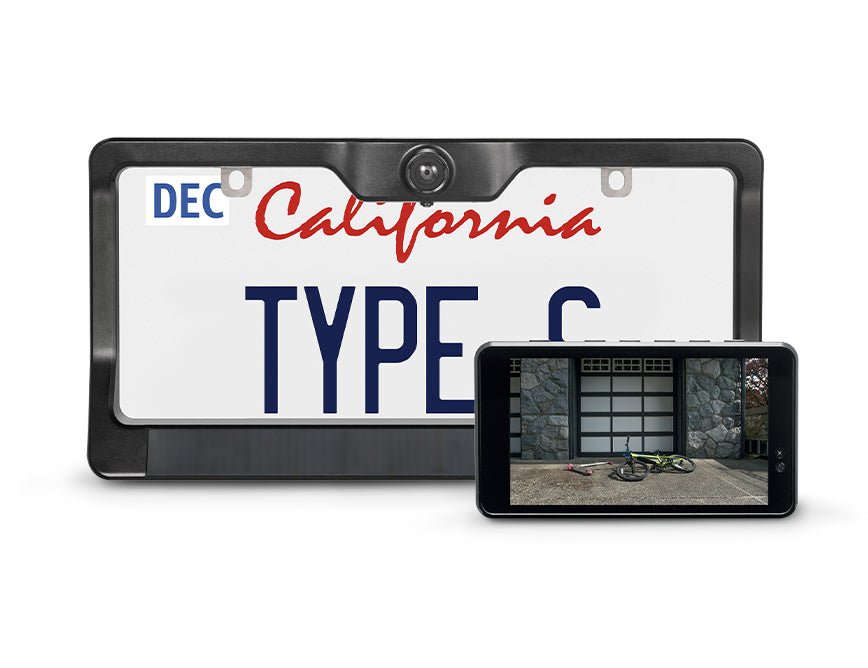

The TYPE S Wireless Solar-Powered HD Backup Camera is equipped with a 5" motion-activated LCD monitor and mounting hardware. A simple wave of the hand wakes up the camera and turns on the monitor screen, showing a crisp rearview day or night. This wire-free license plate camera is a breeze to install; no need to run power to the taillights, or through the vehicle.
Length: 1.14 in / 29 mm
Width: 12.24 in / 311 mm
Height: 5.98 in / 152 mm
2.4 GHz
Monitor: DC 12V / 24V
Backup Camera: DC 5V
+14°F ~ +122°F / -10°C ~ +50°C
2200 mAh
30 ft / 10 m (without Interference or Obstruction)
BT56208-1 (UPC 643334562082)
In the Box
- Solar Powered Quick-Connect Wireless Backup Cam
- 5" Hand Gesture Activated Monitor
- Magnetic Windshield Mount
- USB Charging Cable
- 12V/ 24V Power Adapter
- Installation kit
- Quick Install Guide
- Instruction Manual
