CHARGEEV 40A Level 2 Charger, Compatible with All EV Models
Introducing the TYPE S Home EV Charging Station - Redefining convenience and safety for your electric vehicle

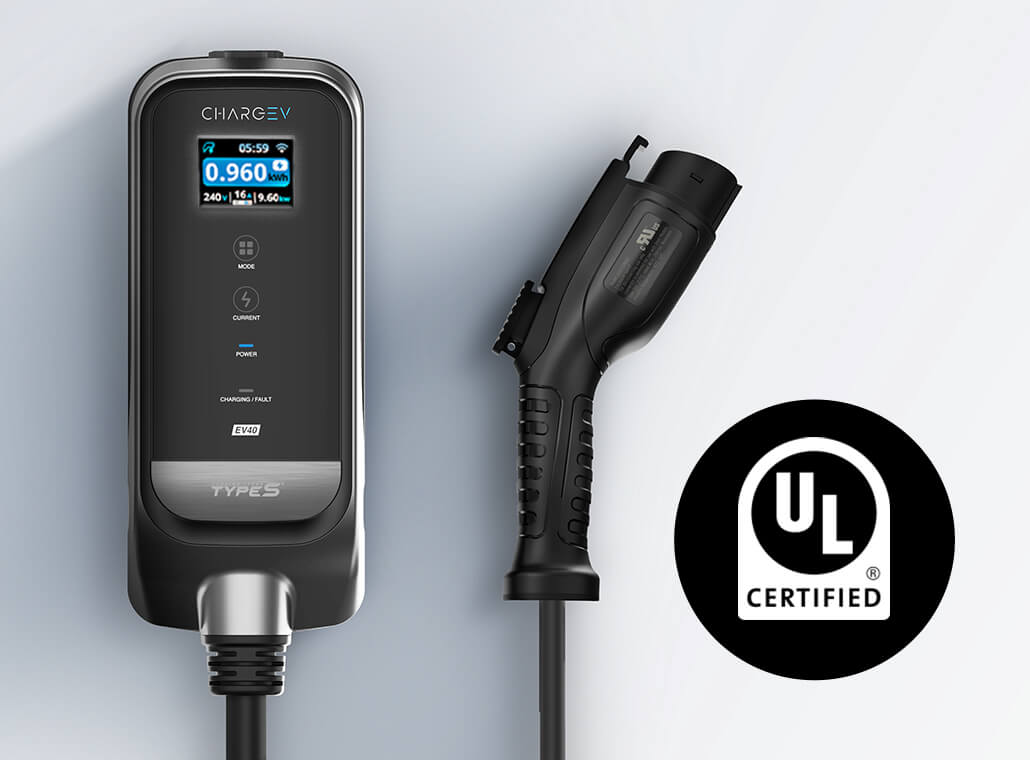

Charge smarter and drive further with the TYPE S Home EV Charging station. Delivering up to 40A of power, this advanced charger is UL certified equipped with multiple temperature and voltage protectors. Monitor, schedule and precise charge your vehicle all through the Type S Mobile app. Empowering you to customize your charging experience like never before.

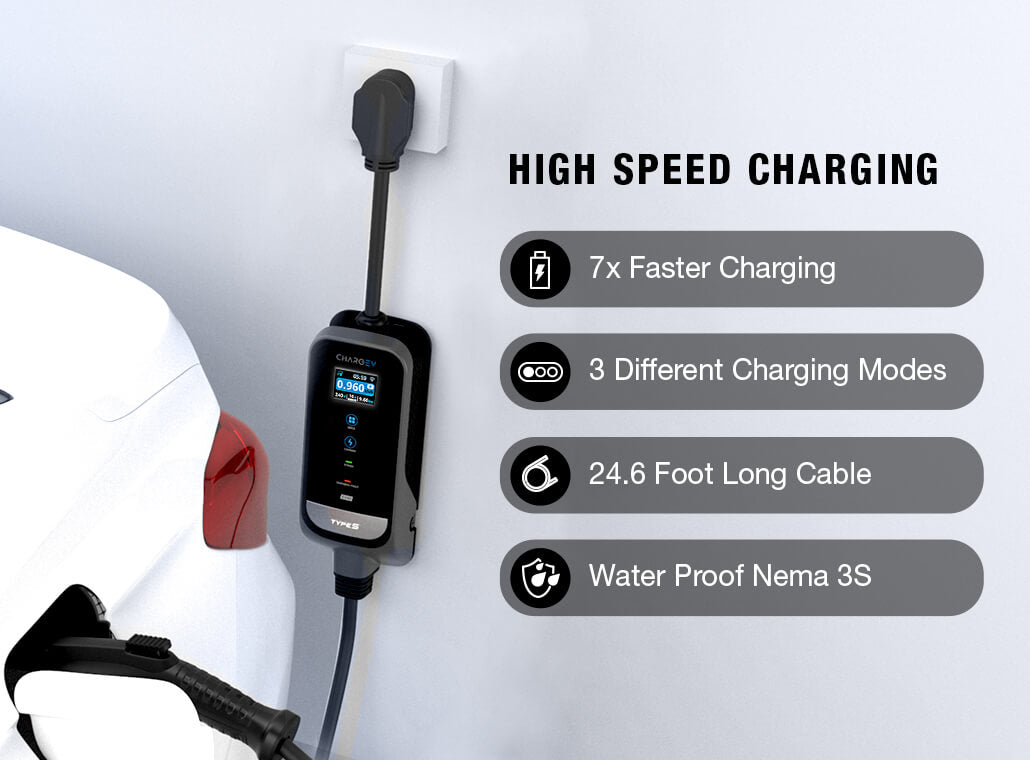

Experience lightning-fast charging with our powerful 40A EV charger. Get back on the road quicker than ever.
Experience lightning-fast charging with our powerful 40A EV charger. Get back on the road quicker than ever.

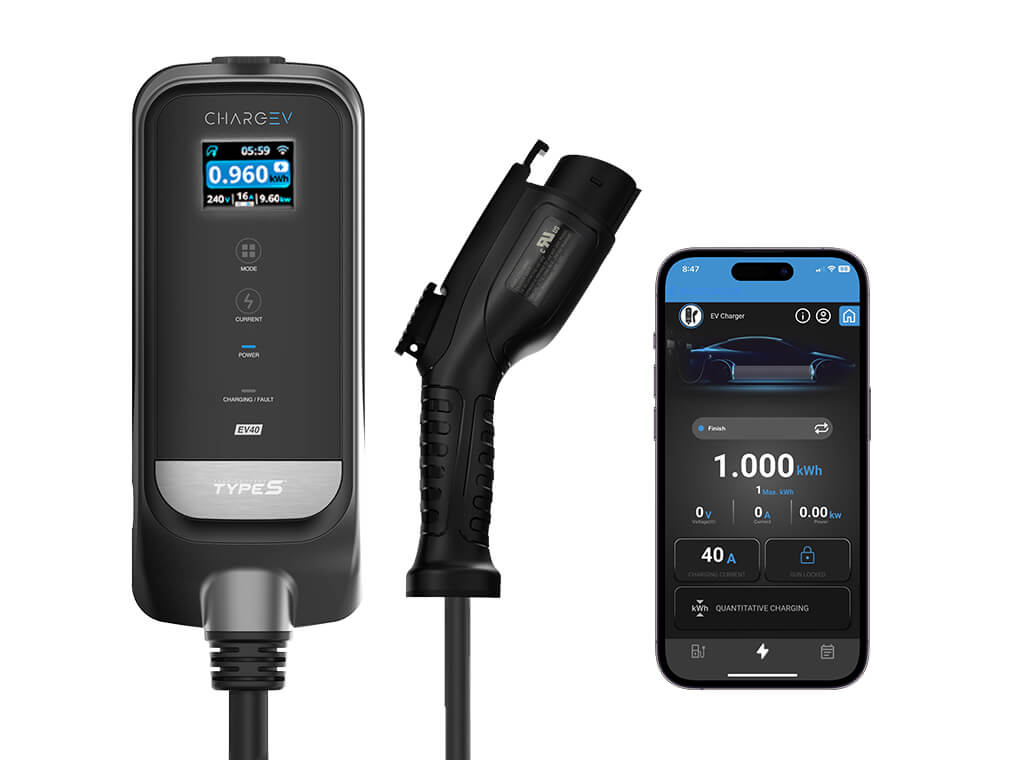

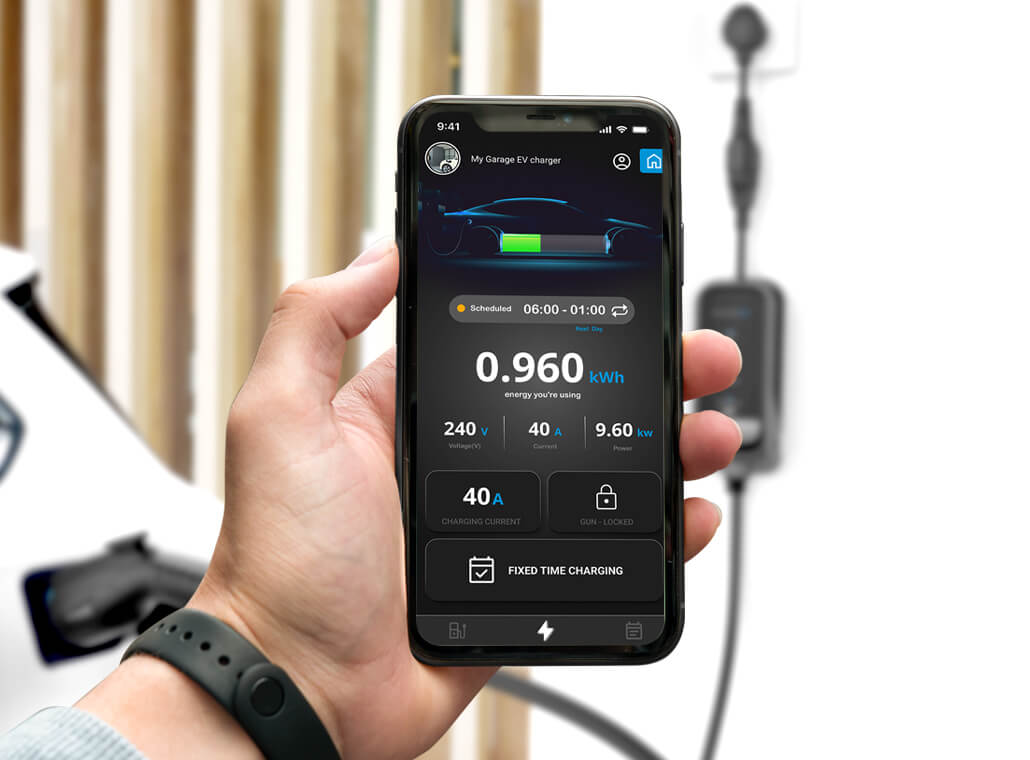

Seamlessly manage your charging. Scheduled charging, Precise charging, and monitor it all in real time all from your phone.
Charge with confidence knowing your EV is protected by 6 advanced safety features.

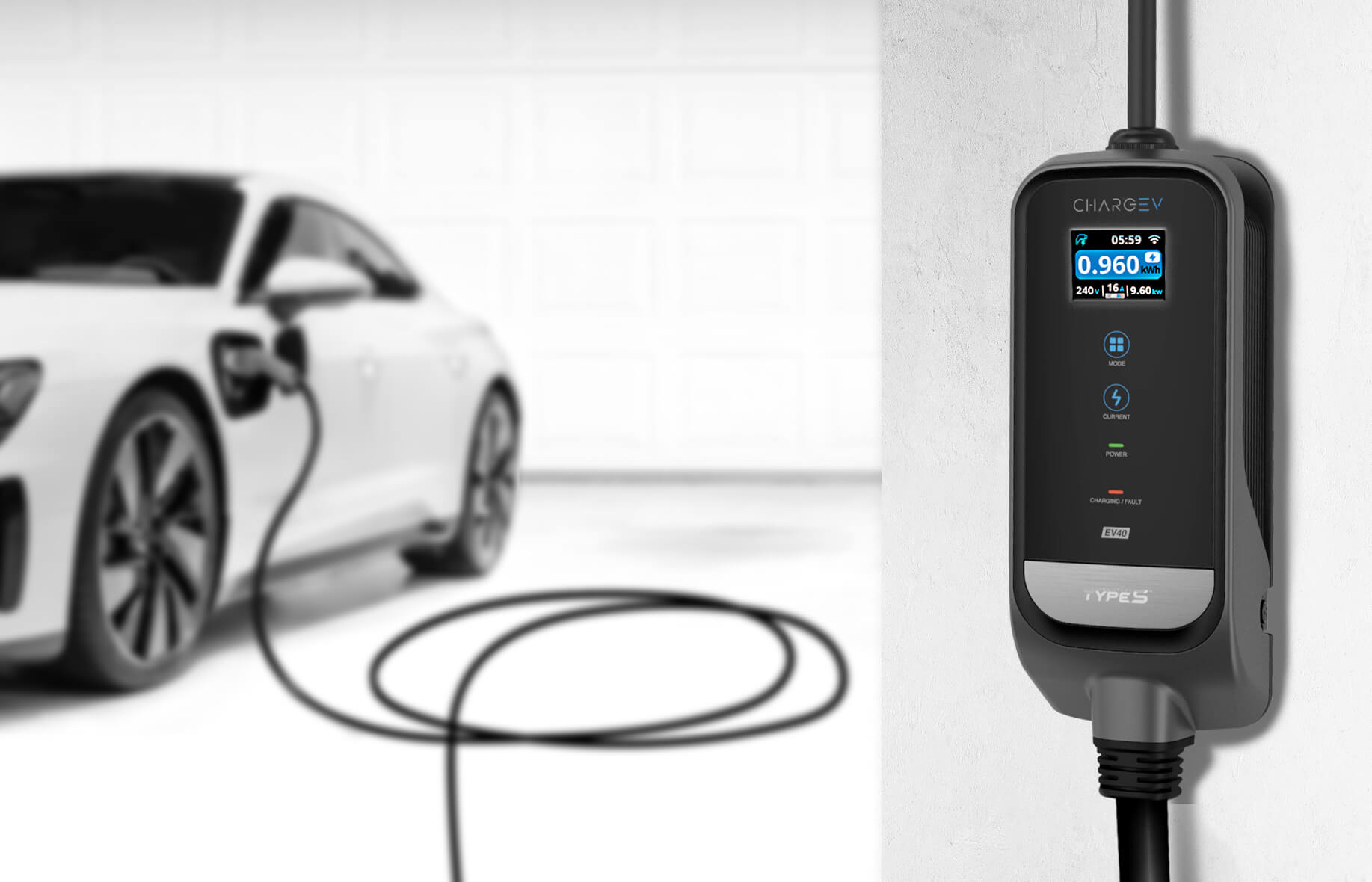

Our 40A Charger comes with a 24.6-foot cable, offering flexibility you need.
Our 40A Charger comes with a 24.6-foot cable, offering flexibility you need.
FAQ
What is a level 2 EV charger?
A level 2 charger operates on a 240 Volt circuit that provides 9 times faster charging.
How much faster is Level 2 Charging compared to level 1
It is 9 times faster than level 1 charging.
What is Quantitative Charging?
Quantitative Charging allows you to choose how many kilowatts you want delivered to your EV. It’s easy to use if you know your EV’s battery capacity.
Do I need to upgrade my home’s electrical system for a level 2 Charger
You may need to upgrade your electrical panel or install a dedicated 50 AMP Circuit. It’s best to consult with a licensed electrician.
Can I install a Level 2 Charger myself?
Professional installation is recommended due to high voltage and ensures the charger is compliant with local electrical codes.
Is a permit required to install a Level 2 Charger?
For indoor garage use, it’s not required. Check with your local HOA for specific requirements.
How is your charger compatible with Tesla?
It is completely compatible, just use the adapter that Tesla provides and you’re ready to charge.
Is your charger compatible with all EV’s?

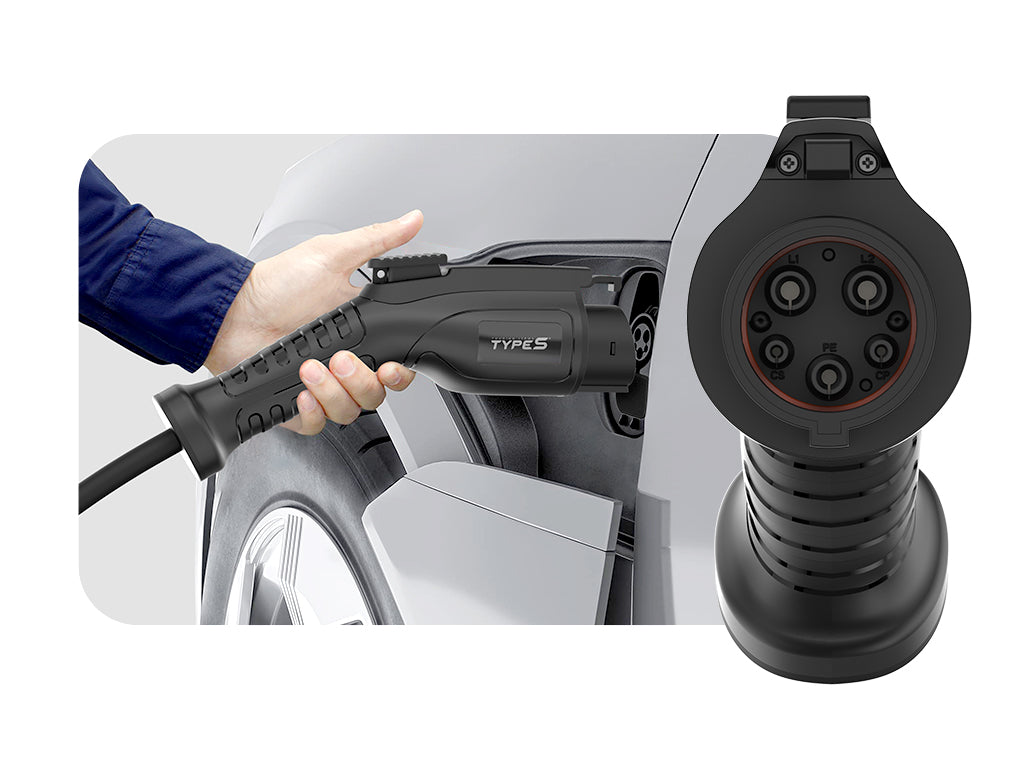

Yes, our charger is compatible with all EV’s sold in North America using the standard J1772 connector. Tesla vehicles require the adapter.
How much does it cost to install a Level 2 Charger?
It can range from 500 – 3000 dollars depending on how long the circuit board runs to connect to the 240 outlet.
Can it be installed indoors or outdoors?
Yes our charger can be used outdoors as it is IP55 Waterproof.
Can this charger be used with a 30A 14 – 30 Outlet?
Our charger uses a 14-50 plug so it’s best you use a 14 – 50 outlet. We also recommend a 50 Amp circuit.
Does this charger require a neutral wire for installation?
No, all you need is a Power drill for installation.
Can the charging speed be adjusted on this unit?
The charging speed can be adjusted both manually and via app.
Is it possible to schedule charging with this Unit?
It’s super easy to schedule using the TypeS Mobile app. Just schedule your charge and you’re ready to charge.
Product specification
4.8 x 2.8 x 12.8in (12.2 x 7.0 x 32.6cm)
13.89lb / 6.3kg
7.5m
9.6kW (Max.) 240V±15% AC@40A
240V ± 15% 60±10Hz Single Phase @8A/16A/32A/40A
50A
NEMA 14-50
SAE J1772
-22°F ~ 122°F (-30°C ~ 50°C)
-22°F ~158°F (-30°C ~ 70°C)
IP55-Waterproof
In the Box
- 1 x 40A Level 2 EV Charger
- 1 x Wall Mount
- 1 x J-Hook
- 2 x M3x5 C-Ring Screws
- 1 x Nozzle Dock
- 1 x Carry Bag
- 8 x M4 Wall Anchors
- 4 x PWA4x25 Screws
- 4 x KA4x25 Screws
